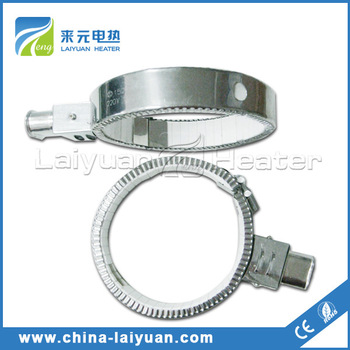

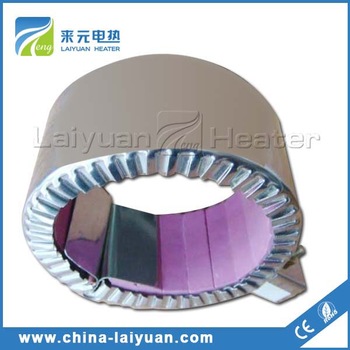

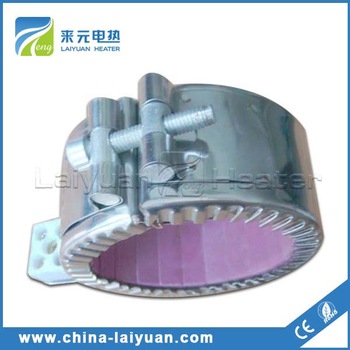

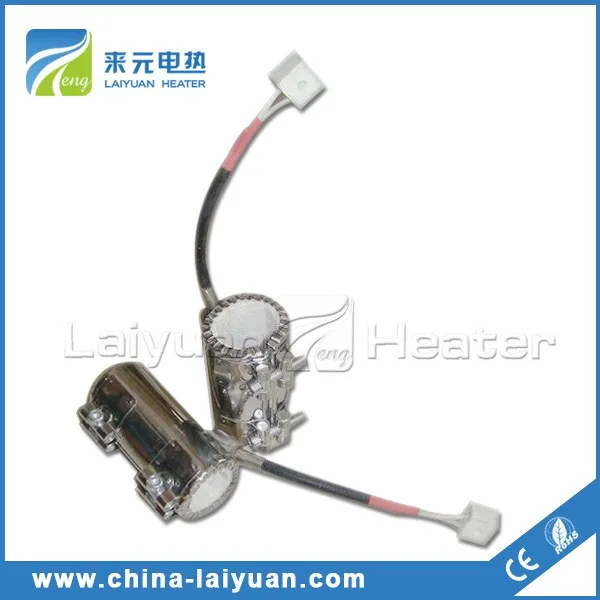

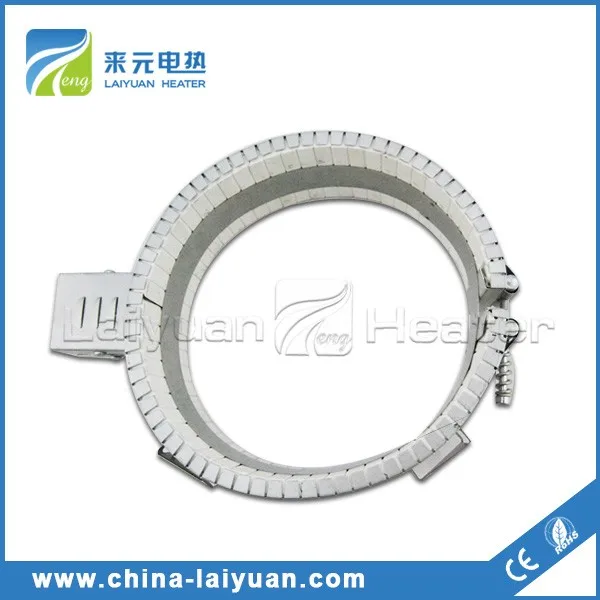

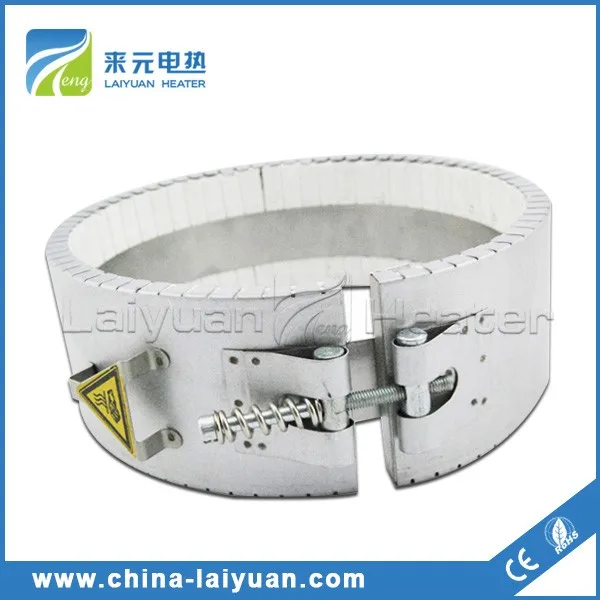

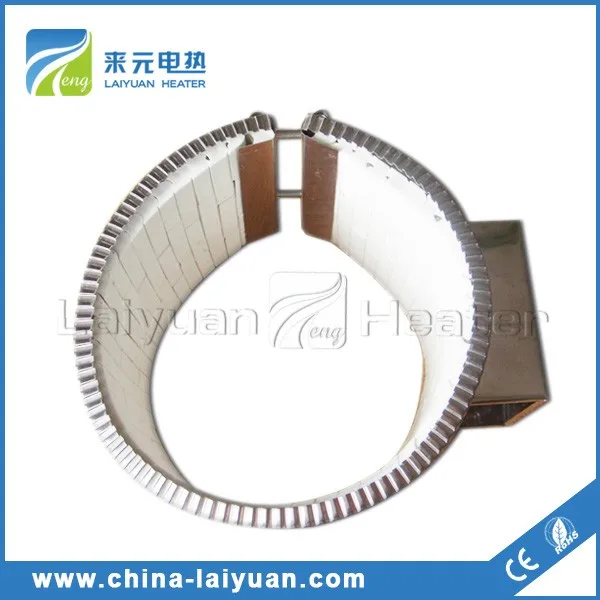

Brand Name: Laiyuan Ceramic Band Heater
Model Number: LY-CBH-15001
Place of Origin: Jiangsu, China (Mainland)

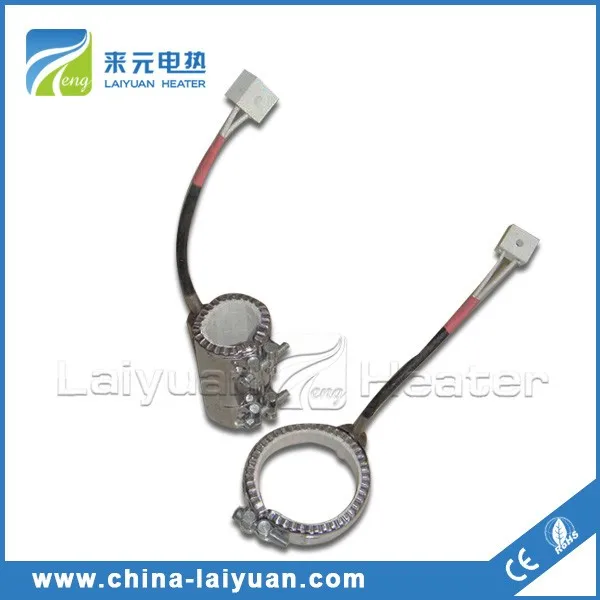

Electric pipe heaters
Electric pipe heaters are designed and manufactured out of 8 years of experience, for superior performance and life expectancy. Electric pipe heaters primarily used for Plastic Processing machinery, depending upon applications, these heaters come with outer heat saving insulation covers, which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 5000C along with Energy Saving.
Features of Electric pipe heaters :
Sheath Material |
Stainless Steel cover for Electric pipe heaters |
Insulators |
High Grade Steatite Ceramic Insulators (High temperature) |
Heat Saving Thermal Insulation |
Ceramic Fibre (std.) |
Heating Elements (coil) |
NiCr 80:20 |
Nominal Wall Thickness |
Premium Heat : ½" |
Connection |
Fiber Glass Insulated- Metal Braided Flexible Cable (std. 12" long) mounted on rigid screw post terminals |
Voltage Range |
110V - 440V, Single, Three Phase |
Surface Loading |
35-55W / inch2 (depending upon model & application) |
Power Rating |
Depending upon application |
Power Tolerance |
± 10% |
HV Testing |
1.5 Kv between heating element and sheath |
Insulation Resistance (Cold) |
< 20 MΩ |
Sheath Temperature |
Up to 500°C maximum (Chrome Nickel Steel sheath) |
Gap Between the Clamping Edge |
5 - 10mm |
Resistance |
+/- 10% |
Width : |
Minimum 50mm and there after multiples of 15mm. |
Inner Diameter |
Minimum 50mm |

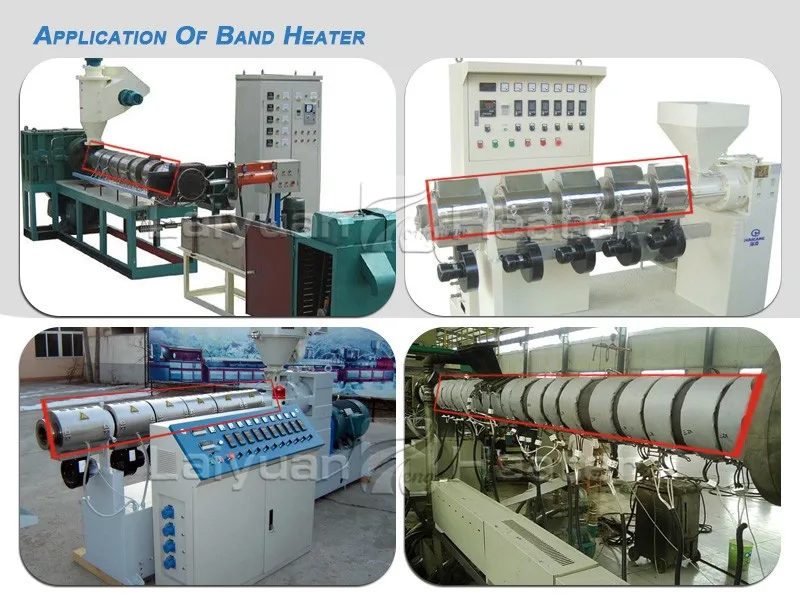

Applications of Electric pipe heaters :
1.Plastic Injection Molding Machines
2.Plastic Extruders
3. Oil Reclamation Equipment
4. Food and Candy Extruders
5. Drum Heating
6. Extrusion Dies
7. Holding Tanks
8. Blow Molding Machines
9. Food Service Warming
10. Hot Runner Molds
Yancheng Laiyuan Electric Equipment Co.,Ltd. was established in 2005, lies in beautiful city of Yancheng, Jiangsu China. We specialize in electric heaters, including Heating Resistance Wires, Tubular heater, Thermocouple, Immersion Heater, Band Heater, Ceramic Infrared Heater ,High-temperature Cable and other heating elements.
Yancheng Laiyuan is by virtue of electric technology has a wealth of production experience and professional technical force, to adapt to the market economy competition and technology requirements, we introduce the international advanced level of tubular electric heating elements for customers to create maximum value .
Yancheng Laiyuan has won praises for rapid development, scientific management method and perfect sales service. We possess a wonderful fame both at home and abroad. We are known for our innovative products and are continually introducing new and exciting products. Continual improvement is a by-word within our company and we are always looking for ways of improving our existing products in addition to developing new ranges.
“QUALITY WITHOUT COMPROMISE”, Laiyuan has always been the product quality as enterprise life, therefore we always have effort, and ultimately create the perfect laiyuan brand .
1.Laiyuan is Factory or Trade enterprise?
Laiyuan is an enterprise incorporating Factory and Trade .
2.Where is your factory located? How can I visit there?
Our factory is located in Yancheng City, Jiangsu Province, China .
It is closed to Shanghai ,only 4hours if by bus.
3.Which Certificate of your product does your company have?
ISO9001,CE,ROHS.CCIC
4.Before order, we need sample for test ,is it ok?
Yes, of course. We provide sample for test before bulk order.
5.How does your company to control your product quality?
Quality is the cornerstone of the survival and development of Laiyuan .
We control quality from the beginning to the end all the time.
6.How to contact me ?
Whatsapp: 86-15895143509 Phone:86-15895143509
Skype:emilylaiyuan E-Mail.: sales004ATchina-laiyuan.com
YOUR VISIT WILL LEAD LAIYUAN PEOPLE TO DO BETTER!
