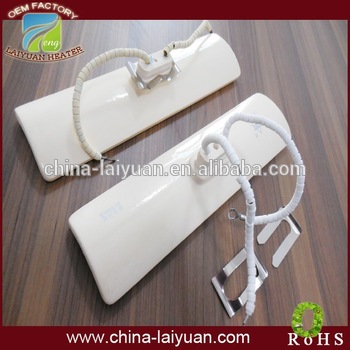

Food sheeting machine ceramic heater 120*60mm curved

Food sheeting machine ceramic heater 120*60mm curved

FOB Price:

US 3.2-10 / Piece

Min.Order Quantity:

5 Piece/Pieces

Supply Ability:

1200 Piece/Pieces per Week

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Brand:

Laiyuan

Products Model:

LY-IRCH1107

Products Details
Company Profile

Quick Details

Brand Name: Laiyuan

Model Number: LY-IRCH1107

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: carton box & wooden box for Food sheeting machine ceramic heater
Delivery Detail: within 7 days for Food sheeting machine ceramic heater

Specifications

Food sheeting machine ceramic heater:
1.Material:ceramic for body
2.Used in chemical industry
3.Use life is more than 5000h

Specifications of Food sheeting machine ceramic heater :

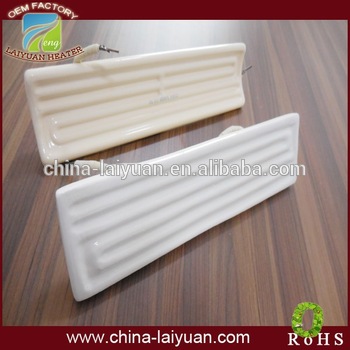

IR ceramic heater
-Material:ceramic for body
-Used in chemical industry
-High quality & best price

IR ceramic heater embedding type ceramic far infrared radiated elements apply glaze with high radiance,ceramic with good heat and shock property as base,and are sintered once by nichrome wire.

The components of Food sheeting machine ceramic heater :

1.Base body:made of ceramic material with good heat shock property.

2.Heating nature:sintered by high quality nichrome wire.

3.Glaze:composed of metal oxide material with good far infrared radiated property.

4. Put right amount of additive and improve radiant intensity and strengthen adaptability of glaze billet

Main technical parameter and property:

1.Radiated characteristic: the tiptop single color of radiance of element can reach 0.9
2.Time of heating response: from room temperature to surface temperature of radiated plate, the fixed time will not exceed 20 minutes.
3.Cold and hot resistance: the base body is heated to 800 C and put in cold water repeatly for many times and no cracking. After cold and hot mutual change test for five times, no peel and no craze.
4. The radiated element is heated after electrifying to rating power and immerged into cold water after interruption of power supply for forty times without damage.
5.Good chemical stability; strong causticity-resistance; perfect oxidation-resistance
6.The heating damage of non radiated surface is small.
7. Resistance in common temperature:	10¹² ohm ⁰cm
8.Uneven degree for radiated surface temperature:≤15%
9. Rupture strength for base body:	440Kg/cm2
10.Tolerance of power:	≤5% at rating working voltage
11.Cold state insulated resistance	500V tramegger>2 mΩ
12.Thermal state insulated resistance:	500V tramegger>5 mΩ
13.Using life span:	>3000 hours
14.The effect of energy saving is obvious, increasing 10-25% compared with silicon carbide element
15. The life span can prolong more than a few times compared with silicon carbide element.

1. Are you Manufacture or Trade Company ?
We are Manufacture for Industry Heating Element several years .

2.Where is your factory located? How can I visit there?

Our factory is located in Yancheng City, Jiangsu Province, China .

It takes 4.5 hours by bus ride from Shanghai .Warmly welcome to visit us freely .

3.What type of payment do you have available?
A: TT and L/C

B: West Union,Money gram and Aliexpress are available for sample order .

4.How can I get some samples?

We are honored to offer you samples .

5.How does your factory do regarding quality control?

Quality without compromise, Laiyuan people always attach great importance to quality controlling from the very beginning to the very end.

Welcome to contact us for more details ,most competitive price for you !

Yancheng Laiyuan Electric Equipment Co.,Ltd. lies in beautiful city of Yancheng, Jiangsu China. We specialize in electric heaters, including Heating Resistance Wires, Band heater, Bobbin Heater, Heating Part for Hot Air gun and other heating elements.

Laiyuan is by virtue of Electric Technology has a wealth of production experience , Professional Technical Force, a strong R&D department and a dedicated team , to adapt to the market economy competition and technology requirements more than 10 years.

Yancheng Laiyuan has won praises for rapid development, scientific management method and perfect sales service. We possess a wonderful fame both at home and abroad. We are known for our innovative products and are continually introducing new and exciting products. Continual improvement is a by-word within our company and we are always looking for ways of improving our existing products in addition to developing new ranges.

'QUALITY WITHOUT COMPROMISE', Laiyuan has always been the product quality as enterprise life, therefore we always have effort, and ultimately create the perfect Laiyuan brand .
