polyesterimide enameled aluminum wire

FOB Price:

US 0.22-16.5 / Kilogram

Min.Order Quantity:

500 Kilogram/Kilograms

Supply Ability:

1000 Ton/Tons per Month

Port:

Tianjin Shanghai

Place of Origin:

Shaanxi, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

galaxy

Products Model:

EAL 130

Products Details
Company Profile

Quick Details

Brand Name: galaxy

Model Number: EAL 130

Place of Origin: Shaanxi, China (Mainland)

Packaging & Delivery

Packaging Details: Inner packing: different plastic spool according to wire diameter (Plastic spool of PT-4,PT-10,PT-15,PT-25,PT-60,PT-90,PT-200,PT-250,PT-270) Outer packing: wooden spool and in wooden case or according customers' special requirement
Delivery Detail: 7-20 days after confirming the order

Specifications

Diameter:0.2mm-8.0 mm
Thermal class:130/155/180/200/220
Standard:NEMA GB IEC
Certificatioon:UL,ROHS and ISO9001:2008

Made in china polyesterimide enameled aluminum wire

Classification

1.Enameled round copper wire coated wire

130 degree Polyester coated wire PEW 0.10-3.0mm

155 degree Polyurethane coated wire UEW 0.03-0.9mm

180 degree Polyurethane coated wire UEW 0.03-0.9mm

180 degree Polyesterimide coated wire EIW 0.11-5.0mm

200 degree high temperature Polyester or Polyesterimide overcoated Polyamide-imide wire EIW 0.11-5.0mm

220 degree Polyamide coated wire PIW 0.11-5.0mm

2. Enameled round aluminum wire coated wire

180 degree Polyesterimide coated wire EIW 0.13-6.0mm

3. 180 degree Polyesterimide enameled aluminum rectangular wire coated wire a:0.8-5.6mm ,b:2.0-16 mm

Applications of enamelled aluminum wire:
a)Small transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads, instruments,speakers.
b)Automotive sensors and coils as relais and ignition coils.
c)Generators,dry-type or oil-immersed.
d)Anti-explosion motor,air-conditioner compressor,washing machine
e)Military and space applications.

Packing:

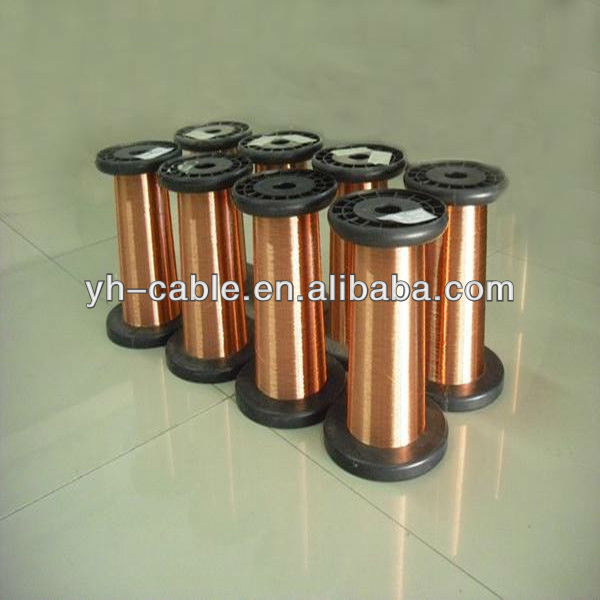

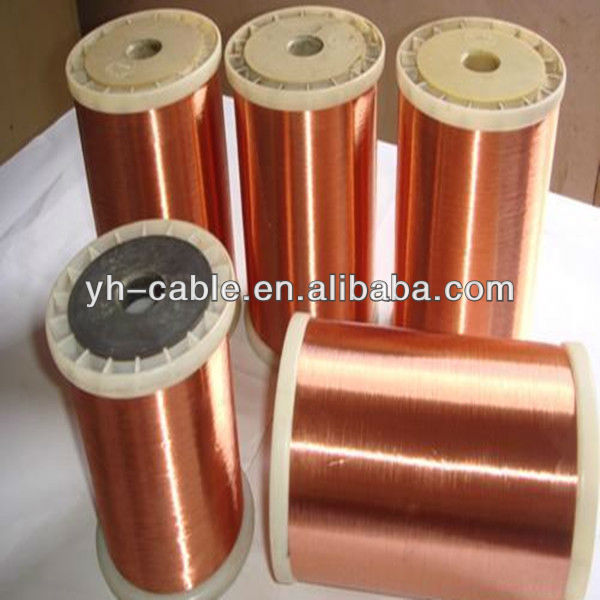

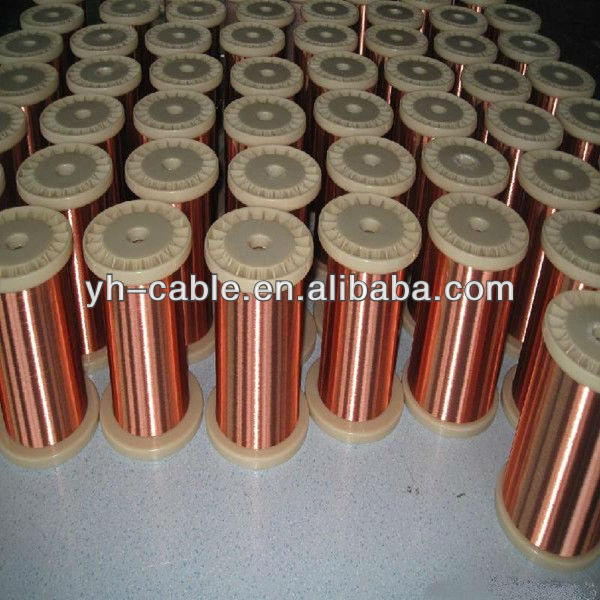

Inner packing: Different plastic spools according to wire sizes
Outer packing: Carton or as customer required
Our current sizes ranging from diameter 0.08-5.60 mm, and can enamel your Required insulation type on the wires.

Test report of Enameled Aluminum Wire:

Name	Enameled Aluminum Wire
Type	QZYL/155
Diameter	1.83mm
Standard	IEC60317
Test item	Unit	Technical Requirement	Test Result
Appearance		Bright and clean, uniform color,	OK
Overall Diameter	mm	<1.939	1.93
Conductor Diameter	mm	±0.018	1.84mm
Thickness of Insulation film	mm	>0.075	0.09
Resistance	Ω/m	<0.010929	0.010619
Elongation		>15%	21%
Winding test		No cracking	No cracking
Tensile test		15% no cracking	No cracking
Peel twist		Insulation film without losing adhesion	OK
Jerk test		Insulation film without losing adhesion	OK
Resistance to heat shock	C	200C insulation film no cracking	Tensing 15% half an hour, no cracking
Resistance to solvent		Standard solvent “H” Pencil	2H is ok
Breakdown voltage	KV	5.0 KV	9.0,10.0,11.0,9.9,10.2
Packing		Meet the export standard	OK
Quality control result		OK

Advantages of enamelled aluminum wire:

High conductivity
Good solderability
High ductility
Chemically resistant
Excellent thermal stability
High resistance to abrasion

We warmly welcome your inquiry!

Please directly contact with

Ms Amy

Skype: galaxycable2

Xi'an Galaxy Imp & Exp Co., Ltd is a professional supplier, which is engaged in exporting all kinds of enameled copper wires,enameled aluminum wires,enameled copper clad aluminum wires,CCA/CCS/CCAM wires,electric wires and cables , heating cables and mats,power cables,welding cables, solar cables, communication cables and optical fiber wires, We are located in Xi'an city Shaanxi province. In recent years, Among our clients from Northern Europe,Southeast Asia,Africa,Western Europe and so on. we enjoy a good reputation through several year's effort and experience. In addition, our products can meet GB, IEC, UL,BS,AS,ASTM standards. Now our foreign trade department is a strong cohesive force team with professional skills, we are always available to discuss your requirements and ensure full customers' satisfaction. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to us about your sourcing requirements, we will try our best to give you a perfect solution at first time. Your satisfaction is our motivation . we warmly welcome your contacting.
