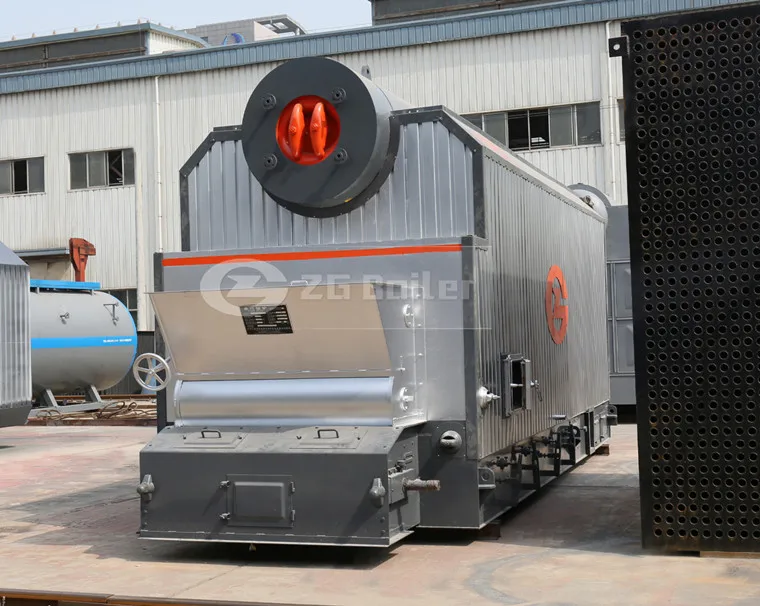

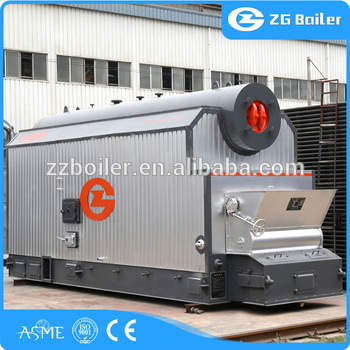

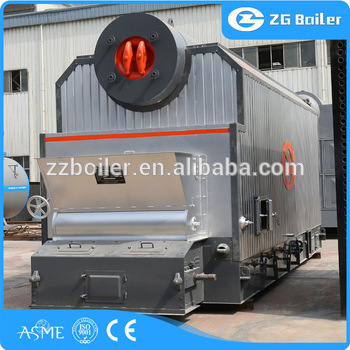

DZL 6t 1.6MPa ASME Chain Grate Biomass Steam Wood Pellet Boiler

DZL 6t 1.6MPa ASME Chain Grate Biomass Steam Wood Pellet Boiler

FOB Price:

US 10000-12000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Set/Sets per Year

Port:

Dalian, Qingdao, Shanghai, Shenzhen, Guangzhou, etc

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Brand:

Zhengzhou Boiler

Products Model:

DZL6-1.6-T

Products Details
Company Profile

Quick Details

Brand Name: Zhengzhou Boiler

Model Number: DZL6-1.6-T

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: DZL 6t 1.6MPa ASME Chain Grate Biomass Steam Wood Pellet Boiler have package form: standard export package. Fumigated wood box, U-steel, steel frame reach to sea transportation requirement.
Delivery Detail: 1-2 months after receiving your order

Specifications

DZL 6t 1.6MPa ASME Chain Grate Biomass Steam Wood Pellet Boiler

Product Description

DZL 6t 1.6MPa ASME Chain Grate Biomass Steam Wood Pellet Boiler parameter:

Model	Capacity (t/h)	Pressure(MPa)	Steam Temperature(℃)	feed water Temperature (℃)	Fuel
DZL2-0.8-AⅡ	2	0.8	175	20	biomass, rice husk, wood chip, pellet, coal, etc
DZL2-1.0-WⅢ	2	1	184
DZL2-1.25-AⅡ	2	1.25	194
DZL4-1.25-AⅡ	4	1.25	194
DZL4-1.25-WⅢ	4	1.25	194
DZL4-1.6-AⅡ	4	1.6	204
DZL6-1.25-AⅡ	6	1.25	194
DZL6-1.6-AⅡ	6	1.6	204
DZL8-1.25-AⅡ	8	1.25	194
DZL8-1.6-AⅡ	8	1.6	204
DZL10-1.25-AⅡ	10	1.25	194
DZL10-1.6-AⅡ	10	1.6	204

DZL 6t 1.6MPa ASME Chain Grate Biomass Steam Wood Pellet Boiler Features:

1.With the novel furnace structure, the deformation of bulge caused by direct heating of the drum bottom can be avoided.
2. downside”a” flame structure, makes the lean coal combustion easier and it can adjust itself to a wide range of coal types.
3.The damper effectively prevent the secondary combustion distortion and air leaking in the grate.
4. The single pass threaded pipe installed in the drum, so it can not only strengthen the heat transfer effect but also has the function of dust self-cleaning at the same time.
5. new type crack screw wind adjustment structure so that the cross section proportion of the wind adjustment and ventilation can reach 100%.

Certifications

Zhengzhou Boiler Co., Ltd. in product quality has been the unremitting efforts of high returns. In 1999, once passed the ISO9001 international quality management system certification; in 2002 obtained the International Certification of quality management certification, and successfully passed the international quality management system 2000 version of call-up; in 2008 the company received the industry's most authoritative in the international arena-The ASME quality system certification, and has excellent access to equipment management unit of Ministry of Machine Building Award, Quality Management Award in Henan Province, the National boiler industry users appraisal "quality, reputation, service" Best Award, etc.

Company Information

Zhengzhou Boiler Co., Ltd., formerly known as Zhengzhou Boiler factory, founded in 1945, it is the largest boiler manufacturer in central and western regions of China, boiler manufacturing license with A-level, three types of pressure vessel manufacturing license and a boiler installation permit. In 2002 the company moved to Zhengzhou High-tech Industrial Development Zone, in 2007 again in Zhengzhou Xing Yang Development Zone covers an area of 450,000 square meters built a second factory for the company's further. Engaged in the boiler as a domestic first-class production of large enterprises.

ZhengzhouBoiler Co., Ltd., has developed into a staff of more that1,500 people, including engineers and technicians 376 people, senior engineer 47 people; with the annual production of industrial boilers, 12,000 tons of steam boiler, pressure vessel more than 16,000 tons of metal and other 9 series more than 200 varieties of productive capacity.

Successful Projects

The ZG boiler system is designed with 70 years' experience to be used in textile industry, chemical industry, rubber industry, sugar mill, paper mill, etc.

Packaging & Shipping

Packaging Details: Fumigated wood box, U-steel, steel frame reach to sea transportation requirement. We will use pe film for packing or pack it according to customer's special request.

Packaging Details

Our Services

1.Any products quality problems manufactured and sold by our company, our company will execute "Three Contract "service, our sales service three contract team will be in charge of this job.

2.The minute we received products quality information from our customers(by means of call, mail or oral notice), we will dispatch related staff to settle the problem on site at once.

3.After sale service staff must settle related quality problem carefully, considerately, guarantee clients timely use without further worry.

4.At the same time of timely settlement of sold products quality problem, after sale service staff is committed to provide technical consultation, training for clients without extra expense as well as answer other products related problems.

If you want to know more about your ideal products, welcome to contact us at any time!!!

Email: jennifer@ zgboilers.com
Skype: sale.zgboiler
Whatsapp: 0086 15639270248

Zhengzhou Boiler CO., Ltd is a leading industrial horizontal boiler manufacturer and exporter in Henan Province, China, founded in 1945, is a joint-stock enterprise with A1, A2, C3 pressure vessel design and manufacture license permits. We are specialized in the producing of horizontal Gas fired boiler,horizontal oil fired boiler, horizontal Biomass fired boiler,horizontal Coal fired boiler,horizontal Chain grate boiler,CFB boiler,Waste heat recovery boiler,Industrial autoclave,AAC block plant. The industrial boiler and autoclaves are developed with technical advantages, stable and reliable performance, exported to Southeast Asia, Africa, Middle East and other countries.

As the company continues to grow, many honors have followed us. Now the company has covered an area of 20,000 square meters, with more than 1500 employees and more than 1000 various types of manufacturing equipments, and ten large research bases.

The main products are:
1. WNS series gas & oil horizontal steam boiler 1-20 ton/hour, hot water boiler 0.7-14MW
2. SZL series chain grate boiler: 4 ~ 25 T/h steam boiler, 1.4 ~ 14 MW hot water boiler;
3. DZL series chain grate boiler: 2 ~ 25 T/H steam boiler, 2.8~ 17.5 MW hot water boiler;
4. CFB boiler(power plant boiler) is 10-280 ton
5. Biomass boiler: 2 ~ 25 T/H steam boiler, 2.8~ 17.5 MW hot water boiler;
6. AAC block plant : 50000-250000m3
