Fabric waste wood waste solid fuel fired steam boiler 4 ton 1 25 Mpa

Fabric waste wood waste solid fuel fired steam boiler 4 ton 1 25 Mpa

FOB Price:

US 4500-9800 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Set/Sets per Year

Port:

China Main Ports

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Zhengzhou Boiler

Products Model:

SZL chain grate

Products Details
Company Profile

Quick Details

Brand Name: Zhengzhou Boiler

Model Number: SZL chain grate

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Industrial coal fuel boiler system has standard export package. Fumigated wood box, U-steel, steel frame reach to sea transportation requirement.
Delivery Detail: Shipped in 35 days after payment

Specifications

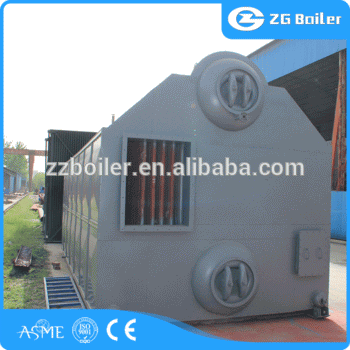

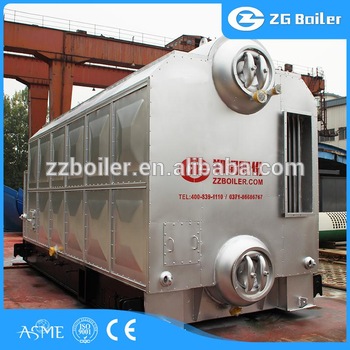

Waste wood steam boiler 4 ton details

Waste wood steam boiler 4 ton Character

Waste wood steam boiler 4 ton adopts light chain belt grate, it has high automatization, strong dust removing function, less environmental pollution and it has good comprehensive economic and technical indicators so that it is very popular with the clients.

Waste wood steam boiler 4 ton Advantages:

100% membrane water cooling wall structure, good sealing and high efficiency
Large heating surface design, ensuring high boiler output and efficiency
Large grate area design, boosts boiler coal type adaptability and combustion efficiency
Uses movable grate technology, lowering coal leakage rate and enhancing combustion
Improved “A” type furnace design, highly thorough flame combustion
New furnace wall design, resulting in low heat loss and high thermal efficiency

SZL Chain grate steam boiler parameters
Type	Capacity (t/h)	Pressure (MPa)	Steam Temperature (°C)	Feed Water Temperature (°C)	Designed fuel
SZL4-2.5-AⅡ	4	2.5	226	20	Ⅱ bituminous coal
SZL6-1.25-WⅢ	6	1.25	194	20	Ⅲ Anthracite coal
SZL8-1.25-AⅡ	8	1.25	194	20	Ⅱ bituminous coal
SZL10-1.25-AⅡ	10	1.25	194	20	Ⅱ bituminous coal
SZL12-1.25-AⅡ	12	1.25	194	60	Ⅱ bituminous coal
SZL15-1.25-AⅡ	15	1.25	194	105	Ⅱ bituminous coal
SZL20-1.25-AⅡ	20	1.25	194	105	Ⅱ bituminous coal
SZL25-1.25-AⅡ	25	1.25	194	105	Ⅱ bituminous coal
SZL30-1.25-WⅢ	30	1.25	194	105	Ⅲ Anthracite coal
SZL30-2.5-AⅡ	30	2.5	226	105	Ⅱ bituminous coal

Why choose us

--- 70 years' experience on industrial coal boiler

High quality modern workshop
Professional engineer team
Good serivce on boiler design and installation

About Us

Zhengzhou Boiler Co., Ltd formerly known as Zhengzhou Boiler factory, founded in 1945, it is the largest Gas oil fuel water boiler manufacturer in central and western regions of China, boiler manufacturing license with A-level, three types of pressure vessel manufacturing license and a boiler installation permit.

ZhengzhouBoiler Co., Ltd., has developed into a staff of more than 1,500 people,including engineers and technicians 376 people, senior engineer 47 people; with the annual production of industrial boilers, 12,000 tons of steam boiler, pressure vessel more than 16,000 tons of metal and other 9 series more than 200 varieties of productive capacity.

Product Certification

Zhengzhou Boiler CO., Ltd is a leading industrial horizontal boiler manufacturer and exporter in Henan Province, China, founded in 1945, is a joint-stock enterprise with A1, A2, C3 pressure vessel design and manufacture license permits. We are specialized in the producing of horizontal Gas fired boiler,horizontal oil fired boiler, horizontal Biomass fired boiler,horizontal Coal fired boiler,horizontal Chain grate boiler,CFB boiler,Waste heat recovery boiler,Industrial autoclave,AAC block plant. The industrial boiler and autoclaves are developed with technical advantages, stable and reliable performance, exported to Southeast Asia, Africa, Middle East and other countries.

As the company continues to grow, many honors have followed us. Now the company has covered an area of 20,000 square meters, with more than 1500 employees and more than 1000 various types of manufacturing equipments, and ten large research bases.

The main products are:
1. WNS series gas & oil horizontal steam boiler 1-20 ton/hour, hot water boiler 0.7-14MW
2. SZL series chain grate boiler: 4 ~ 25 T/h steam boiler, 1.4 ~ 14 MW hot water boiler;
3. DZL series chain grate boiler: 2 ~ 25 T/H steam boiler, 2.8~ 17.5 MW hot water boiler;
4. CFB boiler(power plant boiler) is 10-280 ton
5. Biomass boiler: 2 ~ 25 T/H steam boiler, 2.8~ 17.5 MW hot water boiler;
6. AAC block plant : 50000-250000m3
