Top 10 hot sales new design coal boiler manufacturer horizontal coal fired steam boilers

Top 10 hot sales new design coal boiler manufacturer horizontal coal fired steam boilers

FOB Price:

US 4500-9800 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Set/Sets per Year

Port:

China Main Ports

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Zhengzhou Boiler

Products Model:

Coal firetube

Products Details
Company Profile

Quick Details

Brand Name: Zhengzhou Boiler

Model Number: Coal firetube

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: standard export package. Fumigated wood box, U-steel, steel frame reach to sea transportation requirement.
Delivery Detail: Shipped in 35 days after payment

Specifications

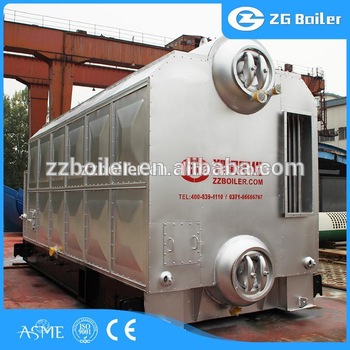

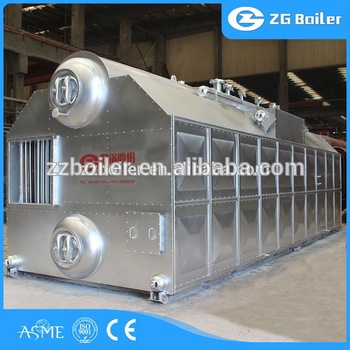

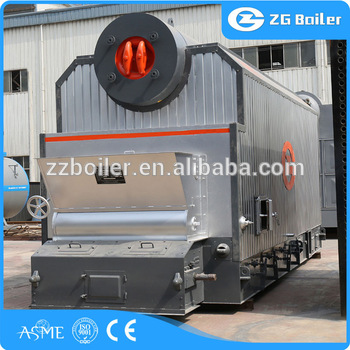

Horizontal coal fired steam boilers details

DZL Chain grate coal fired steam boiler parameters
Type	Capacity (t/h)	Pressure (MPa)	Steam Temperature (°C)	Feed Water Temperature (°C)	Designed fuel
DZL4-2.5-AⅡ	4	2.5	226	20	Ⅱ bituminous coal
DZL6-1.25-WⅢ	6	1.25	194	20	Ⅲ Anthracite coal
DZL8-1.25-AⅡ	8	1.25	194	20	Ⅱ bituminous coal
DZL10-1.25-AⅡ	10	1.25	194	20	Ⅱ bituminous coal
DZL12-1.25-AⅡ	12	1.25	194	60	Ⅱ bituminous coal
DZL15-1.25-AⅡ	15	1.25	194	105	Ⅱ bituminous coal
DZL20-1.25-AⅡ	20	1.25	194	105	Ⅱ bituminous coal
DZL25-1.25-AⅡ	25	1.25	194	105	Ⅱ bituminous coal
DZL30-1.25-WⅢ	30	1.25	194	105	Ⅲ Anthracite coal
DZL30-2.5-AⅡ	30	2.5	226	105	Ⅱ bituminous coal

ZG Horizontal coal fired steam boilers Advanatges

* Simple installation,

* Low initial investment,

* Safe and reliable operation,

* Energy conservation,

* Environmental protection, etc.

DZL series packaged chain grate boiler adopts patented design double wings gas ducts structure and inverted "α" arch furnace technology, is widely used in

Thermal power plant, heating company, food & beverage, cement plant, paper mill, chemical industry, pharmaceuticals industry, textile industry, coal industry, steel & iron industry, non-ferrous metallurgy, mining industry.

Why choose us

--- 70 years' experience on industrial coal boiler

High quality modern workshop
Professional engineer team
Good serivce on boiler design and installation

About Us

Zhengzhou Boiler Co., Ltd formerly known as Zhengzhou Boiler factory, founded in 1945, it is the largest Gas oil fuel water boiler manufacturer in central and western regions of China, boiler manufacturing license with A-level, three types of pressure vessel manufacturing license and a boiler installation permit.

ZhengzhouBoiler Co., Ltd., has developed into a staff of more than 1,500 people,including engineers and technicians 376 people, senior engineer 47 people; with the annual production of industrial boilers, 12,000 tons of steam boiler, pressure vessel more than 16,000 tons of metal and other 9 series more than 200 varieties of productive capacity.

Product Certification

Zhengzhou Boiler CO., Ltd is a leading industrial horizontal boiler manufacturer and exporter in Henan Province, China, founded in 1945, is a joint-stock enterprise with A1, A2, C3 pressure vessel design and manufacture license permits. We are specialized in the producing of horizontal Gas fired boiler,horizontal oil fired boiler, horizontal Biomass fired boiler,horizontal Coal fired boiler,horizontal Chain grate boiler,CFB boiler,Waste heat recovery boiler,Industrial autoclave,AAC block plant. The industrial boiler and autoclaves are developed with technical advantages, stable and reliable performance, exported to Southeast Asia, Africa, Middle East and other countries.

As the company continues to grow, many honors have followed us. Now the company has covered an area of 20,000 square meters, with more than 1500 employees and more than 1000 various types of manufacturing equipments, and ten large research bases.

The main products are:
1. WNS series gas & oil horizontal steam boiler 1-20 ton/hour, hot water boiler 0.7-14MW
2. SZL series chain grate boiler: 4 ~ 25 T/h steam boiler, 1.4 ~ 14 MW hot water boiler;
3. DZL series chain grate boiler: 2 ~ 25 T/H steam boiler, 2.8~ 17.5 MW hot water boiler;
4. CFB boiler(power plant boiler) is 10-280 ton
5. Biomass boiler: 2 ~ 25 T/H steam boiler, 2.8~ 17.5 MW hot water boiler;
6. AAC block plant : 50000-250000m3
