commercial ice maker machine /ice cube machine/ ice cube maker

The product parameters

Model: JD-2000

Max output: 2000lb 910kg

Storage capacity: 1100lb 500kg

Dimension: 1220*930*1850mm

Power: 380V,3800W

Condenser unit: Water

Refrigerant: R22/R404A

Commercial Cube Ice Making Machine factory price

About Cube Ice Maker Mahicne:

1. Ice cube machine for produce food grade ice, cube ice is edible ice.

2. Cube ice are widely used in Restaurant, Hotel, and Wine bar and so on.

3. Cube ice have two sizes for choose, 22mm x 22mm x 22mm, 28mm x 28mm x 23mm, 28mm x 13mm x 23mm, 29mm x 29mm x 22mm.

4. Daily capacity of ice cube machine can be from 20kg to 20tons.

Note:

1. Standard wooden case.

2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.

3. Machine come into use, customer only need prepare power for the machine.

4. All required components for installing the machine will be provided.

New technology

 Original intelligent core, has two big functions:  automatic first cleaning and intelligent cooling

“Automatic first cleaning” means cleaning tank, water pipe and ice tray automatic cleaning, which will make the ice more healthy, more transparent when the machine is switched on.

“Intelligent cooling” means the fan working automatically when the temperature belows 20 degree centigrade; restoring to work automatically when the temperature rises to 30 degree centigrade, so that will save energy, extend the service life.

Characteristics of cube ice

Ice with high hardness, center freezing up to minus 18 degrees, the ice crystal clear, not easy to melt.

Hexahedral ice contact surface is large, rapid cooling can make drink taste better.

Ice cube dimension:

 22*22*22mm,10g;
 28*13*23mm,7g;
 28*28*23mm,15g.

Cube ice maker machine applications

hotel, fast food restaurant, western restaurant, cold drink shop, coffee hall, ice factory and other places.

Cube ice maker machine specifications:

Characteristics of erect cube ice maker machine:

Bigger nickel plated copper ice tray, yield than similar products more than 10% above.

The original "intelligent core" makes the machine with stable performance, convenient maintenance.

The ice machine and ice storage tank is separated, the transportation is convenient, the ice storage amount is large.

Inner tank, water tank, water pipe are up to food grade standards, safety and healthy.

Overall ice storage tank, the thermal insulation layer is integral foam, heat preservation performance is good.

Width 760MM,ice storage capacity,applicable to need a lot of ice place.

 Whole machine 12 months warranty, the compressor 5 years. Maintenance for life!

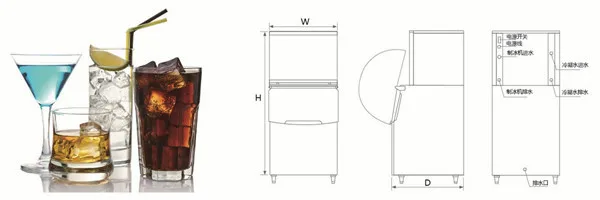

Ice maker machine structure drawing:

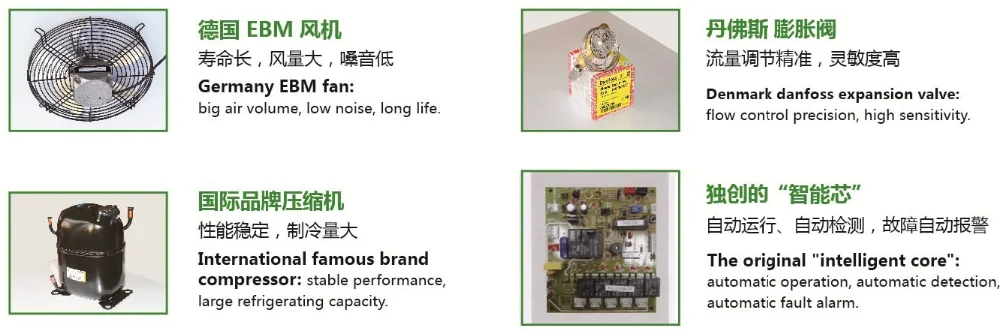

Ice making Machine Main Parts:

What Make us Difference?

Advanced copper-nickel evaporator, fast ice making and dispensing which is time and energy saving.
Maximize the evaporation area in the reasonable scope, which ensures full production capacity as well as quality of ice cube.
Microcomputer detection system, which is safe and reliable without hand operation.
Scientific configuration of condensation system and temperature induced condensation system, which adapts well to different temperatures.
Ice bin which adapts PE rotational molding can fully satisfied the national food access standard.
Parts and components of world famous brand has long service life and is efficient and energy conserving.
Hexahedral ice tube with large contact surface rapid cooling of the frozen treats available.
R304 Stainless steel casing contribute to luxurious and tasty appearance, which is easy to clear and durable.

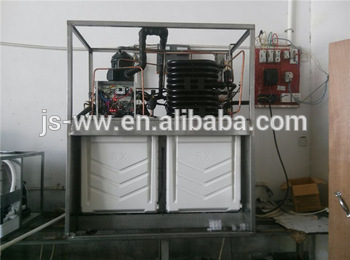

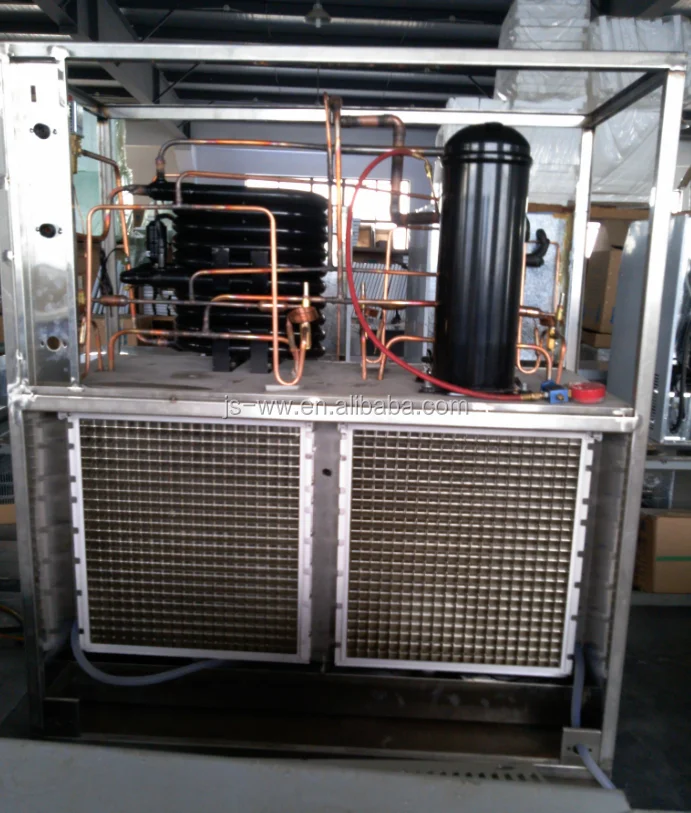

Ice Maker Machine pictures
