Easy install digital thermostat for fan coil control

FOB Price:

US 10-20 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Month

Port:

Shanghai / Nanjing or other

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

T/T,Western Union,Paypal

Brand:

INSBUD

Products Model:

TR3100AC

Products Details
Company Profile

Quick Details

Brand Name: INSBUD

Model Number: TR3100AC

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: 1pc/inner box, 100pcs/carton
Delivery Detail: 10 days

Specifications

TR3100AC Easy install digital thermostat for fan coil control

Heating, Cooling modes
large LCD display with back light illumination
Slim design
Fan speed: Auto, High, Medium, Low
Heating Output
Cooling Output
Frost protection
Easily increase or decrease the required temperature
Temperature range 05°C - 35°C
Remote control optional
Power Supply: 230v or 110v, or 24v
Communication Protocol: MODBUS RTU over RS485 (optional)

Models and Application

TR3100AC-B: control fan coil only, It directly control the fan speed and running/stopping of fan coil uni ts.

TR3100AC-DA : control fan coil and valve. When room temperature reaches the set-point, it will close the valve with the fan coil still running.

TR3100AC-DB : control fan coil and valve. When room temperature reaches the set-point, it will close the valve and turn off the fan coil unit.

TR3100AC-F: control motorized air damper, when temperature reaches the set-point, the air damper will be closed.

Specifications

Power Consumption: < 2W

Set point Range: 5~35 degree C

Accuracy: +/-1 degree C

Max. Load: 400W

Power Supply: 220V AC + 15% 50/60Hz

Housing: Anti-flammable ABS

Dimension: 86X86X13 MM

Agency Approval: CE compliant

Packing Details

> 1pc/inner box, 100pcs/carton

> Carton size: 55*40*42CM

Dimension

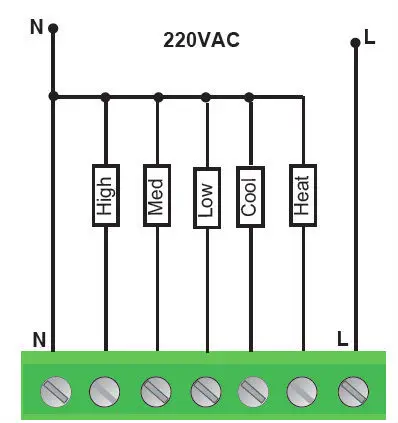

Wiring diagram
