Brand Name: INSBUD
Model Number: TR8500
Place of Origin: China (Mainland)

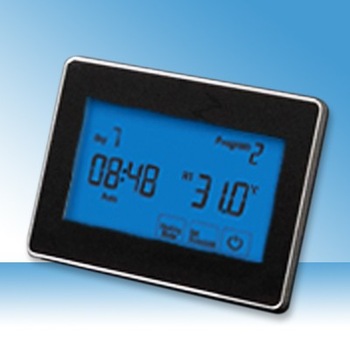

easy heat touch screen programmable thermostat for Infrared Mats control
Convenient and comfortable:
-Offering the ability to program each day differently and to customize temperatures for four periods per day, this thermostat makes it easy to heat or cool your home for optimum comfort
-7 day programmable , maintain the pre-set program schedule for up to 30% energy savings, or modify the schedule to fit your lifestyle ;
-Automatic programmable mode with 24 hour 7 day timer or manual mode
-Digital thermostat includes precise comfort control, a contemporary design to complement your lifestyle.
-On-Demand Backlight - Easy to read in various lighting conditions
-Features temperature accuracy down to 1 degree .
-Suitable for almost all electric under floor heating systems.
-Battery backup to save settings during power failure.
-Floor temperature sensor with 3m cable included. Air temperature sensor built into thermostat
-Room temperature display can be recalibrated up to +/- 4°C;
-Can switch upto 16 amps (230v)
-Temperature display resolution: 0.1 C;
-Temporary temperature override;
-C / F temperature format selection by buttons;
-Air / floor temperature calibration separately
-Available in white and silver plastic finishes
A/ A&F/ F models all in one
Combination of 3 models;
A - Air only, with built-in sensor;
F - Floor only,controls floor temperature;
AF - Controls air temperature with ability to limit the
floor temperature
Specifications
* Power supply: 230VAC (120VAC optional)
* Inputs: 2 x NTC10K temperature sensors
* Output: 1 x switch relay(R1),max 3500watts
* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing).
* Dimensions:127mm x 95mm x22.5mm
* Backlight life: 5,000 hours.
* Battery type: CR 1220 (Backs up clock only)
* Battery life: > 5years (10 years Maximum)
Packing details
1pc/inner box, 50pcs/carton
Inner box size: 13x13x7cm
Carton size: 55*42*40cm
Dimensions
