Diesel Irrigation Water Pumps with Self Priming

Diesel Irrigation Water Pumps with Self Priming

FOB Price:
US 1500-35000 / Set
Min.Order Quantity:
1 Set/Sets
Supply Ability:
100 Set/Sets per Month
Port:
NINGBO
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
L/C,T/T,Western Union
Brand:
YonJou
Products Model:
S
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: YonJou

    Model Number: S

    Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

  • Packaging Details: Standard export plywood case water pump with diesel engine and accessories.
  • Delivery Detail: 20 days after received the deposit

Specifications

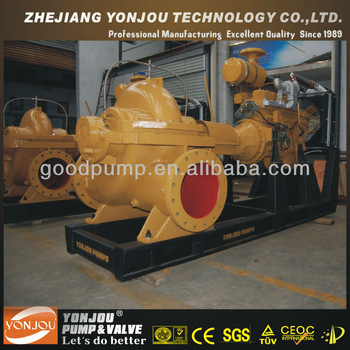

Diesel Irrigation Water Pumps
1.Capacity:126~8520m3/h
2.Hosepower:50~1066HP
3.Head:8~140m
4.Diameter:6"~32


Product Description

YONJOU Type Diesel Irrigation Water Pumps is a new generation of high efficient pump set made by YONJOU Pump Company. It gathers global resources and has flexible combination (single cylinder, multiple cylinder, water cooling, air cooling, marine diesel engine). We will provide you an all-round service and share with Global Resource Service.



Type: Centrifugal Type, Selfpriming Type, Endsuction Type, Positive displacement Type, Screw Type, Diaphragm Type, Submerged Type.



Diesel Engine Brand:

International Branded Diesel Engine (Such as CUMMINS, DAEWOO, VOLVO, MAN, PERKINS, MITSUBISHI,JOHN DEERE, DEUTZ, MTU, CATERPILLER, YAMAHA, IMC, IVECO) Domestic Branded Diesel Engine (Such as WEICHAIYUCHAISDECFAWQUANCHAICHANGCHAIXINCHAIDFACDCDBEINEIHBE).



Baseplate Type:Cart Type, Mobile Trailer Type, Auto Truck Type, Totally Enclosed Mute Type.



Control Mode: Manual Start, Button start,3G Remote start,Intelligent and Multi-function operation.



Main Usage:City Drainage, Flood Relief, Firefighting, Emergency, Main Drainage, Exploration, Oil Field, Field Working, Ship, Market, Farm Irrigation, River Sewage, Factory, Garden, Power Station, Sea Water Project, Water Project.



Range Of Application: Equipped with different pumps can transfer different liquids, such as fresh water, sewage water, sea wateroil and chemical materials.

Centrifugal Pump Parts:

Pump Type Double Suction Centrifugal Pump
Casing Material HT200
Impeller SS304,SS316,Copper,HT200
Pump Sealing Packing seal
Capacity Range 100m3/h~6480m3/h
Head Range 8m~140m
Inlet/Outlet diameter 6"(150mm)~32"(800mm)
Rotary Speed 1450rmp/2950rpm/585rpm/730rpm/970rpm
NPSH(r) 2.5m~7.5m
N.weight 165kgs~2550kgs
Pump Parts

Casing,Pump cover,Impeller,Shaft, Double suction sealing ring

Shaft sleeve,Bearing etc





Diesel Engine Parts:

Drive Variation Cummins,Deutz,Ricardo,Perkins or Chinese Diesel
Power Range 50HP~1066HP
Diesel driving Water cooled,air cooled
Cylinder 2 or 4
Cylinder diameter 95,96,100,102,105,110,113
Stroke 115,125,130,135
Displacement 3.26~9.49L
Engine Oil Capacity 13L,17L
Fuel consumption 218,224,231,251.6,258.4
N.weight 650kgs~2200kgs

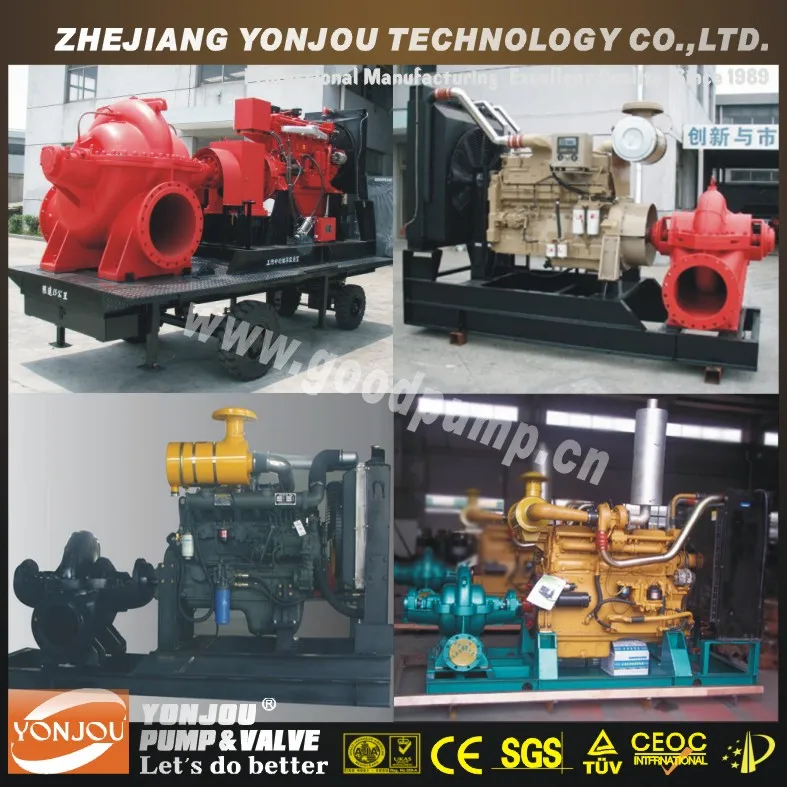

Mass Production:


Packaging & Shipping

Three Different packaging ways:

1. Steel Bar with Plastic Film

2. Plywood Case

3. Steel Bar with Plywood


Our Services

Services:

We can supply sample, but need sample fee.

We can supply one year grantee for our pump, except pump spare parts.

We can supply trolly for this pump

We can supply customized name plate.






Company Information

Photos of  Company:

Production:





Certificate: ISO9001:2008, CE


FAQ

Material for Casing:: Cast Iron or Stainless Steel

Material for Gear: 45# Steel, Bronze, or Stainless Steel

Voltage: 220v  or 380v, 480v

Guarantee: One year, except the spare parts (like gear and sealing)

Why chose YONJOU Pump, any advantages?

Check the below comparison chart:
