Brand Name: YONJOU
Model Number: BB BBG
Place of Origin: Zhejiang, China (Mainland)

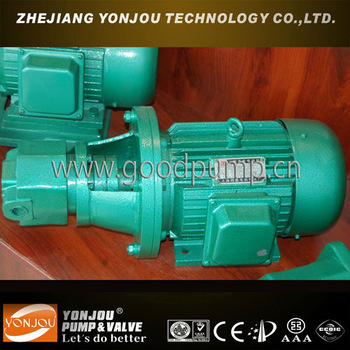

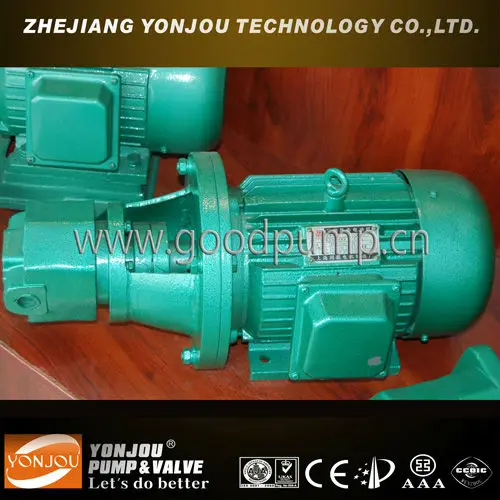

BBG Cycloid Inner Clutch Hydraulic Gear Pump is a positive displacement internal gear pump, and the internal gear (i.e., the outer rotor) is a circular arc tooth profile, the external gear (i.e., the inner rotor) for the short pieces of outer cycloid new gear pump.
Due to the simple structure of the pump, low noise, oil steady, self-priming performance characteristics of a good high-speed, low pressure in the hydraulic system is widely used as a power pump or lubrication pump cooling pump, the pump for conveying various oils.
Product Features:
Simple structure, low noise, oil steady, good high-speed self-priming performance.
Performance:
Flow range: 4L/min ~ 125L/min
Pressure range: 245m
Motor power: 0.55kw ~ 175kw
Model significance:
BBG50 (G, N, P)
BB ------- cycloid gear pump
G ----------- with motor
50----------- rated flow (L / min)
G, N, P ------- special-purpose symbol (G: high-temperature type; N: with pressure relief valve; P: stainless steel)
