YCB High Temperature 400 Degree Heat Preservation Resin Bitumen Gear Pump Boiler Chemical Pump YCB High Temperature 400 Degree Heat Preservation Resin Bitumen Gear Pump Boiler Chemical Pump

YCB High Temperature 400 Degree Heat Preservation Resin Bitumen Gear Pump Boiler Chemical Pump

FOB Price:
US 212-9800 / Piece
Min.Order Quantity:
1 Piece/Pieces
Supply Ability:
50 Piece/Pieces per Month
Port:
Ningbo/Shanghai/Fujian/Shenzhen
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
L/C,T/T,Western Union
Brand:
YONJOU
Products Model:
YCB
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: YONJOU

    Model Number: YCB

    Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

  • Packaging Details: plywood case or carton per high temperature gear pump
  • Delivery Detail: 15 days from receiving payment (according to order quantity)

Specifications

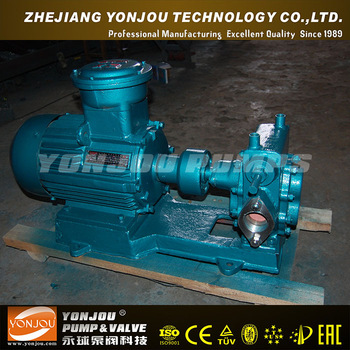

YCB  Bitumen Gear Pump/ Boiler Chemical Pump ( high temperature gear pump)



~YCB Series circle arc gear oil pump is suitable to transfer various lubricant oils and other liquids similar to lubricant oils without solid grain and fiber and oil viscosity is 5-1500CST. Pump material: cast iron/steel (For oils which temperatures are not higher than 80 degree celsius)and stainless steel (For oils which temperatures are not higher than 200 degree celsius and corrosive liquids and drinks and oils etc without lubricant. And stainless steel pump with bronze gears can be used for liquids with low flash point such as gasolene and benzene etc. YCB Pump can matched normal motor and explosion proof motor.
~YCB Series circle arc gear oil pump is used to transfer lubricant oil and boost in oil system and transfer and boost and injection in fuel oil system and used as hydraulic pump in hydraulic drive system etc. YCB is widely used as lubricant oil pump in industry field.



YCB gear pump is a kind of Head preservation specialty pump.



Specification:

Capacity range: 17~850 l/min

Pressure range: 0.3~2.5Mpa

Caliber range: 20~100mm

Power range: 0.75~18.5kW

Max medium temperature: 400°C

Material : Stainless steel









Technical Data:

Model Capacity (L/min) Pressure (bar) Vacuum    (-bar) Diameter (Inch) Power  (kw) Speed (r/min)
YCB-17/10 17 10 3.5 3/4″ 0.75 1450
YCB-16/25 16 25 3.5 3/4″ 1.5 1450
YCB-32/10 32 10 3.5 1″ 1.5 1450
YCB-30/25 30 25 3.5 1″ 3 1450
YCB-45/10 45 10 3.5 1″ 2.2 1450
YCB-42/25 42 25 3.5 1″ 4 1450
YCB-65/10 65 10 3.5 1" 1/4″ 3 1450
YCB-60/25 60 25 3.5 1" 1/4″ 5.5 1450
YCB-110/10 110 10 3.5 1" 1/2″ 4 1450
YCB-100/25 100 25 3.5 1" 1/2″ 7.5 1450
YCB-122/3.3 122 3.3 3.5 2″ 4 1450
YCB-190/3.3 190 3.3 3.5 2″ 4 1450
YCB-180/6 180 6 3.5 2″ 5.5 1450
YCB-270/6 270 6 3.5 3″ 5.5 960
YCB-430/3.6 430 3.6 3.5 3″ 7.5 1450
YCB-400/10 400 10 3.5 3″ 11 1450
YCB-583/2.8 583 2.8 3.5 4″ 11 960
YCB-850/3 850 3 3.5 4″ 18 1450

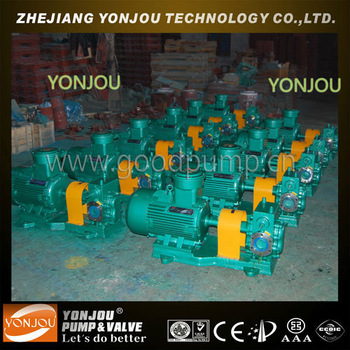

Production Flow

>>>Production Flow:









Packaging & Shipping

>>>Our package: strong enough during delivery by air or by sea for long time

Small pump: Styrofoam with Carton Box

                   (If has several cartons, we will use plastic film and steel bar to package them together )

Big pump: Plywood Case or Steel Bar with Plastic Film

                  (One set  per Case or Several sets per Case, according to the pump size and quantity, or customer's request)











Testing

>>>Testing

We guarantee that every pump will be tested before delivery.









Company Information

>>>Zhejiang Yonjou Technology Co., Ltd  is manufcaturer with 105 emloyees.

It was established in 1995,  located in Yongjia country, Wenzhou city, Zhejiang province, borders Lishui on the west, Taizhou on the north, and Fujian to the south.

Our company is specialized in manufacturing high quality  oil pump, diaphragm pump, Diesel engine pump set, split& single stage& multistage centrifugal pump etc.

>>>Office&Workshop

>>>Customers' Visiting:







>>>Trade Show:







>>> Certificate:











FAQ

>>>FAQ

1. How to get our quotation in time, pls answer following questions:

    1)What liquid do you transfer? Oil, Water, Food or Corrosive Chemical liquid, with solid particle or not, and so on~

   2) What's the flow or capcity (m3/h, L/m)?

   3) What's the discharge head (m, feet, Mpa, bar )

 If you do not have any request, we will do as our normal standard.

4) Contact us to get the quotation

2.OEM: Ok

3. MOQ: 1set

4. Package: Standar export Plywood Case or Styrofoam with Carton

5. Shipping ways: By sea, By air, By express

6. Lead time: 3-15days

7. Term of  payment:  100% T/T, Aliexpress,  L/C, Westunion

8Warranty Period: One year, except spare parts

9. Why choose YONJOU:  26years experiences manufacturer

                                      Good quality with competitive pirce

                                      ISO2009:8001, CE certificate

                                      Professional after-sales service



10. Warranty Period:

1) Please operate according to pump productdescription. If you have any questions of pumps,  kindly contact us, we willofferyouthe mostprofessional and the best service.

2) We guarantee our products for a period of ONE YEAR from date of dispatch from our factory (The warranty doens't apply to wearing parts).
