Brand Name: CABLECRAFT/PHIDIX
Model Number: Customed
Place of Origin: Shanghai, China (Mainland)
[Twist Lock Push-Pull Control Head]
Description: Applications: Features:
Twist Lock • Engine shut down • Load: 100lb maximum
Industrial Push-Pull • Engine choke • Travel: 3.00" maximum
Control Head • Latch operation • Threaded mount
• Valve operation
Material: End Fittings:
• Plated Carbon • See Hardware/End
Steel Corrosion- Fittings or Call
Proof Control Headsob Factory for More Information
[Control Head Industrial]
These twist lock control heads are a robust and simple design —only one moving part. The T-handle is free to travel the full length of the control until locked. Rotating the T-handle 1/8 turn in either
direction along the travel will secure loads up to 100lb, and yet unlocks with ease. They are cost effective solutions to mechanically connecting and locking a manual input source to a remote output, especially when space is limited or rod linkage and bell cranks are not suitable choices. The ordering code and technical description shows the numerous choices available to meet customer requirements.
[Twist Lock]

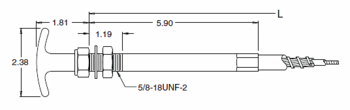

All line art dimensions are represented in inches
PHIDIX company became the partner of TUTHILL China group in the early 2004. And just after the independent of control group, PHIDIX became the only authorized "Global Assembler"certification, responsible for the production, assembly, sales, technical support, after-sales service, acted as the multi functional management and development center. For the convenience of management and provide better service and technical support for the terminal clients, PHIDIX, in September 2011, incorporated the wholly owned subsidiary of "PHIDXI motion control technology (Shanghai) Co., Ltd." for drive control technology R&D, production and operations management. PHIDIX Traing Co., Ltd. Is acted as the imported parts procurement platform. At the same time, it takes the domestic terminal customer development and maintenance tasks as well.
If you are interested in our products,please tell us which model,quality you want to order.
A performa invoice will be made for your order.
We will deliver the product ASAP when we receive your payment.
Lead time usually within 25working days.
Please contact us without hesitation, we are pleased to welcome to you!!!
