Brand Name: YONJOU
Model Number: D,DG,TSWA
Place of Origin: Zhejiang, China (Mainland)

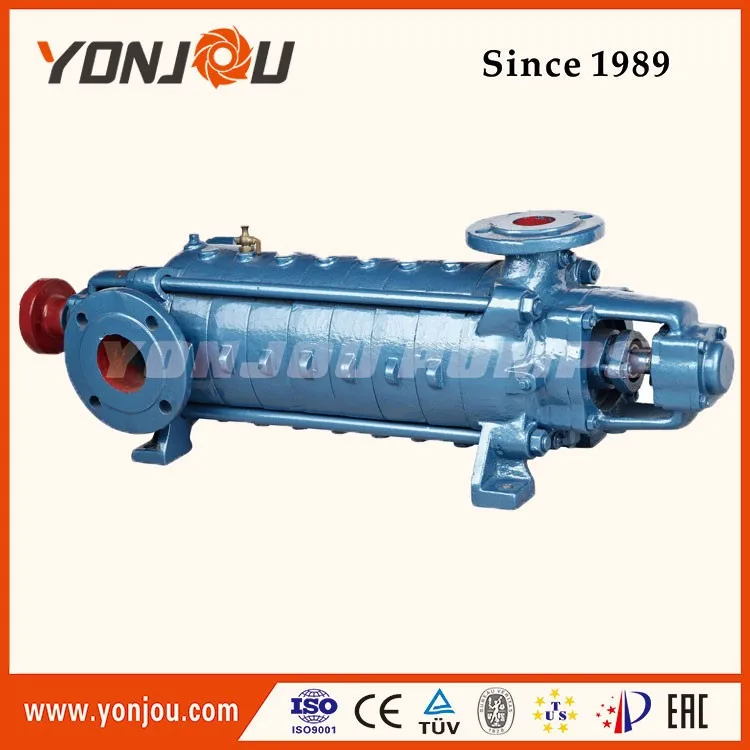

High pressure horizontal multistage centrifugal pump
Summarize:
1.High pressure horizontal multistage centrifugal pump is compact structure, stable running, low noise, convenient operation.
2. It is used to deliver clear water without solid particles or liquid similar to clear water physically and chemically with the temperature range from 0°C~80°C(32°F~176°F).
3. The inlet is horizontal direction.
4. It's applicable for water supply and drainage works in mines, plants and cities.

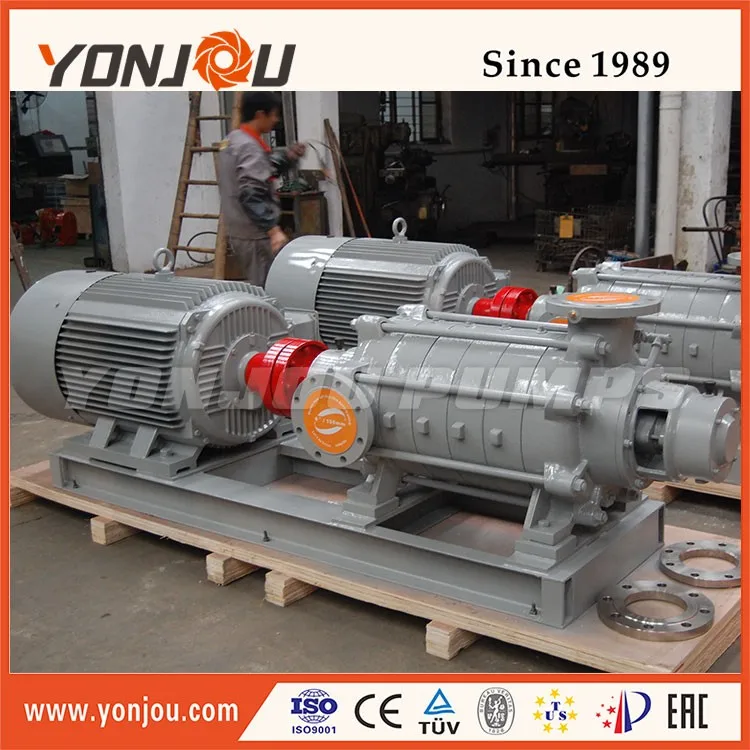

5. Pump ends of it is supported, the casing portion is in a sectional form, it is connected to and actuated by a motor via a resilient clutch and the rotating direction of it, viewing from the actuating end, is clockwise.
6. The shaft seal of D type pump can be with soft packing or mechanical seal. The material through which liquid passes is made from cast iron or bronze or stainless steel.
Application:
The D high pressure pumps apply to transport water and other water-like liquids whose impurity content is lower than 1% and grit size is smaller than 0.1mm and whose chemical and physical characteristics is similar to clean water.
1. Water supply and discharge in factories and mines
2. Water supply and discharge in high-rise buildings
3. Long distance delivery
4. Cyclic pressurization in production
Product details:
Working Principle: |
Centrifugal, Multi-stage |
Main applications: |
Water, hot water |
Driver: |

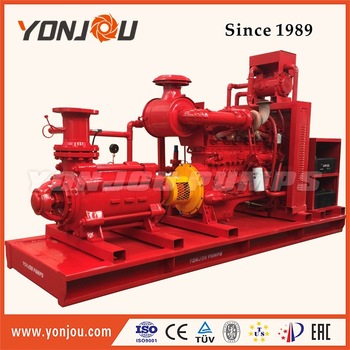

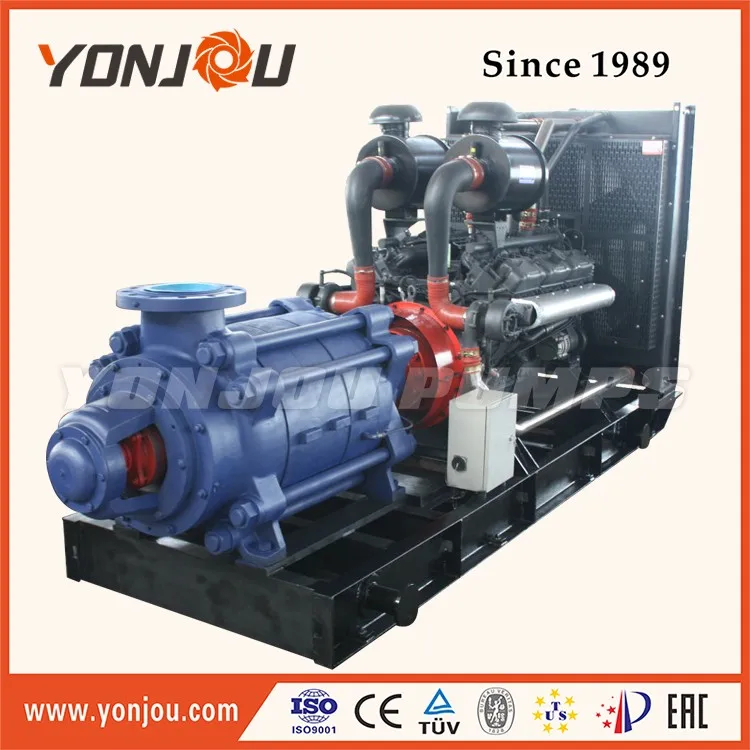

Electric motor, diesel motor |
Power Specs: |
220V/380/415V 3phase;50hz/60hz |
Max. permissible fluid temperature: |
80°C(176°F) or 105°C(221°F) hot water type |
Type of connection: |
Flange |
Installation position: |
Horizontal |
Pump casing material: |
Ductile iron, Stainless steel |
Impeller material: |
Ductile iron, Stainless steel, Bronze |
Shaft seal type: |
Mechanical seal; Packing seal |
Maximum drive rating: |
1120kW(1495HP) |
Maximum caliber: |
250mm(10inch) |
Maximum discharge-side pressure: |
10.5MPa(105bar) |
Maximum head: |
1056m(3463.7ft) |
Flow rate range: |
3.75-540m3/h(16.5-2376US.GPM) |

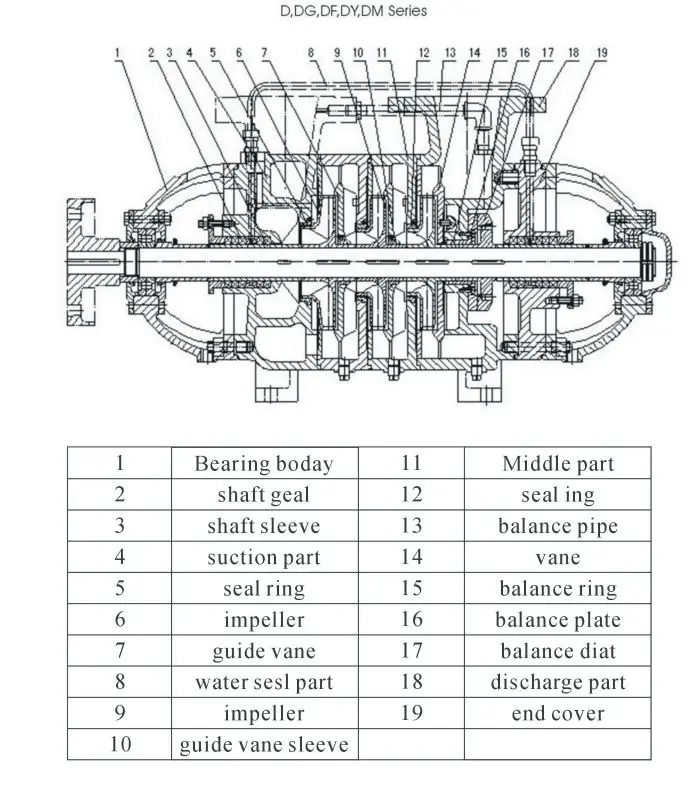

Internal structure of horizontal multistage pump:
| Model | Stage | Capacity Q(m3/h) | Head H(m) | Speed (r/min) | Power (KW) |
| 50D8 | 2 | 18 | 19 | 2950 | 2.2 |
| 3 | 18 | 28.5 | 2950 | 3 | |
| 4 | 18 | 38 | 2950 | 4 | |
| 5 | 18 | 47.5 | 2950 | 5.5 | |
| 6 | 18 | 57 | 2950 | 5.5 | |
| 7 | 18 | 66.5 | 2950 | 7.5 | |
| 8 | 18 | 76 | 2950 | 7.5 | |
| 9 | 18 | 85.5 | 2950 | 7.5 | |
| 10 | 18 | 95 | 2950 | 11 | |
| 11 | 18 | 104.5 | 2950 | 11 | |
| 12 | 18 | 114 | 2950 | 11 | |
| 80D12 | 2 | 32.4 | 22.7 | 2920 | 3 |
| 3 | 32.4 | 34.05 | 2920 | 5.5 | |
| 4 | 32.4 | 45.4 | 2920 | 7.5 | |
| 5 | 32.4 | 56.75 | 2920 | 7.5 | |
| 6 | 32.4 | 68.1 | 2920 | 11 | |
| 7 | 32.4 | 79.45 | 2920 | 15 | |
| 8 | 32.4 | 90.8 | 2920 | 15 | |
| 9 | 32.4 | 102.15 | 2920 | 15 | |
| 10 | 32.4 | 113.5 | 2920 | 18.5 | |
| 11 | 32.4 | 124.85 | 2920 | 18.5 | |
| 12 | 32.4 | 136.2 | 2920 | 18.5 |
Note:For more detail contact with us.
