Induction proximity transducer, metal detecting device,long distance detection

Induction proximity transducer, metal detecting device,long distance detection

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

1000 Piece/Pieces per Day

Port:

Shenzhen

Place of Origin:

Hunan, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

F&C

Products Model:

F3N-25TN10-N R2M

Products Details
Company Profile

Quick Details

Brand Name: F&C

Model Number: F3N-25TN10-N R2M

Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

Packaging Details: 16*16*9 cm
Delivery Detail: Shipped in 7 days after payment

Specifications

Know more information about the product,welcome to contact me at any time via Skype:Lulu_Lu1995 or cellphone:86-15173188970

Feature of F3N Series Square proximity sensor

1.High performance and favourable price,
2.12~24VDC power supply,build-in amplifier,
3.LED diaplay,Clear and easy to see ,
4.Imported electronic components ,

5.5V Operating voltage and different frequency of product can be customized

All these make F&C inductive proximity switch sensor have stable quality ,durable and friendly to use.that is the reason why more and more factory choose F&C brand

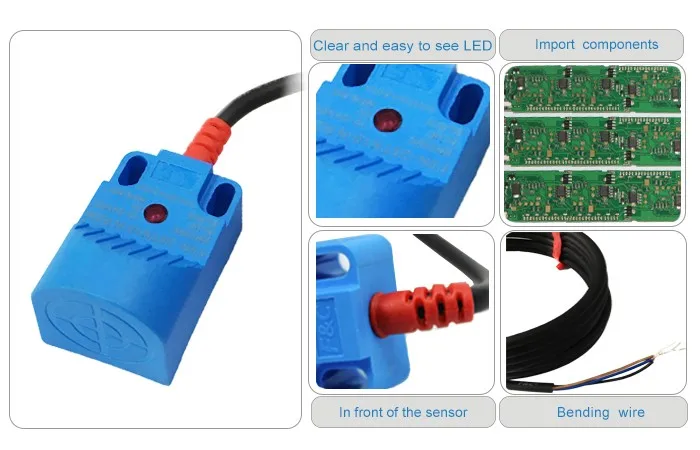

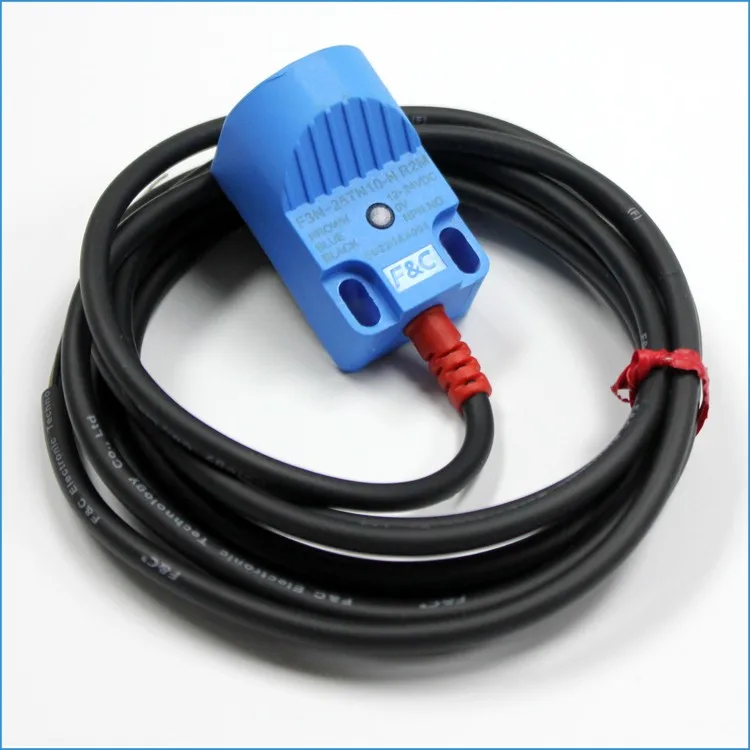

Product display

Specification

Model	F3N-25DN10-N R2M F3N-25DN10-N2 R2M F3N-25DN10-P R2M F3N-25DN10-P2 R2M	F3N-25DN10-N/15D R2M F3N-25DN10-N2/15D R2M F3N-25DN10-P/15D R2M F3N-25DN10-P2/15D R2M
Type	Straight outlet	Connector
Detection distance	20mm
Recommened distance	16mm
Standard Detection object	60601(Iron)
Response frequency	600Hz
Hysteresis	≤10% Detection distance
Operating voltage	12-24VDC(customize 5V)
Current consumption	<10mA
Load current	24V 100mA Max
Leakage voltage	<1.0VDC No-load
Protection circuit	Power anti-received protection and short circuit protection
Operating Temperature	-25℃-+70℃
Waterproof degree	IP67
Material	PBT/ABS
Wiring method	φ4.0×2M/3-wires/φ4.0×2M/2-wires

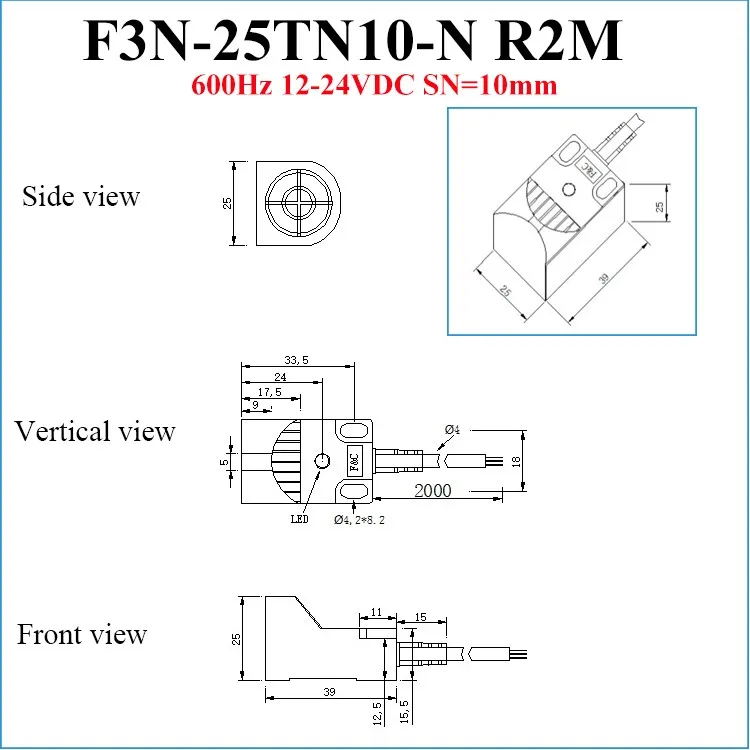

Dimension Drawing

F&N Square proximity switch sensor coding rule

F3N	F3N: Third generation,Standard type
25	Product size:18181mm
T	D: Above induction T: Front induction
N	N: Non-shield S: shield
10	Sensing distance (01,02,04,05,10,15,20 available)
N	N: NPN NO N2:NPN NC P:PNP NO P2:PNP NC
R	soft cable
2M	2M cable(cable length can be customized)
