Alarm with proximity sensor,Waterproof metal detector sensor,Above induction

Alarm with proximity sensor,Waterproof metal detector sensor,Above induction

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

1000 Piece/Pieces per Day

Port:

Shenzhen

Place of Origin:

Hunan, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

F&C

Products Model:

F3N-08DN02-N R2M

Products Details
Company Profile

Quick Details

Brand Name: F&C

Model Number: F3N-08DN02-N R2M

Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

Packaging Details: 16*16*9 cm
Delivery Detail: Shipped in 7 days after payment

Specifications

Product Description

Feature of F3N Series Square proximity sensor

1.High performance and favourable price,
2.12~24VDC power supply,build-in amplifier,
3.LED diaplay,Clear and easy to see ,
4.Imported electronic components ,

5.5V Operating voltage and different frequency of product can be customized

All these make F&C inductive proximity switch sensor have stable quality ,durable and friendly to use.that is the reason why more and more factory choose F&C brand

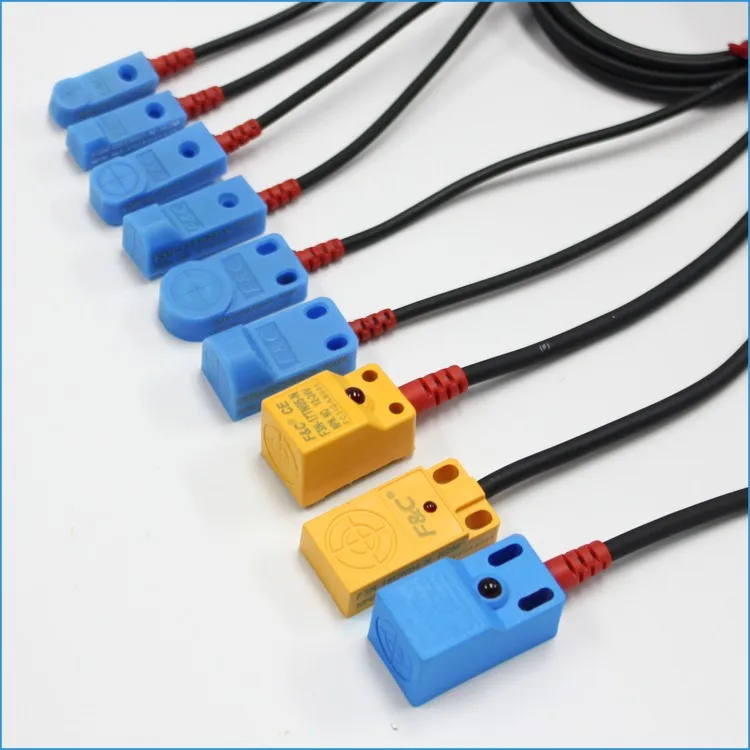

Product display

Specification

Model	F3N-08TN02-N R2M F3N-08TN02-N2 R2M F3N-08TN02-P R2M F3N-08TN02-P2 R2M	F3N-08DN02-N F3N-08DN02-N2 F3N-08DN02-P F3N-08DN02-P2
Type	Front induction	Above induction
Detection distance	2mm
Recommened distance	1.6mm
Standard Detection object	881(Iron)
Response frequency	600Hz
Hysteresis	≤10% Detection distance
Operating voltage	12-24VDC(customize 5V)
Current consumption	<10mA
Load current	24V 100mA Max
Leakage voltage	<1.0VDC No-load
Protection circuit	Power anti-received protection and short circuit protection
Operating Temperature	-25℃-+70℃
Waterproof degree	IP67
Material	PBT/ABS
Wiring method	φ4.0×2M/3-wires/φ4.0×2M/2-wires

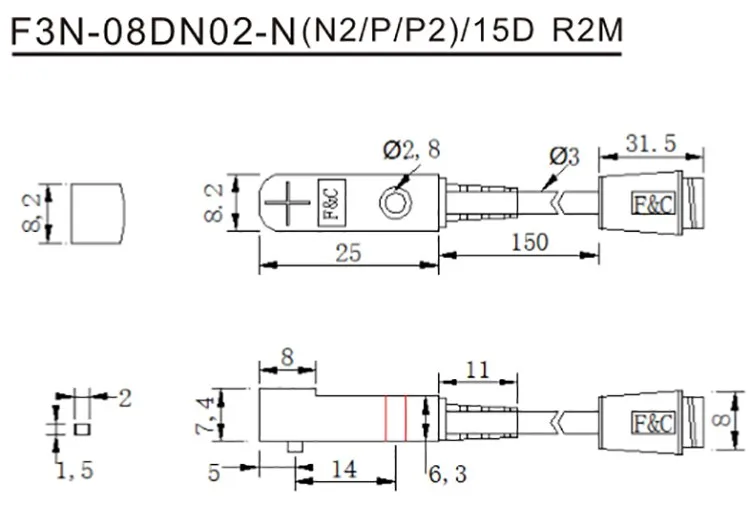

Dimension Drawing

F&N Square proximity switch sensor coding rule

F3N	F3N: Third generation,Standard type
08	Product size:881mm
D	D: Above induction T: Front induction
N	N: Non-shield S: shield
02	Sensing distance (01,02,04,05,10,15,20 available)
P	N: NPN NO N2:NPN NC P:PNP NO P2:PNP NC
R	soft cable
2M	2M cable(cable length can be customized)

Certifications

F&C Electronics established a new company in changsha of Hunan province for produce in 2013, we specialized in making sensors. such as: fiber optical sensors, fiber amplifiers, photoelectric sensors, proximity sensors, laser sensors, color sensors etc.
Our current sensors have been widely used in industrial machinery and equipment, light industry, shoemaking industry, textiles, chemical, petroleum, tobacco, food industry, metallurgy,electric power field, for the purpose of limiting, position detection, automatic counting, speed measuring, automatic protection, signal transmission, protection, or isolation.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
