plastic npn 850um infrared diffuser type M18 photoelectric sensor

plastic npn 850um infrared diffuser type M18 photoelectric sensor

FOB Price:

US 7-15 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

50000 Piece/Pieces per Month

Port:

Guangzhou; Shenzhen

Place of Origin:

Hunan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Brand:

F&C, F&C

Products Model:

DR18RI-S40N

Products Details
Company Profile

Quick Details

Brand Name: F&C, F&C

Model Number: DR18RI-S40N

Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

Packaging Details: plastic npn 850um infrared diffuser type M18 photoelectric sensor Standard export package or customized package
Delivery Detail: Shipped in 7 days after payment

Specifications

plastic npn 850um infrared diffuser type M18 photoelectric sensor

Product Description

Specifications for light photoelectric sensor:

Model	DR18RI-S40N R2M
Output Method	NPN NO
Detection Type	Diffuse
Standard Detection Object Size	10cm*10cm(White Paper)
Detection Distance	40cm
Light Source	850nm Infrared modulated light
Operating Voltage	12-24 VDC
Response Time	0.5ms Max.
Current Consumption	15mA Max.
Load current	100mA Max at 24 VDC
Insulation Resistance	20M Ohm Min. at 500 VDC
Dielectric strength	60 seconds at 1000VAC 60HZ
Protection Degree	IP66
Operating Temperature	-10℃-50℃(No Icing)
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Material	ABS
Wire Method	dia4*2M/-3wires
Weight	107g

Features and advantages for light photoelectric sensor:

1. Intelligent Type model, not effected by the angle of detection.

2. Powerful visible infrared Led light with 10mm spot.

3. A.P.R circuit .

4. Adjustable NO NC output.

5.OEM order accepted.

product drawing

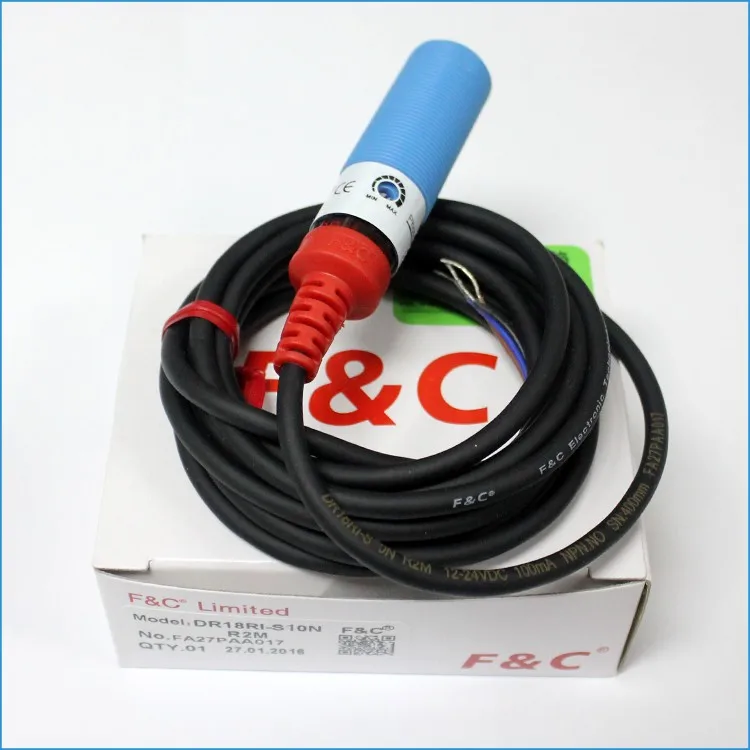

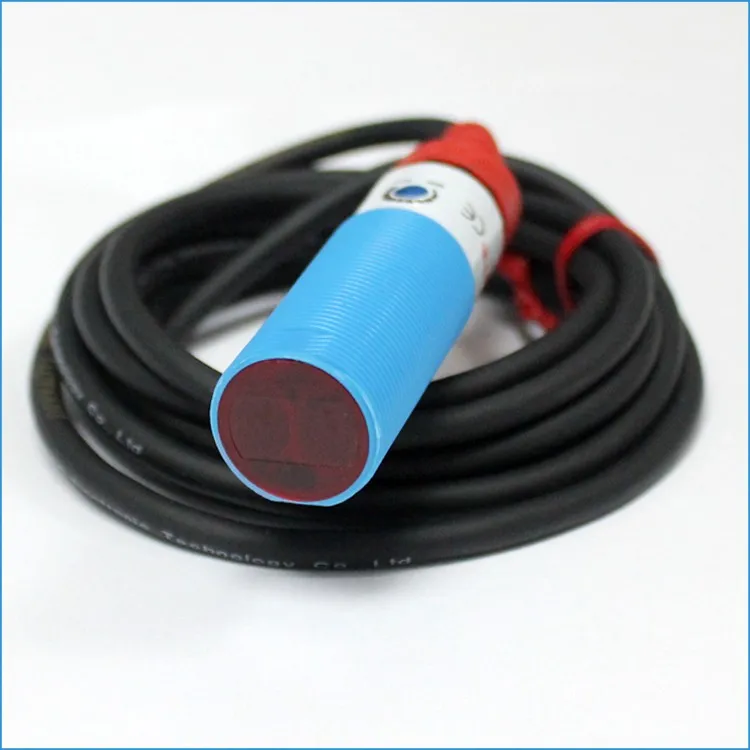

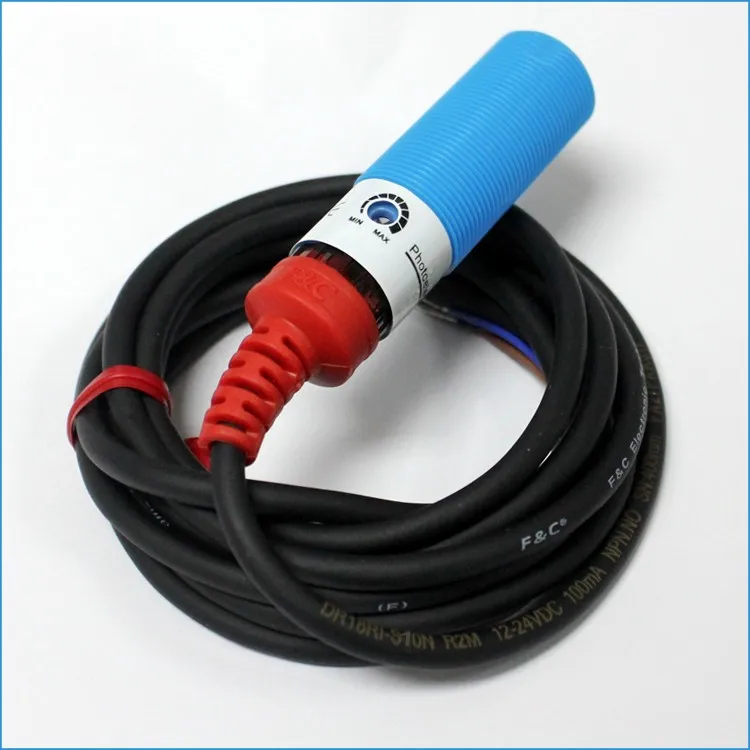

Photosfor light photoelectric sensor:

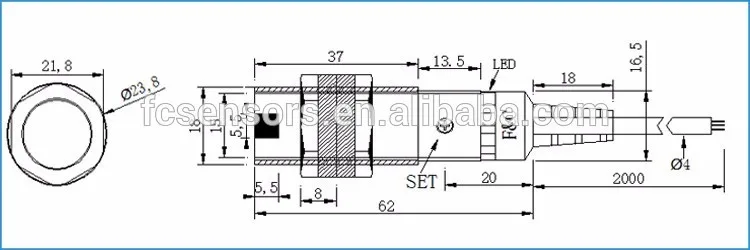

Dimesion for light photoelectric sensor:

F&C Electronics established a new company in changsha of Hunan province for produce in 2013, we specialized in making sensors. such as: fiber optical sensors, fiber amplifiers, photoelectric sensors, proximity sensors, laser sensors, color sensors etc.
Our current sensors have been widely used in industrial machinery and equipment, light industry, shoemaking industry, textiles, chemical, petroleum, tobacco, food industry, metallurgy,electric power field, for the purpose of limiting, position detection, automatic counting, speed measuring, automatic protection, signal transmission, protection, or isolation.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
