Diffuse round photoelectric sensor,diameter 12mm photo sensor,infrared reflective sensor

Diffuse round photoelectric sensor,diameter 12mm photo sensor,infrared reflective sensor

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

1000 Piece/Pieces per Day

Port:

Shenzhen

Place of Origin:

Hunan, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

F&C

Products Model:

DR12-15N

Products Details
Company Profile

Quick Details

Brand Name: F&C

Model Number: DR12-15N

Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

Packaging Details: 10*8*4 cm
Delivery Detail: Shipped in 7 days after payment

Specifications

I can be reached by cellphone:86-15173188970 and Skype:Lulu_Lu1995

Feature of DR series photoelectric switch

1.Small size,12mm diameter,easy to install

2.Three type:Through beam,mirror reflection,diffuse reflection.

3.Waterproof degree IP66,Integrated structure.Strong anti-interference ability

4.EN Standard product,PNP/NPN are available.

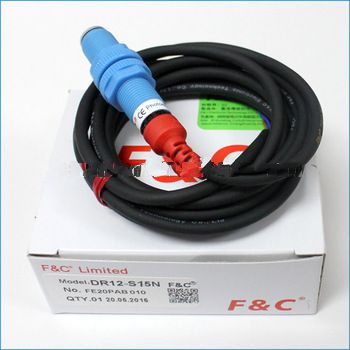

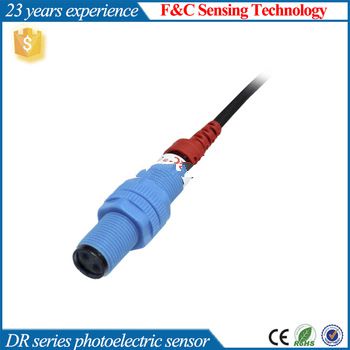

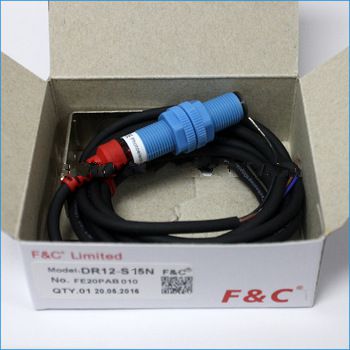

Product display

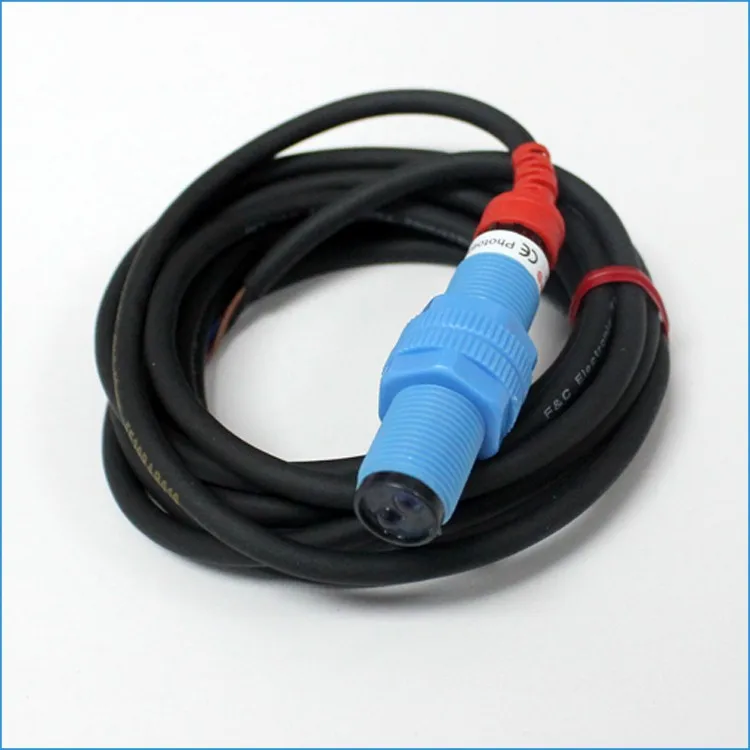

Diffuse photo sensor

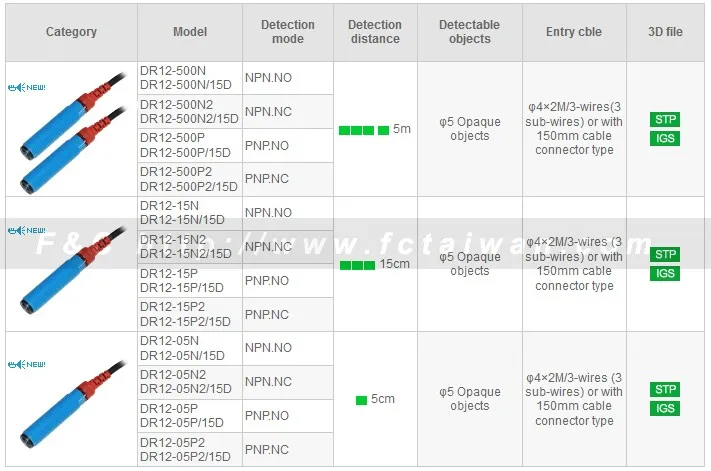

Model	DR12-15N R2M DR12-15N2 R2M DR12-15P R2M D12-15P2 R2M	DR12-05N R2M DR12-05N2 R2M DR12-05P R2M DR12-05P2 R2M
Detection distance	15cm	5cm
Light source	850nm infrared modulated light
Operating voltage	DC12-24V +-10%
Current consumption	15mA Max
Load current	100mA Max at DC 24V
Output type	N=NPN.NO N2=NPN.NC P=PNP.NO P2=PNP.NC
Protection circuit	Power anti-received protection and short circuit protection
Response time	0.5ms Max
Insolation resistance	20MΩmin.(DC500V)
Dielectric strength	AC1000V 60Hz for 60sec
Operating Temperature	-10°C-+50°C
Storage temperarure	-20°C~+60°C(No freezing allowed )
Operating humidity	35%-85% Relative humidity
Storage humidity	35%-95% Relative humidity
Waterproof degree	IP66
Material	ABS
Wiring method	φ4×2M/3-wires φ4×2M/2-wires φ4×2M/4-wires
Weight	Approx.107g

All thr product can customized M8 connector.

Dimension Drawing

Diffuse round photoelectric sensor,diameter 12mm photo sensor,infrared reflective sensor

Certification

F&C Electronics established a new company in changsha of Hunan province for produce in 2013, we specialized in making sensors. such as: fiber optical sensors, fiber amplifiers, photoelectric sensors, proximity sensors, laser sensors, color sensors etc.
Our current sensors have been widely used in industrial machinery and equipment, light industry, shoemaking industry, textiles, chemical, petroleum, tobacco, food industry, metallurgy,electric power field, for the purpose of limiting, position detection, automatic counting, speed measuring, automatic protection, signal transmission, protection, or isolation.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
