Q50 12-24Vdc NPN NO.NC rectangular diffuse photoelectric sensor with CE

Q50 12-24Vdc NPN NO.NC rectangular diffuse photoelectric sensor with CE

FOB Price:

US 1-20 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Month

Port:

Guangzhou,Shezhen

Place of Origin:

Hunan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Brand:

F&C

Products Model:

HRRI-S40NC R2M

Products Details
Company Profile

Quick Details

Brand Name: F&C

Model Number: HRRI-S40NC R2M

Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

Packaging Details: Standard exporting package; customized exporting package
Delivery Detail: Shipped in 5 days after payment

Specifications

Q50 series 12-24Vdc NPN NO.NC rectangular diffuse photoelectric sensor with CE

Product Description

Feature:

*Dimension:50*50*18mm,
*DC 4-wires(12-24VDC+/-10%) ,customize 5VDC model
*NPN NO. NC

*Reflection Type:Diffuse
*Detection distance:40cm
*Circuit Protection: polarity reverse and short-circuit protection
*Protection Grade: IP66
*Connection Method:Pre-wired 2m cable, pre-wired 150mm cable and M8 connector

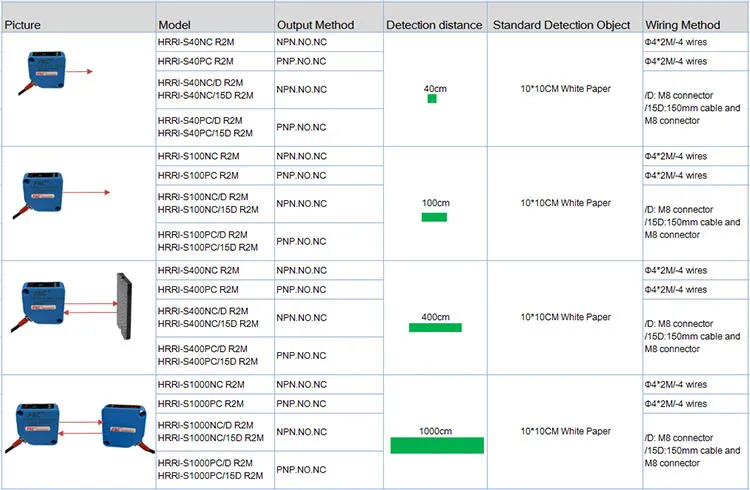

Product Specification

Model	HRRI-S40NC R2M HRRI-S40PC R2M	HRRI-S100NC R2M HRRI-S100PC R2M	HRMR-S400NC R2M HRMR-S400PC R2M	HRTI-S1000NC R2M HRTI-S1000PC R2M
Output Method	NC:NPN NO+NC PC:NO+NC
Detection Type	Diffuse	Diffuse	Retro-reflective	through-beam
Standard Detection Object	10*10cm white paper		Diameter 5mm Opaque Object

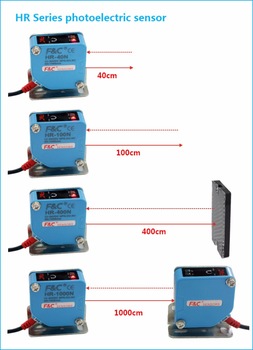

Detection Distance	40cm	100cm	4m	10m
Light Source	850nm infrared modulated light		630nm Red modulated light	850nm infrared modulated light
Operating Voltage	12-24 VDC
Response Time	0.5ms Max.
Protection Degree	IP66
Operating Temperature	-10℃-50℃ (No Icing)
Circuit Protection	Reverse Polarity and Short Circuit Protection
Material	ABS
Wire Method	dia4*2M/-4wires

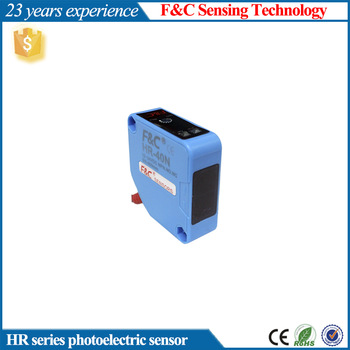

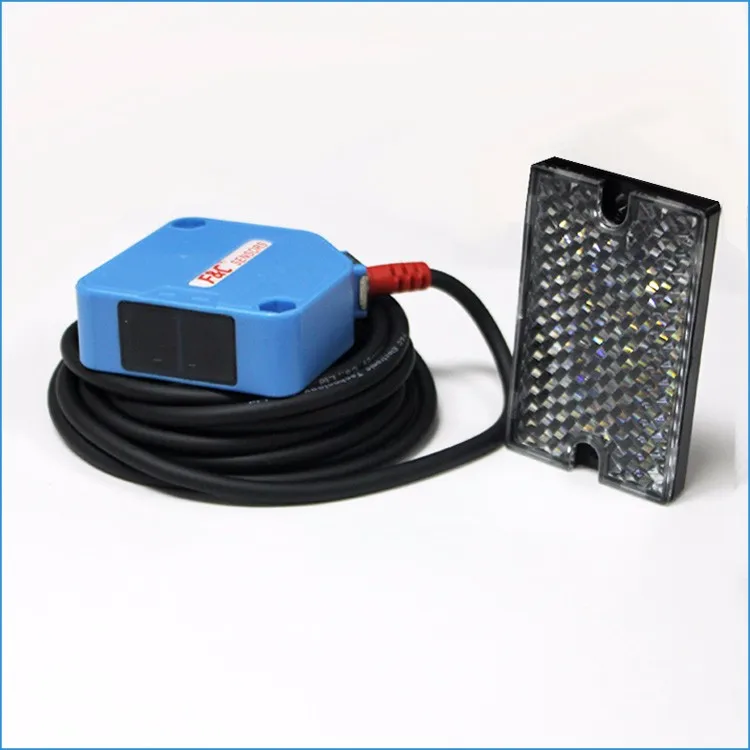

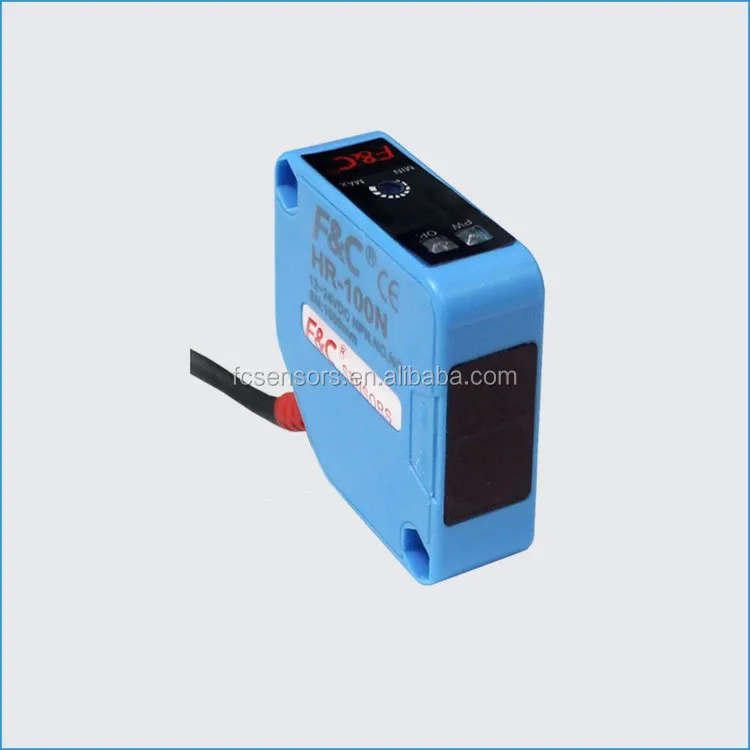

Product display

Product Drawing

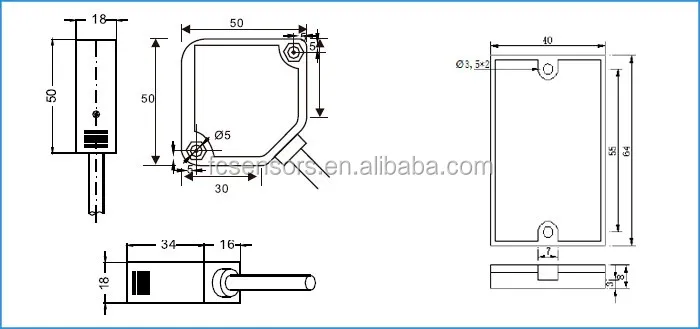

Dimension Drawing
