12-24VDC NPN PNP mininature through-beam photoelectric sensor with CE

12-24VDC NPN PNP mininature through-beam photoelectric sensor with CE

FOB Price:

US 1-20 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Month

Port:

Guangzhou,Shezhen

Place of Origin:

Hunan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,fingertip size 12-24VDC NPN PNP through-beam photoelectric senso

Brand:

F&C

Products Model:

PJTI-S150N R2M

Products Details
Company Profile

Quick Details

Brand Name: F&C

Model Number: PJTI-S150N R2M

Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

Packaging Details: Standard exporting package; customized exporting package
Delivery Detail: Shipped in 5 days after payment

Specifications

Fingertip size 12-24VDC NPN PNP through-beam photoelectric sensor with CE

Product Description

Feature

* Dimension:22*11*8mm,suitable for narrow space installation

*PNP or NPN

*Standard Sensing Object:5*5cm white paper

*Detection Method:through-beam

*Detection distance:1500mm
*Circuit Protection: polarity reverse and short-circuit protection
*Protection Grade: IP40
*Connection Method:Pre-wired 2m cable, pre-wired 150mm cable and M8 connector

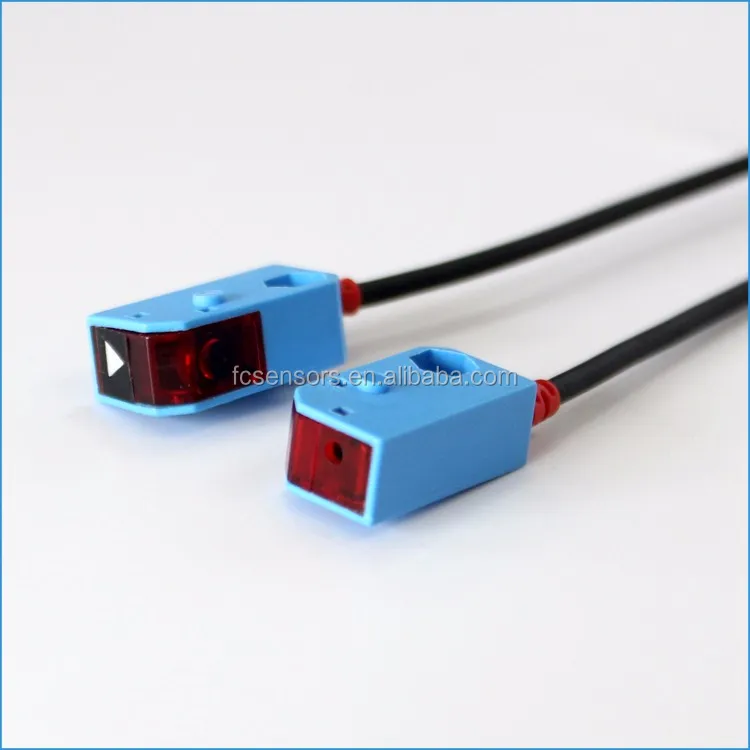

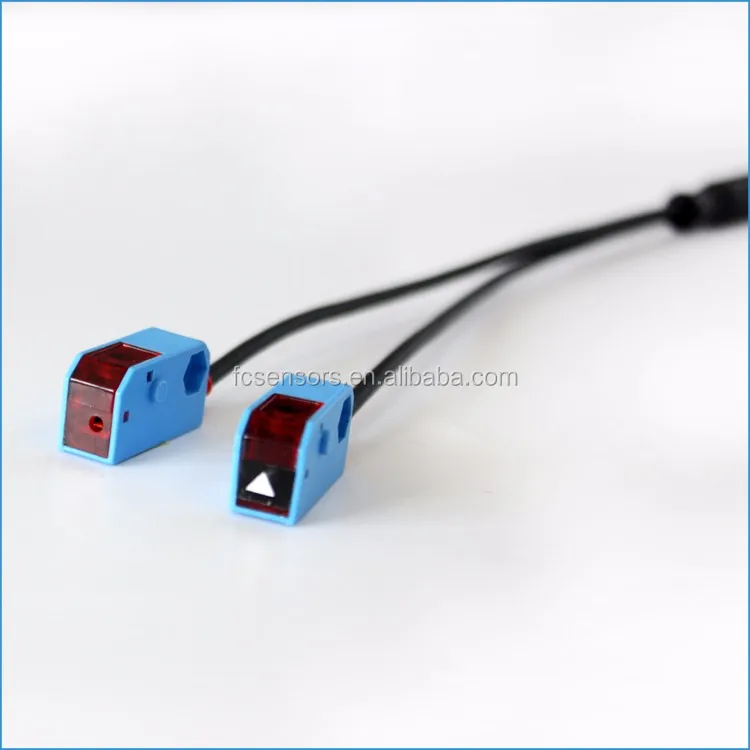

Product display

Fingertip size 12-24VDC NPN PNP through-beam photoelectric sensor with CE

Product specification

Model	PJTI-S150N R2M(NPN NO) PJTI-S150P R2M(PNP NO)	PJRI-S10N R2M (NPN NO) PJRI-S10P R2M (PNP NO)
Detection Type	Through-beam	Diffuse
Standard Detection Object	5*5cm white paper
Detection Distance	1500mm	100mm
Light Source	940nm Infrared modulated light
Operating Voltage	12-24 VDC
Response Time	0.3ms Max.
Protection Degree	IP40
Operating Temperature	-10℃-50℃ (No Icing)
Circuit Protection	Polarity reverse and Short Circuit Protection
Material	ABS
Wire Method	diameter 3mm*2M/3-wire or 2-wire

Our Services

1.Prompt reply to our customer, we have to reply all the email within 24hrs

2.18 month quality warranty, provide free replacement if there is any quality problem with our product.

3. Most economical shipping method will be choose to save the freight for our customer.

4. Accept OEM Order, Ship product with your logo.

Packaging & Shipping

We will ship our product aboard with standard export package.

For small Qty, We will Ship our product to you by express.

For mass production , We will ship our product to you by Air or sea.

Company Information

F&C Sensing Technology originated from Taiwan is a professional sensor manufacturer with 23 years experience in sensor field.Our factory has a rich experience engineer team and owns over 30 patents. Our products cover 14 series and 5000 specification.

main product :fiiber optic amplifier, fiber optic sensor, fiber opic lens, proximity sensor, photoelectric sensor,

laser sensor,laser displacement sensor, color mark sensor,Label Sensor, Light Curtain, Laser projector, pressure switch, magnetic sensor, female connector, din-rail power supply, solid state relay.

F&C Technology has been making continuous breakthrough in new technology and new material application.

We hope we can provide one-stop service for your customer and extend our product line , then all you need can be shipped from F&C Sensing Technology.

Welcome to contact me. I can be reached by Skype:lynn_liu123 and cellphone:+8613809275350

F&C Electronics established a new company in changsha of Hunan province for produce in 2013, we specialized in making sensors. such as: fiber optical sensors, fiber amplifiers, photoelectric sensors, proximity sensors, laser sensors, color sensors etc.
Our current sensors have been widely used in industrial machinery and equipment, light industry, shoemaking industry, textiles, chemical, petroleum, tobacco, food industry, metallurgy,electric power field, for the purpose of limiting, position detection, automatic counting, speed measuring, automatic protection, signal transmission, protection, or isolation.
