Brand Name: Anlabeier, Anlabeier
Model Number: TPS-31, TPS-31 instant electric water heater
Place of Origin: Guangdong, China (Mainland)
Model |
TPS-31 |
Water heater design |
Whole house |
Water heater application |
General purpose |
Residential/commercial |
residential |
Mounting |
wall |
Storage |
Tankless |
Heating type |
Instant |
Certification |
CB, CE, EMC, EMF, CCC |
Watts |
1.0-5.5KW |
Amps AC (for 220VAC) |
5A to 25A |
Voltage |
220VAC to 240VAC |
Pressure range |
0.2 to 6 bar/0.02 to 0.6 MPa |
Temp range |
77-131 Degrees F/26-55 Degrees C |
Max Flow rate |
6 L/min |
Min. Flow rate |
2 L/min |
Wire size |
8awg |
Water connections |
1/2” BSP |
Element type |
Red copper Tubular element |
Protection class |
IPX4v |
Standard |
ETL Listed, ANSI/NSF 375 |
Mounting |
wall |

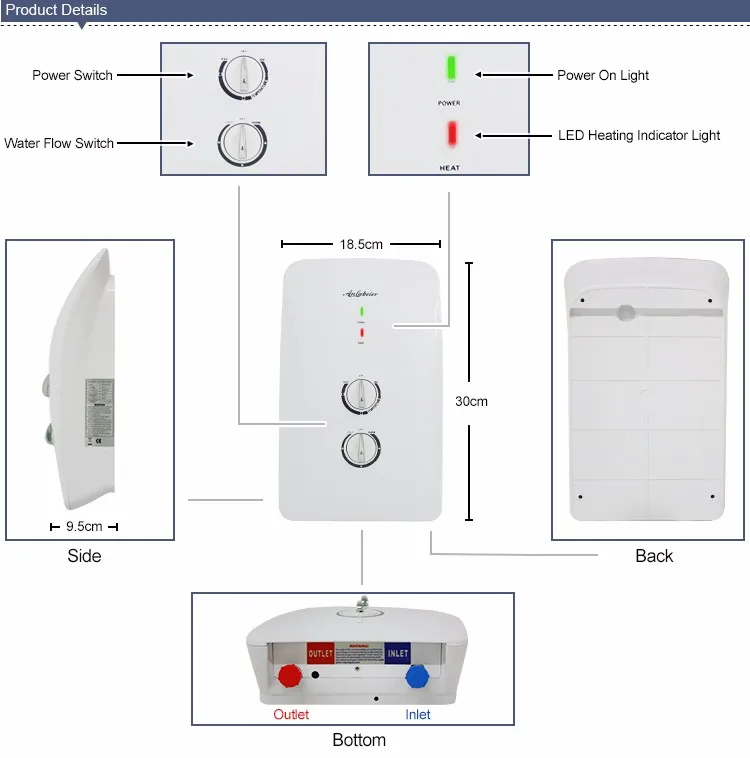

Dimensions H*W*D (mm) |
300*185*95 mm |
Box size (mm) |
305*265*110 mm |
Master carton size (mm) |
615*475*355mm |
Master carton quantity |
5 |
N.W |
1.2kg |
G.W |
1.9kg |
Feature: |
instant, consistent, endless hot water, compact, resistant, stylish with external digital control, easy installation |
Includes |
copper immersion heating elements and with power modulation stability with digital controls and displays |
Accessories |
Filters, inlet and outlet water hoses, plastic adjust valve, shower head, shower base, e |
Safe & Secure
85°C dry heating protection; 55°C over temperature protection; when water flow rate is lower than the minimum operating volume, the water heater will stop heating to avoid dry burning and damage to the heater.
Grounding protection;
Red copper heating element system, Chip leakage protection; unique patented plate heater, with setup of the water and electricity isolation wall;
IPX4 waterproof degree;
Using ABS panel material is with the functions of insulation.
Water and electricity separation;
Mechanical manual reset two dry-heating protection
We Are Reliable

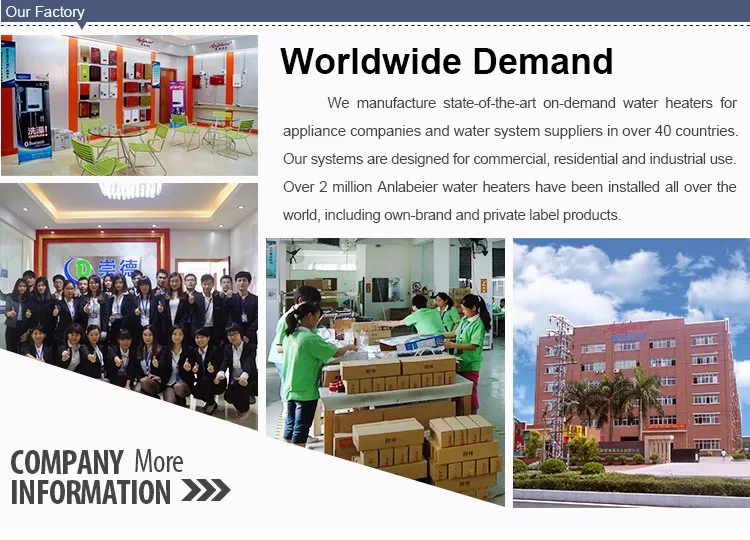

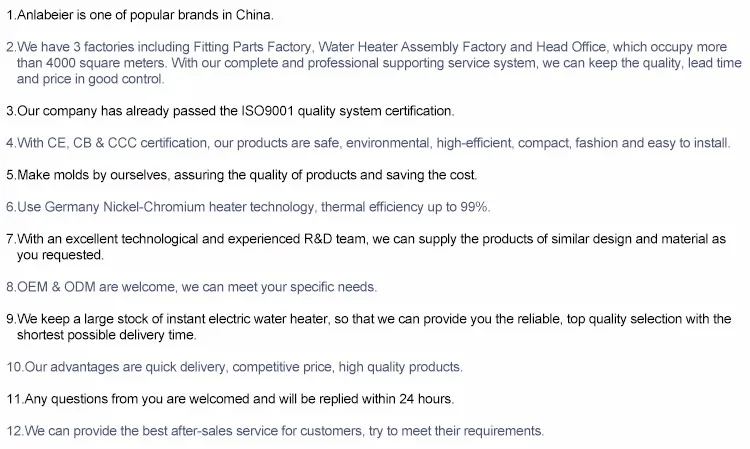

We have 3 factories including Fitting Parts Factory, Water Heater Assembly Factory and Head Office.
The factories occupies more than 4000 square meters. With our complete and professional supporting
service system, we can keep the quality, lead time and price in control.
