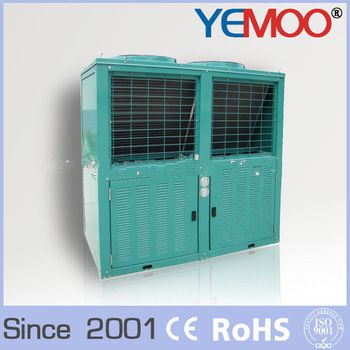

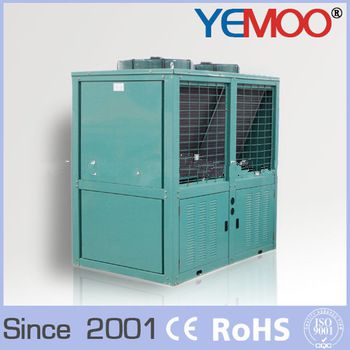

Hangzhou YEMOO Bitzer Copeland 15hp compressor box type air cooled water chiller price

Hangzhou YEMOO Bitzer Copeland 15hp compressor box type air cooled water chiller price

FOB Price:

US 800-1800 / Unit

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

2000 Unit/Units per Month

Port:

Shanshai/Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

YEMOO(air cooled water chiller )

Products Model:

YMB4-150V

Products Details
Company Profile

Quick Details

Brand Name: YEMOO(air cooled water chiller )

Model Number: YMB4-150V

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden Case
Delivery Detail: 1-7 days

Specifications

Product Description

Features of air cooled water chiller:

1.Box type air cooled water chiller, compact structure and good-looking figure;

2.Scientific designs, steady air flow, can fully exert heat-transfer capacity of air cooled water chiller;

3.Rational performance design, high energy efficiency;

4.Axial fan, good-looking figure, low processing noise level;

5.Convenient design for maintain (front board can be easily take down);

6.We keep in touch well with our air cooled water chiller supplier,

to guarantee material quality and production lead time of every order.

7.Various brand of compressor for your choice;

8.Fits different refrigerant: R134a·R404A·R507A·R22

Range of application of air cooled water chiller

Refrigeration industry, cold-room project

Agricultural, food, restaurants, chemical industry

Technical Data

Technical data	Box type condensing unit with V type condenser
Unit model	YMB4-080V	YMB4-100V	YMB4-120V	YMB4-150V	YMB4-200V	YMB6-250V	YMB6-300V
Compressor model	YMB4-080	YMB4-100	YMB4-120	YMB4-150	YMB4-200	YMB6-250	YMB6-300
Rated input power (W)	10030	15504	19500	22270	27115	35360	40545
Titular refrigeration capacity (W)	7284	12333	14722	16796	21250	24565	31535
Refrigerant	R22
Power	380V-3PH-50Hz
Rated input current (A)	81	99	113	132	158	193	220
Max Operating current(A)	17	21	24	31	37	45	53
Power of crankcase heater (W)	0 ~ 120			140
Power of condensina fan motor	160×2	250×2	250×2	600×2	780×2	800×2	780×3
Fan motor working current	0.5×2	0.6×2	0.6×2	1.2×2	1.6×2	1.6×2	1.6×3
Range of Eva. Temp.(^oC)	-5 ~ -40 ^oC
Fitting environment Temp.(^oC)	-10 ~ -35 ^oC

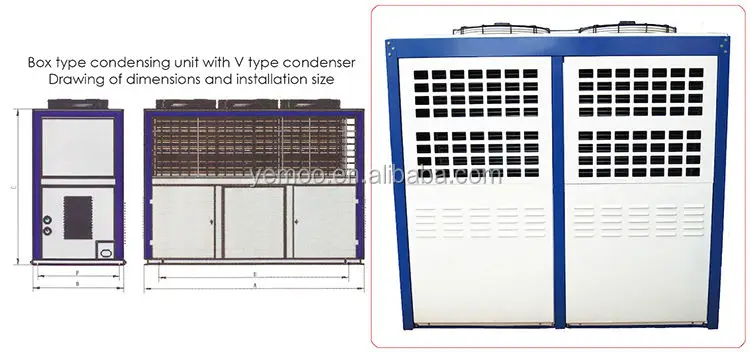

Dimension and installing dimension	Dimension			Installation Size		Connecting tube		Weight
Dimension and installing dimension	A	B	C	E	F	Air Inlet	Liquid	Weight
Model	mm	mm	mm	mm	mm	Ø(mm)	Ø(mm)	kg
YMB4-150V	1640	850	1540	1440	665	42	22	250
YMB4-200V	1800	935	1635	1600	750	54	22	290
YMB6-250V	1840	1060	1765	1640	875	54	22	336

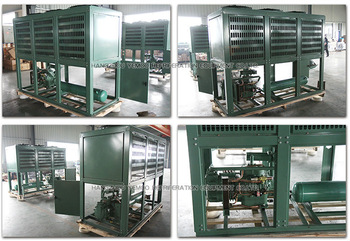

Detailed Images

Packaging & Shipping

Our Services

1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.

2.We insist on innovation,purchasing the international quality materials,strong technique support,strictly control the production.

3.We firmly believe quality first,perfect production responsibility system.

4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.

So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.

Yemoo's value is what we supply you is not only products,but also creating you most value.

Certifications

Our workflow

Hangzhou Yemoo Refrigeration Equipment Co., Ltd. was established in 2003. Our company has standard factory and office buildings totally covering an area of 60,000sqm. We are a professional integrative manufacturer and devoting in refrigeration equipment R&D, design, production, sale, cold room project installation and service. Our production base is located in Xinchang County, Zhejiang. It only takes 2 hours' drive from Shanghai Pudong Airport, Hangzhou Xiaoshan Airport, Ningbo Port and Yiwu Market. With the convenient transportation, we sincerely welcome all potential clients worldwide to visit our company.

Adhering to the essence of technology during the pass decades, constantly summing up experience and pursuing scientific and technological innovation on the R&D, manufacturing of semi-hermetic refrigeration compressor, water-cooling condensing unit, air-cooling condensing unit, box-type condensing unit, evaporator and condenser, our quality has reached a high level all over the world, which obtains our clients' trusts and affirmation. We have passed ISO9001, ISO14001 and CCC for China and CE, RoHS and UL certifications for international market. We are also the agent and distributer of Bitzer, Danfoss, Maneurop compressor, Danfoss expansion valves, Danfoss solenoid valve, etc.

Even more quantities of products are hot selling in and out of China. We have more than 80 agents in 30 different states and cities worldwide, and our products are exported to Europe, America, Australia, the Middle East and Southeast Asia. We have gained good reputation in international market.

Our business principle is "Quality first, Client advanced, Innovation is the soul and our clients' satisfaction is our value of life".
