A3S057 non-hygroscopic copper brazing welding flux powder

A3S057 non-hygroscopic copper brazing welding flux powder

FOB Price:

US 2.5-10 / Kilogram

Min.Order Quantity:

20 Kilogram/Kilograms

Supply Ability:

100000 Kilogram/Kilograms per Week

Port:

China Main Ports

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

TiBright

Products Model:

FB3

Products Details
Company Profile

Quick Details

Brand Name: TiBright

Model Number: FB3

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: 500 g/can, 500 g/bag, 20 kg/box Customized Package is available.
Delivery Detail: Shipped in 5 days after payment

Specifications

A3S057 non-hygroscopic copper brazing welding flux powder

Product Description

Products Usage	Used with cupper base or nickel base filler metal, copper brazing flux powder can braze copper, copper alloy, carbon steel, steel alloy, stainless steel, Tungsten carbide, etc. It can be applied in the brazing methods of furnace brazing, torch brazing, and high frequency brazing
Preparations	The surface of the work pieces should be cleansed carefully before brazing. The performance of the flux can be optimized on a surface without oxide and oil. In flame brazing, neutral flame is usually required
Operations	One option is to make the powder mixed with hot water to be creamy, while the other option is to dip the filler metal wire in the powder. Operator should try not to heat the filler metal and the flux directly by the flame
Post Treatments	The residue is glassy solid attached on the work pieces. Usually it can be sanded off. The more convenient method is to merge the hot work pieces into cold water after the solidification of the filler metal. The residue can fall off the surfaces because of the sudden boiling of water. Partial component in the residue can be dissolved into the water. In this method, the temperature difference between the cold water and the work pieces should be cautiously controlled to prevent the shaping and cracking of the work pieces
Application Areas	Suitable for the factory of radiator, bike, fitness apparatus, refrigeration accessories, automobile accessories, ornaments and jewelry, electric equipment, hardware tool, etc

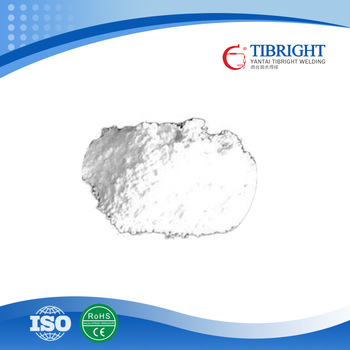

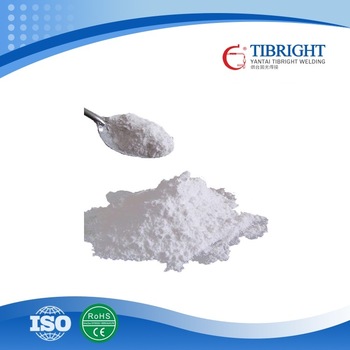

Physical Descriptions	White powder, granularity ≤ 150μm, density: 1.2-1.3 g/cm3
Transportation and Storage	Kept in shaded and dry environment

Classification	Brazing temperature (ºC)	Character	Application Area
FB301S	800-1150	Powder, soluble, good fluidity, and high cleanable residue.	Copper-based brazing, copper and copper alloys, carbon steel, low alloy steel. Radiator, bike, recreation equipment, medical appliance, electric equipment, and hardware tools, and so on.
FB301S-1	800-1150	Powder, soluble, good fluidity, and high cleanable residue	Copper-based brazing, copper and copper alloys, carbon steel, low alloy steel. Radiator, bike, recreation equipment, medical appliance, electric equipment, and hardware tools, and so on
FB301S-2	750-1150	good fluidity, and high cleanable residue	Copper-based brazing, copper and copper alloys, carbon steel, tool steel and hard alloy. Fish tools and hardware tools etc.

FAQ

Process Flux

Application

Buying Guides

Yantai TiBright Welding Materials Co. Ltd., founded in 2000, is a professional developer and international supplier of inclusive brazing materials, equipment, and consultant. TiBright has hundreds of products for different applications. Customized products are also available for specific purposes.

When choose from our product library, please check out our recommended product list, If you have any questions, please let us know, We will try our best to satisfy your inquiry. Sometimes we need our customers to try different samples to make the perfect decision. Generally, we need to know the following information to choose a right product for you.

1. Materials of your parenting parts (to-be-brazed parts).

2. Heating methods. (eg. flame, induction, vacuum furnace etc. )

3. Atmosphere of application. (eg. room air, protective inert gas, reductive gas, vacuum, etc.)

4. Dimensions of your parts. Photos or graphs are preferred. (Different dimensions require different procedures.)

5. Current solution. (eg. brazing materials, equipment, procedures, etc.)

6. The reasons of searching new solution. (eg. price, strength, applicability, etc.)

7. Industry of your application. (Help us refer to similar examples.)

Package

Normal package, other package can be customized according to customer's requirement.

Product	Dimension	Package
Brazing Alloy Rod	500 mm	1 kg/bag, 20 kg/box,10 kg/bag
Brazing Alloy Rod	1000 mm	5 kg/bag, 30 kg/box
Brazing Alloy Wire	Roll	5 kg/roll, 10 kg/roll, 20 kg/roll
Brazing Alloy Sheet/Strip	All kinds	1 kg/bag, 10 kg/box, 20 kg/box
Brazing Alloy Ring	All kinds	1 kg/bag, 10 kg/box, 30 kg/box
Brazing Alloy Powder		5 kg/bag, 10 kg/box, 30 kg/barrel
Brazing Alloy Paste		1 kg/can, 10 kg/barrel, 30 kg/barrel
Brazing Flux Powder		500 g/can, 500 g/bag, 20 kg/box
Brazing Flux Paste		1 kg/can, 1 kg/bag, 40kg/box
Brazing Flux Paste-Auto		1 kg/can, 1.5 kg/can, 9kg/box
Brazing Flux-liqui/gas		3 liter/barrel, 3.5 kg/barrel, 12kg/box, 200 liter/barrel
