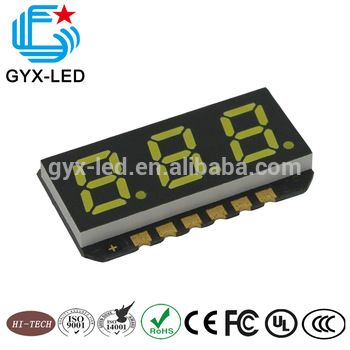

GYXLED-High brightness good reliability 3 digit seven segment smd led display

Features:

GYXS-S2831

All color are available for choice such as green, blue, yellow, amber, red, white, ice blue

High luminous intensity output

Excellent character appearance

Low voltage and current operating

Ultra-low power consumption

Solid-state LED chip based

Long life-span

Easy mounting on printed circuit board and sockets

IC compatible

Certificates: RoHS and Reach compliant

GYX offers a full range of through hole and surface mount LED digital displays. Customers are free to choose chip on board (COB), chip bonding and wire bonding, epoxy type, SMD LED and air type, etc. The displays come either in industry standard size packages and pinouts or special designed per customer’s requirement.


Seven Segment Displays

Seven segment LED displays are used in numeric indicators on the display panels of instruments, meters, home appliances, and communications and computing equipment. Single, dual, triple and quad digit types in a wide range of colors are available.

SMD Display

GYX offers a full range of surface mount 7-segment displays that come in industry standard size packages and are ideal for most applications. Single, dual, triple, quadruple digit displays are available in assorted character heights and colors. SMD display is much smaller than traditional components, thus enable customers to design in applications that require small size, higher packing density and low power consumption.

Alphanumeric LED Displays
Alphanumeric LED displays can show both numerical digits and the letters of the alphabet. They feature high brightness, high contrast, and wide viewing angles. A wide range of colors is available.

IC Driver Built-in LED displays
IC driver built-in LED displays provide the best solution for indication and display panels in home appliances, computer products, telecommunications, industrial and medical equipment, and game consoles. They feature high brightness, high contrast, and wide viewing angles.

Graphic LED Displays
Graphic LED Displays provide high flexibility in mechanical design and high contrast performance. They are widely used in indication and display panels for home audio-video equipment and appliances such as DVD players, VCRs, microwave ovens, and conventional ovens.



Features and Benefits for SMD LED Display

Semiconductor (LED) light source
Cost-effective solutions
Flexibility for designers
Industry standard size
Light weight
Lower power consumption
Electrical power savings
Low heat generation
Low current devices available
Mechanically rugged
No wire filaments
No moving part
No sensitive to mechanical shock and vibration
Essentially monochromatic light
No color filter required
Easy for the eye to discern against distracting backgrounds in sunlight and adverse weather conditions
High light output

Available in Common Anode and Common Cathode
RoHS and REACH Compliant

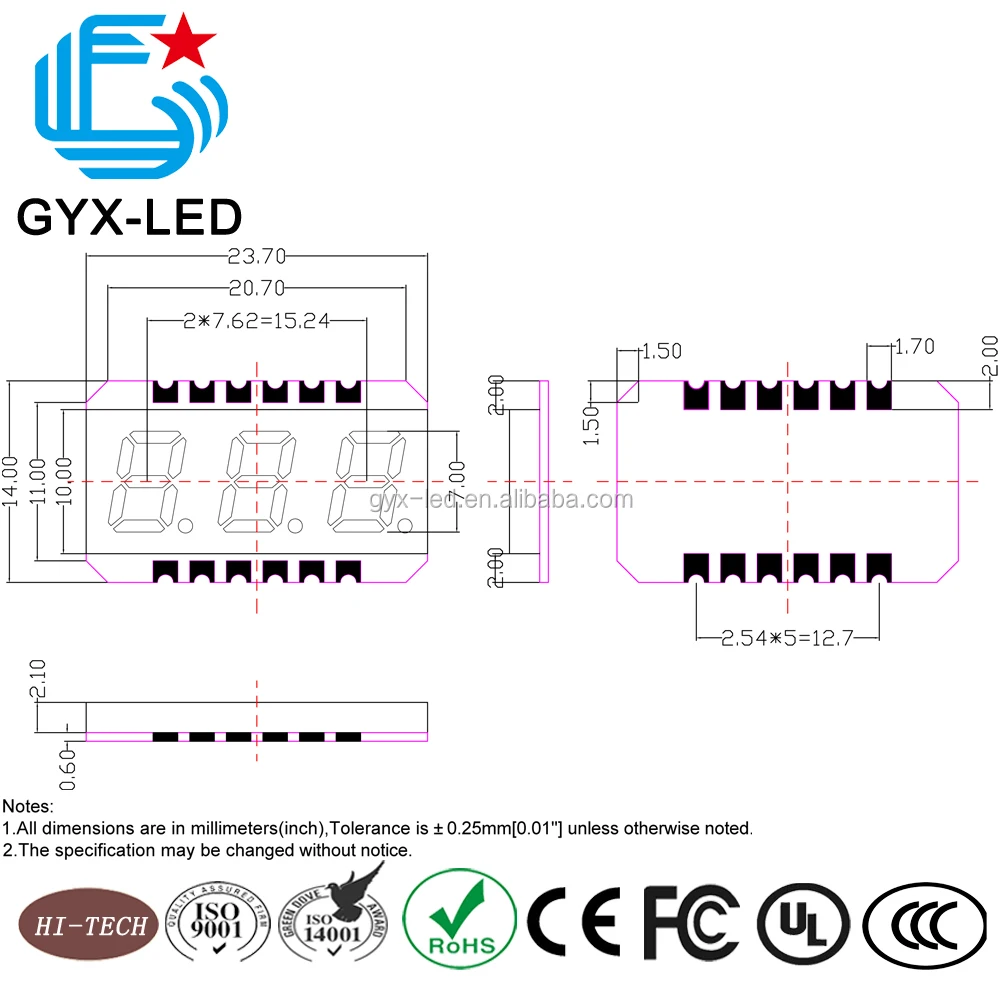

General Information

Electrical / Optical Characteristics at TA=25℃

Absolute Maximum Ratings at TA=25℃

Note:

1.       1/10 Duty Cycle, 0.1ms Pulse Width.

2.        2mm below package base.
