gaz chaudiere 0 5 ton 8 ton hr

FOB Price:

US 5000-50000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Ton/Tons per Year

Port:

Shanghai,Qingdao

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

Yuanda Boiler

Products Model:

WNS

Products Details
Company Profile

Quick Details

Brand Name: Yuanda Boiler

Model Number: WNS

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: seaworthy packing for gaz chaudiere
Delivery Detail: Shipped in 15 days after payment

Specifications

Fire tube gaz chaudiere

Capacity : 0.5 ton 1 ton 2 ton 3 ton 4 ton 5 ton 6 ton

Rated working pressure:1.0-1.6Mpa

Fuel:diesel oil,heavy oil

Structure:fire tube boiler

Delivery mode:package boiler

Advantages forYuanda Boileroil steam boiler machine

1. Yuanda boiler oil fired STEAM BOILER packing use stainless steel material,durable and beauty

2.3 pass,wet back structure,low surface temperature,heat loss is very little

3.We equip with economizer ,energy saving

4.We equip 2 units stainless steel pumps,1 for spare usage

5.we supply european brand burner for boiler,steady performance

6.We supply full automatic Plc control system for our lpg steam boiler,Plc can use Siemens or other brand

7.Spare parts and boiler installation materials are availabe

8.Detailed drawing and professiona sales can help you to select suitable model and help you save investment cost.

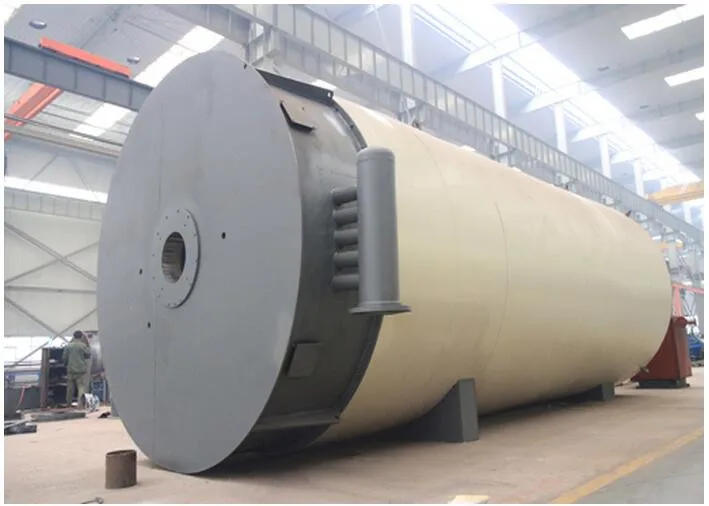

Detailes pictuures for Oil STEAM BOILER

Yuanda Boiler standard scope of supply for Oil STEAM BOILER, gaz chaudiere

SN	Item	Unit	Qty
1	Boiler body with ladder	Set	1
2	Full-automatic oil burner	Set	1
3	Electrical Cabinet	Set	1
4	Instruments & valves	Set	1
5	Water feeding pump	Set	2
6	Chimney	Set	1
7	Water softener	Set	1
8	Steam header	Set	1
9	Economizer	Set	1

Oil fired steam boiler specifications

WNS Series Steam Boiler Technology Parameter Table
Boiler model	Rated capacity	Rating pressure	Feed temperature	Steam temperature	Active grate area					Thermal efficiency	Weight	Dimensions
	Rated capacity	Rating pressure	Feed temperature	Steam temperature	Light oil	Heavy oil	Natural gas	Liquid gas	City gas	Thermal efficiency	Weight	Dimensions
	t/h	MPa	℃	℃	Kg/h	Kg/h	m3/h	m3/h	m3/h	%	Ton	mm
WNS1-1.0-Y(Q)	1	1	20	184	65.5	67.3	84.2	29	176	91	4.3	3561×1690×1910
WNS 2-1.25- Y(Q)	2	1.25	20	194	129.6	132.2	165	57.3	346	92	7.2	4111×1950×2199
WNS3-1.25-Y(Q)	3	1.25	20	194	192	195	250	82	510	92.1	8	4330×2248×2564
WNS4-1.25- Y(Q)	4	1.25	20	194	256	261.9	323.6	109	682	93	9.6	4732×2150×2448
WNS5-1.25- Y(Q)	5	1.25	20	194	318	322	386	140	87	93	12.5	5970×2360×2796
WNS6-1.25- Y(Q)	6	1.25	20	194	380	390.6	450	164	1020	93.2	16.5	5500×2600×2990
WNS8-1.25- Y(Q)	8	1.25	105	194	503	517	642	209	1321	93.5	24.8	6450×2800×3200
WNS10-1.25- Y(Q)	10	1.25	105	194	628	643	805	264	1654	93.5	26.8	6800×2900×3394
WNS15-1.25- Y(Q)	15	1.25	105	194	940	965	1182	400	2417	93.5	38	7150×3200×3540
WNS20-1.25- Y(Q)	20	1.25	105	194	1250	1301	1597	520	3299

GAS fired steam boiler, gaz chaudiere Shipment

for 0.5 ton-4 ton/hr steam boiler can be filled in 20GP or 40Gp container, for 5 ton and bigger capacity boiler body need 20' flat rack or 40 flat rack,and accessories can be filled in 20gp container
