92 3 94 8 high boiler efficiency industrial garment steam iron with boiler

92 3 94 8 high boiler efficiency industrial garment steam iron with boiler

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

10000 Ton/Tons per Year

Port:

Shanghai, Qingdao, Tianjin, or other ports

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

Yuanda Boiler

Products Model:

WNS

Products Details
Company Profile

Quick Details

Brand Name: Yuanda Boiler

Model Number: WNS

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

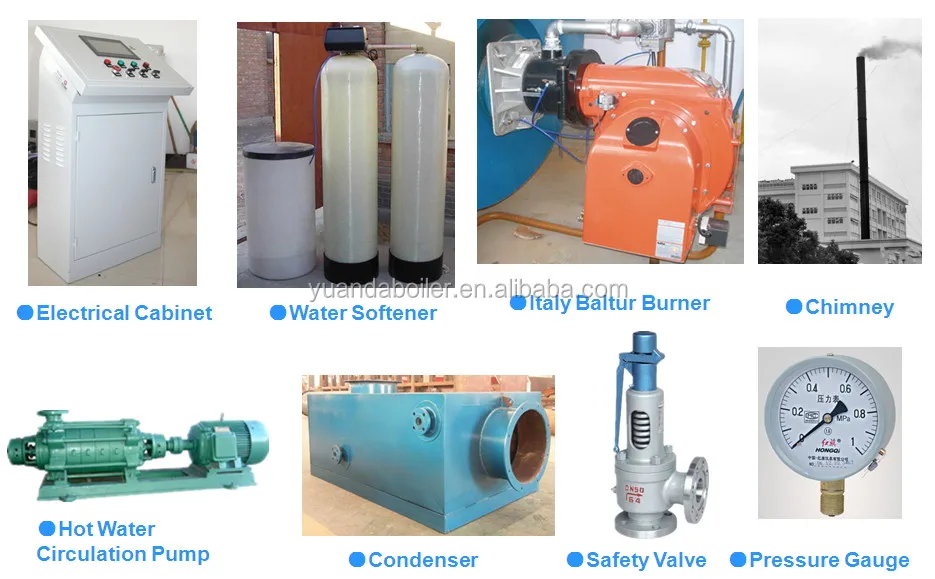

Packaging Details: Boiler proper & condensor & chimney & steam header: nude packing. Valves & burners & pumps & water softener & control cabinet: wooden boxes, 92.3%--94.8% high boiler efficiency industrial garment steam iron with boiler
Delivery Detail: --

Specifications

Product Description

WNS automatic low pressure horizontal single drum fire tube three passes wet-back diesel/ light oil/ heavy oil/ waste oil fired steam boilers

92.3%--94.8% high boiler efficiency industrial garment steam iron with boiler

WNS automatic low pressure horizontal single drum fire tube three passes wet-back diesel/ light oil/ heavy oil/ waste oil fired steam boilers
Rated steam capacity	1ton/hr, 2ton/hr, 3ton/hr, 4ton/hr, 5ton/hr, 6ton/hr, 8ton/hr, 10ton/hr, 15ton/hr 1TPH, 2TPH, 3TPH, 4TPH, 5TPH, 6TPH, 8TPH, 10TPH, 15TPH
Rated working pressure	7bar, 10bar, 13bar, 16bar, 25bar 0.7Mpa, 1.0Mpa, 1.25Mpa, 1.6Mpa, 2.5Mpa 100Psi, 150Psi, 180Psi, 230Psi, 360Psi
Rated steam temperature	171 ℃, 184℃, 194℃, 204℃, 226℃
Design fuels	diesel, light oil, heavy oil, heavy fuel oil, biodiesel, crude oil, kerosene, furnace oil, hfo oil, bunker fuel, bunker oil fuel, stove oil, residue oil, residual oil, continental oil, continental crude oil, residual furnace heavy fuel oil, mazut, etc
Thermal efficiency	> 90%
Warranty	One year

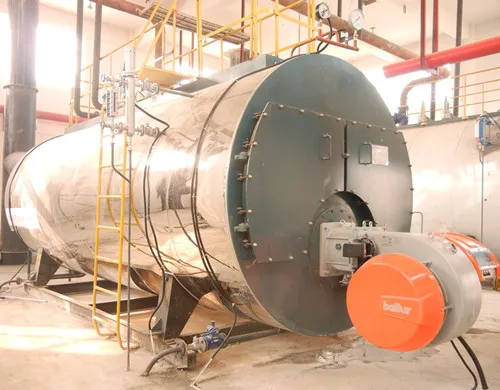

Working process	1.Italy Baltur burner burn oil fuels and blow the high temperature flue gas into boiler proper. The fan equipped in the burner blows the flue gas flow through corrugated furnace, smoke tubes, front and rear smoke boxes of boiler proper, chimney. 2.When the high temperature gas flows thourgh boiler proper, water in the boiler is heated and eventually turns out into steam. 3.Water first flow into water treatment equipment to remove Mg+ and Ca+, and then into water tank, finally into boiler drum. 4.Electrical cabinet show the datas of burner, pressure meters, water level meters, and other meters, and control the whole working system based on such datas.
Product name	92.3%--94.8% high boiler efficiency industrial garment steam iron with boiler

Detail Images

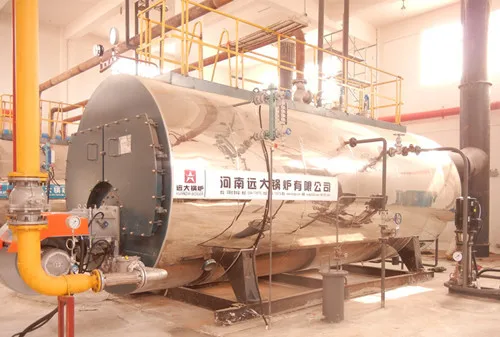

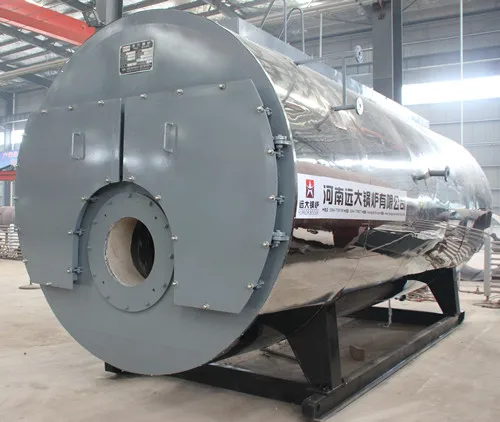

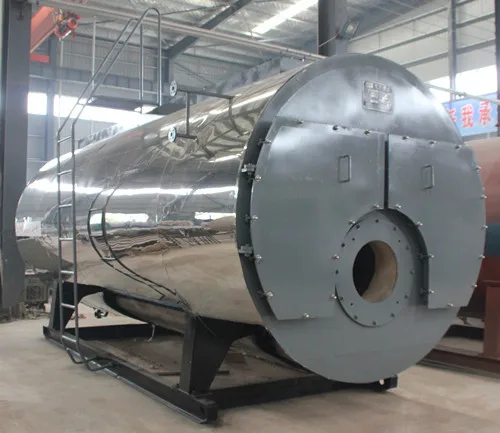

Boiler Proper
Fully welded pressure steel structure
Material, 1. Special steel plate for pressure vessels & boilers
2. Seamless steel tubes

Reverse Chamber
Reverse chamber is in the end of corrugated furnace, which is set in boiler water completely, forming
wet-back structure.

Corrugated Furnace
Flame come out of burner and go into corrugated furnace. Central heating parts of boiler.

Front Smoke Box Door
After coming out of corrugated furnace and reverse chamber, flame and high temperature gas go through short spirally smoke tubes to front smoke box, forming second heating pass, and then through spirally long smoke tubes to back smoke box, forming third heating pass.

Spirally Smoke Tubes
Flame and high temperature gas flow through them forming three heating passes, reinforcing heating, reducing welding stress.

Rock Wool Insulation
Packed out of boiler proper, insulation layer reduce heat loss.
