Capacity 1 ton 5 ton Industrial Diesel Oil fired Steam Boiler

Capacity 1 ton 5 ton Industrial Diesel Oil fired Steam Boiler

FOB Price:

US 6000-560000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

shang hai

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Yuanda

Products Model:

WNS oil fired steam boiler

Products Details
Company Profile

Quick Details

Brand Name: Yuanda

Model Number: WNS oil fired steam boiler

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: wood frame for oil fired steam boiler and sea worthy packing for oil fired steam boiler accessories
Delivery Detail: 30days for diesel oil fired steam boiler

Specifications

Horizontal Fire Tube Capacity 1 ton 5 ton Industrial Diesel Oil fired Steam Boiler

Dear Clients:

We have a Trade Assurance Amount US $234,000 granted by Alibaba.com. It means you will receive 100% refund of the Trade Assurance Amount for orders not meeting agreed delivery or quality terms.

Product Description

This series boiler is three pass fire tube oil fired steam boiler.It equipped with good performance burner and advanced techniques.The burning control,water feeding,programs running,etc,it is full automatic steam boiler.This fire tube steam boiler is safe and reliable,and also has the advantage of compact structure,simple operation,easy installation,high efficiency,less pollution and low noise.

Diesel Oil Fired Steam Boiler Features:

1, Yuanda Boiler Advantages :Double And big smoking box cheking door,easy to maintenance

2. Large diameter corrugated furnace: Combustion chamber is composed by large diameter full corrugation furnace, big combustion space.

3, High steam quality: Large steam space volume and enough height of the net distance between steam water interface and steam outlet.

4, Advanced automatic control: Boiler controller use Siemens/Delixi electrical element,plc control is available.

5, Multifunction safety explosion proof equipment:Lpg Steam Boiler is designed with explosion proof equipment which connected with furnace.

Diesel Oil Fired Steam Boiler Technical Specifications:

Item Model	WNS0.5	WNS0.8	WNS1	WNS1.5	WNS2	WNS3	WNS4	WNS5
Rated capacity t/h	0.5	0.8	1	1.5	2	3	4	5
Rated working pressure Mpa	0.7/1.0/1.25				1.0/1.25/1.6
Rated steam temperature C	170/184/194				184/194/204
Feed water temperature C	20
Boiler heating area M2	13	25	30	35	53	77	107	127
Economizer heating area M2	10	10	12	12	12	15	22	30
Suitable fuel kind	heavy oil/ light oil/ natural gas/ lpg/ city gas
Thermal efficiency %	>90	>90	>90	>90	>90.2	>90.5	>91	>91.3
General power KW	1.2	2.4	3.6	4.8	7	10	13	16
Weight of biggest part for transportation t	3	3.5	4	4.5	8	9	13	14.3
Size m	3.21.81.8	3.42.02.0	3.62.02.0	3.82.02.0	4.82.52.4	5.32.52.5	5.82.82.8	6.32.92.8

This is just part of the product parameters, if you want to know more detailed parameters, please contact me.

WNS Oil Fired Steam Boiler Production Process:

WNS Oil Fired Steam Boiler Room:

Our Oil Fired Steam Boiler is under working now.

Boilers Application

Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.

Packaging & Shipping

Our Diesel Oil Fired Steam boiler exported to many countries, Sri Lanka, Nigeria, Bangladesh, Ethiopia, Turkey, Uzbekistan, Egypt, Lebanon and Pakistan etc.

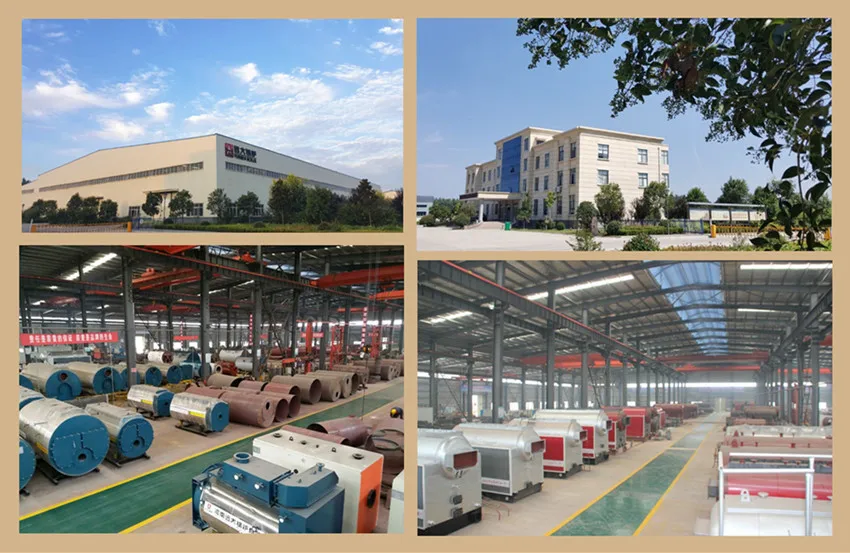

Company Information

- Established in 1956 year

- State Certificated Boiler Manufacturer

- China Industrial Boiler Association Member

- China Welding Association Member

- China Honoring & Credible Enterprise

- ISO9001-2000 Quality Management System.So far,we sell to lots of countries and regions, such as Pakistan, India, Sri Lanka in South Asia, Philippines, Indonisia, Malaysia, Thailand, Vietnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Afica, Russia, Ukraine in Eruope and Mexico, Chile in South America

Our Services

Yuanda Boiler Oil Fired Steam Boiler Warranty and after-sale service:

Promises the top quality of every set of machine and best after-sales service as followings :

(A)The boiler body guarantee is two years , for accessories three years

(B)During the guarantee period , if the main body defective or broken without wrong

operating , Sitong must replace the parts for free or prepare the spare-parts for free.

(C)Sitong should provide boiler technical service and operation guidance for whole life

long.

(D) Regarding to the installation and training , the buyer should take all the correlative charges

(accommodation and food , round -trip tickets)

FAQ

1). How to get a steam boiler price list?

Please tell us below information to confirm a suitable boiler model and accurate offer:

1) what is the stam boiler application ?

2) what is the stam boiler capacity do you need?

3) what is the stam boiler pressure do you need.

4) which fuel do you want to use for the boiler, coal, biomass, gas & oil, or others?

2). How long is the product warranty period ?

Our product have at least 12 months warranty period .

3). where can buy the steam boiler and other part instrument?

Our company can provide boiler body and auxiliaries for you at any time,

please tell us your boiler model.

4). What about after-sale service?

We will supply professional after-sale service team as soon as we receiving your problem feedback,

we will dispatch our engineers to your country and solve your problems right now.
