Factory direct sale gas oil fuel water boiler for tea cup 1 piece boiler for tea tea boiler

Factory direct sale gas oil fuel water boiler for tea cup 1 piece boiler for tea tea boiler

FOB Price:

US 5000-50000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Set/Sets per Year

Port:

Shanghai/Tianjin/Qingdao

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Henan yuanda boiler

Products Model:

WNS gas/oil steam boiler

Products Details
Company Profile

Quick Details

Brand Name: Henan yuanda boiler

Model Number: WNS gas/oil steam boiler

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Nude package for the boiler body, wooden box for the boiler accessories and boiler room equipment
Delivery Detail: 30 days in general, but we can advance the delivery time

Specifications

Factory direct sale gas oil fuel water boiler for tea cup 1 piece,boiler for tea,tea boiler

Product Description

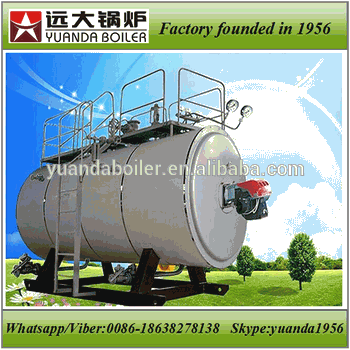

Automatic gas/oil steam boiler pictures first:

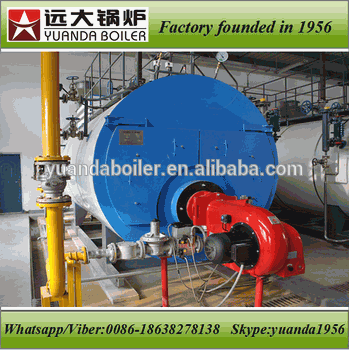

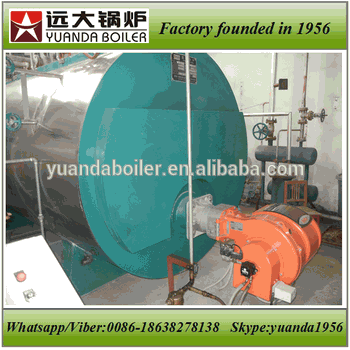

Boiler's running site:

Gas/oil steam boiler model		WNS1-1.0	WNS2-1.25	WNS4-1.25	WNS6-1.25	WNS8-1.25	WNS10-1.25	WNS15-1.25	WNS20-1.25
Steam evaporation(t/h)		1	2	4	6	8	10	15	20
Pressure(Mpa)		1.0	1.25	1.25	1.25	1.25	1.25	1.25	1.25
Steam temp(°c)		184	194	194	194	204	204	194	194
Feeding water temp(°c)		20	20	20	20	105	105	105	105
Heat efficiency(%)		96	96	96	96	96	96	96	96
Gas consumption(m^3/h)	Natural gas	84.2	165	326	450	642	805	1182	1597
	LPG	29	57.3	109	163	209	264	400	519
	City gas	175	346	682	1020	1321	1654	2416	3298
Water capacity(m³)		2.2	3.93	8.5	9.6	14.1	19.6	31	38
Delivery weight(t)		4.3	7.2	9.6	16.5	24.8	26.8	38	55

Factory direct sale gas oil fuel water boiler for tea cup 1 piece,boiler for tea ,tea boiler--Highly praised by the overseas customers !

96% heat efficiency & Wet back type structure!

Longer use life & World famous burner configuration !

Advantages:

1.Wet back structure

Function:form a smoke turn-back space, reduce the heat loss, increase heat efficiency.

2.Spirally corrugated tube design

Function: heat transfer enhancement, increase 1-2times heat transfer efficiency.

3.Large combustion chamber design

Function:gas burning enhancement, increase ga burning space.

4.Advanced corrugated furnace structure

Function: increase the heat transfer area, meet the furnace free expansion after heating.

Our Services

Guarantee and after-sale service

1.One-year warranty and full life service for all our boilers.

2.A full range of original spare parts are available for all yuanda boilers.

3.24 hours technical support by email or instant messenger.

4.Engineers are available to overseas.

Quality control

1.X-ray detection when welding.

2.High grade welder certificate.

3.58 years boiler reputation.

Packaging & Shipping

We will adopt many methods to protect the boiler when transportating, such as nude package for boiler body, wooden box for the accessories/boiler room equipment, rubber pad, strong rope for the whole package.

Customer visiting

So far, our boiler have been sold to over 20 countries and have been highly praised by customers ! Sincerely welcome the factory visiting !

Inventory status

We can supply from stock if the customers are in urgent need of the boiler, our inventory range is wide, almost includes all boiler series, so we can meet the customers' ergent requirements at any time, sincerely welcome to our company for a visit !

Boiler series

Since found in 1956, quality is life for our company, we have been committed to produce the best boilers to customers, during these 58 years , we've been researched and created the following boiler series:

1.0.5-20ton/hr steam boiler;

2.0.35-14MW hot water boiler;

3.Coal/biomass/wood/oil/gas boiler;

4.DZL/SZL/WND/LHS/LSG boiler series;

5.Vertical/horizontal boiler,low pressure boilers;

6.Vacuum boiler,negative pressure running;

7.Integrated gas condensing boiler;

8.HTF boiler, transportating container boiler room;
