1000kg hr oil steam boiler oil steam boiler a gaz 1t h

1000kg hr oil steam boiler oil steam boiler a gaz 1t h

FOB Price:

US 5000-50000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Set/Sets per Year

Port:

Shanghai/Tianjin/Qingdao

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Henan yuanda boiler

Products Model:

WNS

Products Details
Company Profile

Quick Details

Brand Name: Henan yuanda boiler

Model Number: WNS

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Nude package for the boiler body, wooden box for the accessories and boiler room equipments
Delivery Detail: 30 days in general, but we can advance the delivery time

Specifications

1000kg/hr oil steam boiler,oil steam boiler a gaz 1t/h

Product Description

Oil steam boiler model	WNS1-1.0	WNS2-1.25	WNS4-1.25	WNS6-1.25	WNS8-1.6	WNS10-1.6	WNS15-1.6	WNS20-1.6
Steam evaporation(t/h)	1	2	4	6	8	10	15	20
pressure (Mpa)	1.0	1.25	1.25	1.25	1.6	1.6	1.6	1.6
Steam temp(°c)	184	194	194	194	204	204	194	194
Feeding water temp(°c)	20	20	20	20	105	105	105	105
Heat efficiency(%)	96	96	96	96	96	96	96	96
Heating area(m²)	29	55.7	102	170	189	248	379	496
Water capacity(m³)	2.2	3.93	8.5	9.6	14.1	19.6	31	38
Delivery weight(t)	4.3	7.2	9.6	16.5	24.8	26.8	38	55
Boiler dimension(mm)	35611690 1910	41111950 2199	47322150 2448	55002600 2990	64502800 3200	68002900 3394	71503200 3540	82003400 3826

1000kg/hr oil steam boiler,oil steam boiler a gaz 1t/h --Highly praised by the customers overseas !

Longer use life & wet back type structure !

High fuel efficiency& lower failure rate !

Advantages:

1.Adopted the lated international technologies to achieve high efficient heat transfer, and protect environment.

2.Corrugated furnace design make large heat transfer area and protect furnace.

3.Using spirally corrugated tube, achieve 1-2times heat transfer efficiency and remove hidden danger of welding cracks.

4.Wet back type structure design increase the reliablity and lower the maintenance cost.

5.Adopt the overtemperature,overpressure, water shortage, flame out and the other protection device to ensure the boiler's safe running.

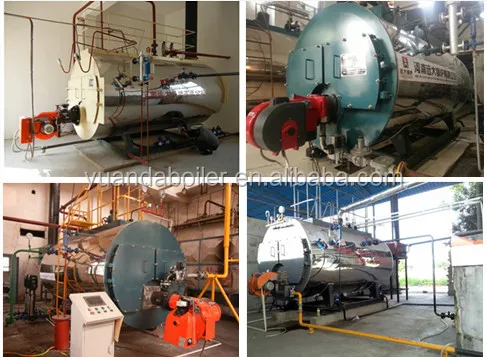

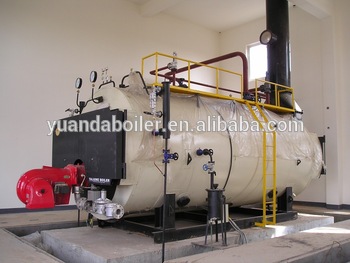

Boiler's running

WNS series oil fired steam boiler, latest technologies application, highly praised by the customers !

Accessories

To ensure the boiler's normal running, we will provide the following complete machines to our customers:

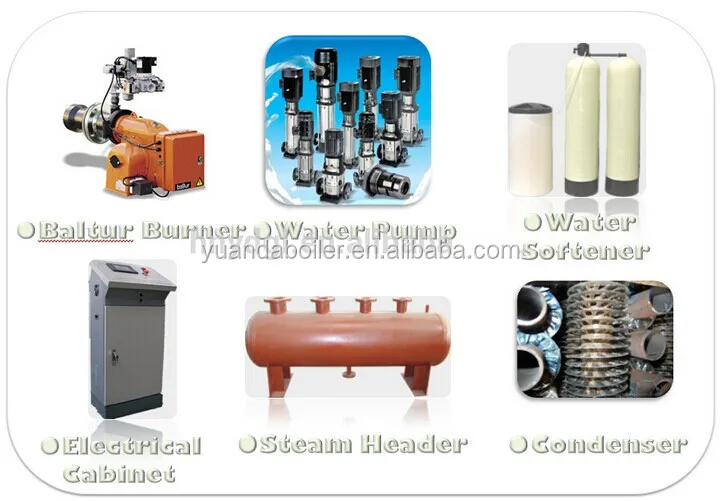

Some brief accessories:

The complete accessories and boiler room equipment list as follows:

Accessories
1.Oil burner	1 set
2.Electrical control cabinet	1 set
3.Valves&Instruments	1 set
Boiler room equipment
4.Water pump	1 set
5.Chimney	1 set
6.Water soften equipement	1 set
7.Condensor	1 set
8.Steam header	1 set

Our Services

Warranty and after-sale service

1.One year warranty and full-life service for all yuanda boilers.

2.A full range of original spare parts are available for all our boilers.

3.24 hours technical support by email.

4.Engineers are available to overseas.

Quality control

1.X-ray detection after welding to ensure the leakproofness.

2.High grade welder certificate.

3.58 years boiler manufacturer reputation.

4.B-grade boiler manufature qualification.

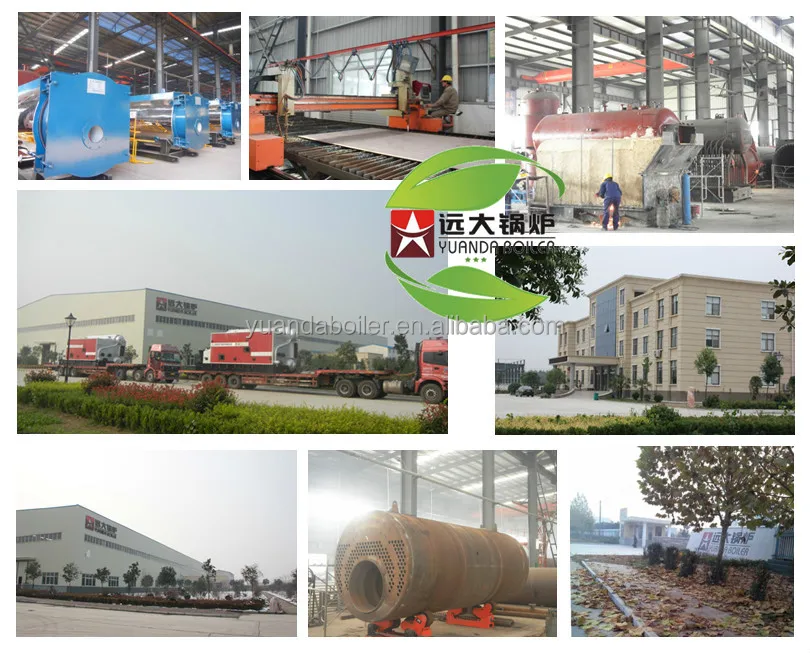

Some WNS boiler manufacturer scene:

Packaging & Shipping

We will adopt many methods to protect the boiler while transportating, such as rubber pad, wooden box, strong rope and so on.

Customer visiting

So far, our boiler have been sold to over 20 countries and have been highly praised by customers ! Sincerely welcome the factory visiting !

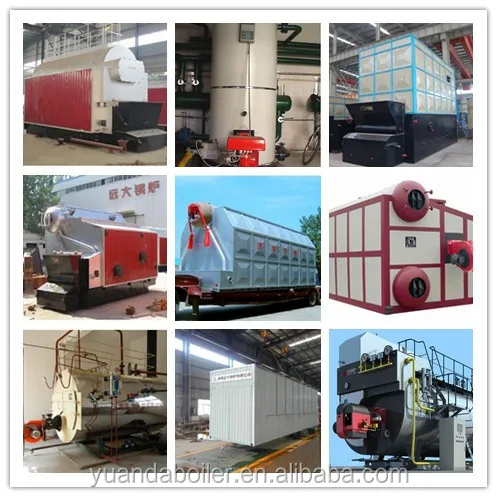

Product series

Since found in 1956, our company have been committed to provide the best boilers to our customers, during these 58 years, we have researched and create the following boiler series:

1.0.5-20ton steam boiler;

2.0.35-14MW hot water boiler;

3.Coal/biomass/wood/oil/gas boiler;

4.0.7-2.5Mpa boiler, that is 7-25bars;

5.Horizontal or vertical type;
