700kw 14mw coal biomass wood pellet hot water boiler system for heating

700kw 14mw coal biomass wood pellet hot water boiler system for heating

FOB Price:

US 5000-50000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Set/Sets per Year

Port:

Shanghai/Qingdao/Tianjin

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Henan yuanda hot water boiler system for heating

Products Model:

DZL solid fuel hot water boiler

Products Details
Company Profile

Quick Details

Brand Name: Henan yuanda hot water boiler system for heating

Model Number: DZL solid fuel hot water boiler

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: for this hot water boiler system for heating ,we adopt wooden box and seaworthy package for boiler body and all ancillary equipment
Delivery Detail: 30 days for hot water boiler system for heating

Specifications

700kw-14mw coal biomass wood pellet hot water boiler system for heating

Product Description

700kw-14mw coal biomass wood pellet hot water boiler system for heating ! --DZL solid fuel boiler series !

High praised by the overseas customers !

High heat efficiency & Longer use life !

This boiler series with 100% stable quality!

Advantages:

1.Optimum structural design with fire & water mixing tube make smaller boiler volume and can save 1/3 building cost of the boiler house.

2.Spirally corrugated tubes achieves 1-2times higher heat transfer efficiency,and easy for maintenance.

3.New design and larger volume furnace enhance burning efficiency,also lower fuel requirements.

4.Longer use life and easy maintenance.

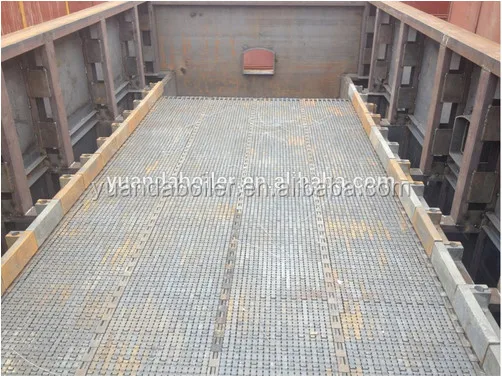

Some types of chain grate stoker automatic running(customized)--solid fuel---coal/biomass /wood /pellet burns on that:

If you have any special requirement to he fire grate,pls feel free to contact kara-0086-18638278138 ! I will reply to you asap!

Technical data of this solid fuel hot water boiler:

water sugar boiler model	Thermal power	Working pressure	Return water temp	Outlet water temp	Efficiency	Fuel Consumption	Circulating water	Delivery weight	Delivery mode
water sugar boiler model	MW	Mpa	°c	°c	%	Kg/h	t/h	t	Delivery mode
DZL0.7-0.7/95/70-AII	0.7	0.7	70	95	81	110	24	14.2	Packaged boiler
DZL1.4-0.7/95/70-AII	1.4	0.7	70	95	81	222	48	22.6	Packaged boiler
DZL2.8-0.7/95/70-AII	2.8	0.7	70	95	81	432	96	27	Packaged boiler
DZL4.2-0.7/95/70-AII	4.2	0.7	70	95	81	633	144	45.5	Packaged boiler
DZL5.6-1.0/95/70-AII	5.6	1.0	70	95	81	855	192	40	Assembly boiler
DZL7-1.0/115/70-AII	7	1.0	70	115	81	1068	133	45	Assembly boiler
DZL10.5-1.0/115/70-AII	10.5	1.0	70	115	81	1587	200	55.6	Assembly boiler
DZL14-1.0/115/70-AII	14	1.0	70	115	81	2116	266	19.08	Semi-assembly boiler

Accessories

To ensure the boiler's safe and high efficient running, we will provide the following complete configuration for our customers.

We can revise the boiler accessories list according to your requirements,such as deaerator,bag type dust catcher,second-level dust catcher,etc.. call kara--0086-18638278138 directly for the boiler configuration changement!

That is the table below:

Boiler accessories
1. FD fan	1set
2. ID fan	1set
3. Electrical control cabinet	1set
4. Valves&Instruments	1set
5. Fire grate reducer	1set
Boiler room equipment
6. Hot water circulating pump	1set
7. Chimney	1set
8. Gas duct	1set
9. Economizer	1set
10.Fuel feeder	1set
11.Slag remover	1set
12.Dust catcher	1set
13.Water soften equioment	1set

Our Services

Quality Control

1.60 years corporate reputation.

2.B-grade boiler manufacturer qualification.

3.A series of test before delivery,such as hydraulic test,NDT test ,etc..

4.High grade welder certificate.

Guarantee and After-sale service

1.One year warranty and full-life service for all our boilers.

2.A full range of original spare parts are available for all yuanda boilers.

3.24 hours technical support by email.

4.Engineers available to service overseas.

The factory daily manufacturer situation as follows:

Packaging & Shipping

We will adopt many methods to protect the boiler while transportating, such as rubber pad, wooden box, strong rope and so on. every small factor/aspect will be considered to protect the boiler while transportating.

Customer visiting

So far, our boiler have been sold to over 80 countries and have been highly praised by customers ! Sincerely welcome the factory visiting !

Our products

Since found in 1956, yuanda boiler have been committed to provide the best products to our customers, during these 60 years, we create and complete the following boiler and pressure vessel categories:

1.0.5-20ton steam boiler.

2.0.35-14MW hot water boiler .

3.Burning fuel:coal,biomass, wood, anthracite,natural gas,Lpg,heavy oil, diesel, and so on

4.Boiler pressure:0.4-2.5Mpa,4-25bar.

5.Horizontal or vertical type.

6.Vacuum boiler

7.Transportable container boiler,modular boiler

8.Electric boiler

9.Burner type pellet boiler

Inventory status

We can supply from stock when the customers are in urgent need of the boiler , the stock range is wide ,and includes almost all kinds of our products.so Sincerely welcome to our company for a visit !
