Double Drum Industrial Coal Wood Fired Steam Boiler

FOB Price:

US 25999-32999 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

30 Set/Sets per Month

Port:

Tianjin, Shanghai, Qingdao

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

YuanDa

Products Model:

SZL-Double Drum Industrial Coal Wood Fired Steam Boiler

Products Details
Company Profile

Quick Details

Brand Name: YuanDa

Model Number: SZL-Double Drum Industrial Coal Wood Fired Steam Boiler

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Seaworthy Packing
Delivery Detail: Within 30 Days After Receive the Deposit

Specifications

Double Drum Industrial Coal Wood Fired Steam Boiler

Specification

Double Drum Design

Chain Grate Stocker

Thermal Power: 1.4MW - 14 MW

Whirlwind Burning Chamber

Easy installation
User-friendly operation

Product Description

Double Drum Industrial Coal Wood Fired Steam Boiler

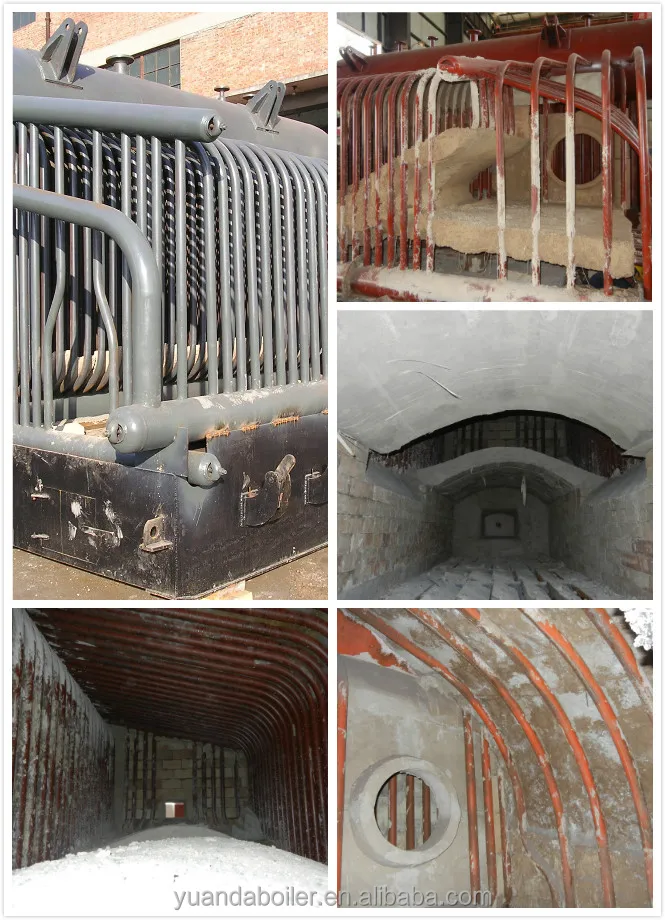

1) SZL series boiler shop assemble water-tube boiler adopts double-drums horizontal layout with chain grate.

2) Water cooling wall structure is used in furnace bottom to help combustion of waste wood pieces and other fuel.

3) The exhaust gas passes the furnace, burned-out combustion chamber, convection tubes, economizer and goes into the rear flue, and then passes the dust remover, ID fan, chimney and goes into the air.

4) Thermal insulation of SZL boiler proper adopts light membrane tubing furnace wall and backplate structure, which not only intensifies heat insulation performances, reduces gross boiler weight and save transportation cost.

Technical Parameters

Double Drum Industrial Coal Wood Fired Steam Boiler

Boiler model		SZL1.4-0.7/95/70	SZL2.8-0.7/95/70	SZL4.2-1.0/115/70
Rated Thermal Power	MW	1.4	2.8	4.2
Rating Pressure	MPa	0.7	0.7	1
Output Water Temp	°C	95	95	115
Return Water Temp	°C	70	70	70
Active Grate Area	m3	3.1	4.6	7.3
Dimension	mm	5960x2960x3462	6510x3130x3462	7830x3346x3462

Boiler model		SZL5.6-1.0/115/70	SZL7-1.0/115/70	SZL10.5-1.0/115/70	SZL14-1.0/115/70
Rated Thermal Power	MW	5.6	7	10.5	14
Rating Pressure	MPa	1	1	1	1
Output Water Temp	°C	115	115	115	115
Return Water Temp	°C	70	70	70	70
Active Grate Area	m3	10.4	11.8	17.7	20.8
Dimension	mm	8200x3346x3462	8500x3346x3462	9583x3400x3550	11600x3460x3520

Standard Accessories

Double Drum Industrial Coal Wood Fired Steam Boiler

Product name	Quantity (set)
Boiler Main Part	1
Draft Fan	1
Forced Fan	1
Electric Controller	1
Valve	1
Pressure Gauge	1
Grate Speed Reducer	1
Water Pump	2
Condenser	1
Smoke Chimney	1
Smoke Ducting	1
Economizer	1
Fuel Feeder	1
Slag Remover	1
Ceramic-Cyclone	1
Water Treatment Equipment	1

Our Services

1) One Year Guarantee for Whole Machine
2) 24/7/365 Emergency Service For All Of Your Boiler Needs.
3) Ues-friendly English software, user manual and detailed Videos / CD

Packaging & Shipping

Our Packaging and Shipping:

Fast Package Naked for main part (Boiler Host), wood case for auxiliary.
