Manual de carbon caldera de vapor

FOB Price:

US 5000-50000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Set/Sets per Year

Port:

Shanghai/Qingdao/Tianjin

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Henan yuanda boiler

Products Model:

DZH

Products Details
Company Profile

Quick Details

Brand Name: Henan yuanda boiler

Model Number: DZH

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden box and seaworthy package for the boiler body/auxiliaries/boiler room equipment
Delivery Detail: 30 days in general, but we can advance the delivery time

Specifications

Manual de carbon caldera de vapor

Product Description

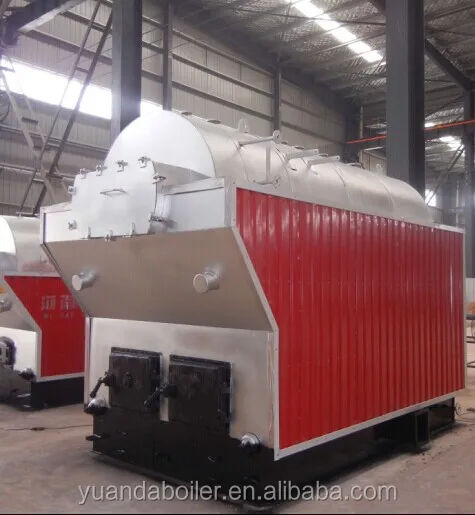

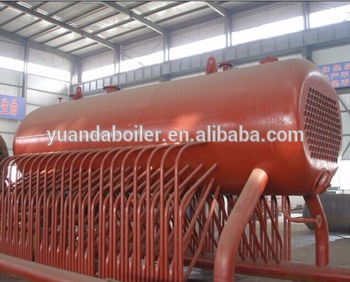

Some pictures first :

Manual boiler technical data:

Manual boiler model	DZH1-1.0	DZH2-1.25	DZH4-1.25	DZH4-1.6
Steam evaporation(t/h)	1	2	4	4
Working pressure(Mpa)	1.0	1.25	1.25	1.6
Feeding water temp(°c)	20	20	20	20
Steam temp(°c)	184	194	194	204
Hydraulic test(Mpa)	1.4	1.65	2.0	2.0
Water capacity(m³)	3.15	4.75	7.7	7.7
Radiation heating area(m²)	4.8	6.34	11.81	11.81
Smoke blackness(Ringelman )	‹1
Fire grate area(m²)	1.3	2.55	4.72	4.72
Delivery weight(t)	8.6	15	18.5	19.2

Manual de carbon caldera de vapor--DZH boiler series !

Highly praised by the customers overseas !

High cost performace & 100% stable reliablity !

Advantages:

1. Spirally corrugated tube

function: heat transfer enhancement ,1-2 times heat transfer efficiency than before. reduce the spirally corrugated tube numbers,and improve the suppleness to avoid the tube plate cracking

2. Arched tube plate

function : reduce the thermal stress of weld and improve the tube plate suppleness,meantime, simplify the structure

3.Airfoil flue

Function : reduce the smoke temperature of high temperature tube plate,and then reduce the thermal load of boiler bottom.

4.Smook dust separation chamber

Function : reduce the original dust concentration of the steam boiler, and protect environment.

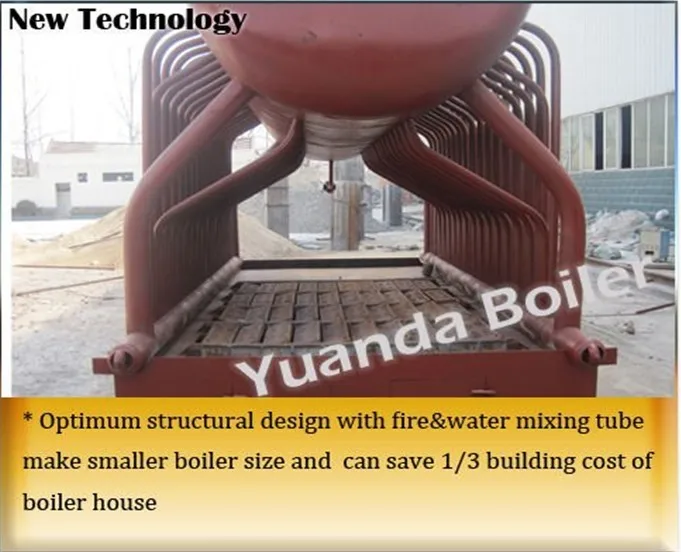

5.Fire-water tube mixed design

Function: optimum structure design ,reduce the boiler size and can save 1/3 building cost of the boiler room.

Boiler's running

Wood /biomass manual steam boiler, highly praised by the customer!

Our Services

Quality Control

1.58 years corporate reputation.

2.X-ray flaw detection.

3.Higher grade welder certificate.

Guarantee and After-sale service

1.One year warranty and full-life service for all our boilers.

2.A full range of original spare parts are available for all yuanda boilers.

3.24 hours technical support by email.

4.Engineers available to service overseas.

Boiler series

Quality is life for our factory since found in 1956,during these 58 years and huge international market ,we have been committed to provide the best products to our customers, and created the the following product series:

1.Coal/biomass/gas/oil steam boiler : 0.5-20ton/hr

2.Coal/biomass/wood /gas/oil hot water boiler :0.35-14MW

3.Pressure:0.4-2.5Mpa,4bar-25bar

4.Vertical/horizontal boiler

5. Thermic fluid boiler ,coal/biomass fuel

6.Vacuum boiler:negative pressure running

7. Gas condensing boiler

8. Transportation container boiler room

Inventory status

We can supply from stock if you are in urgent need of the boiler , our inventory range is wide and alomost includes all boiler series, so soincerely welcome come to our factory for a visit !
