Brand Name: Yuanda
Model Number: SZL
Place of Origin: Henan, China (Mainland)

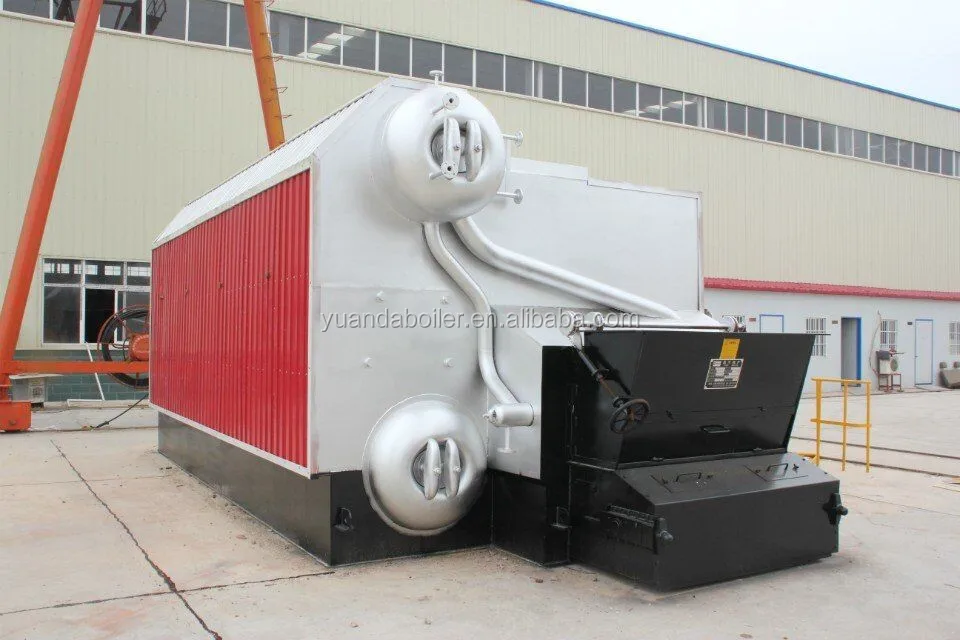

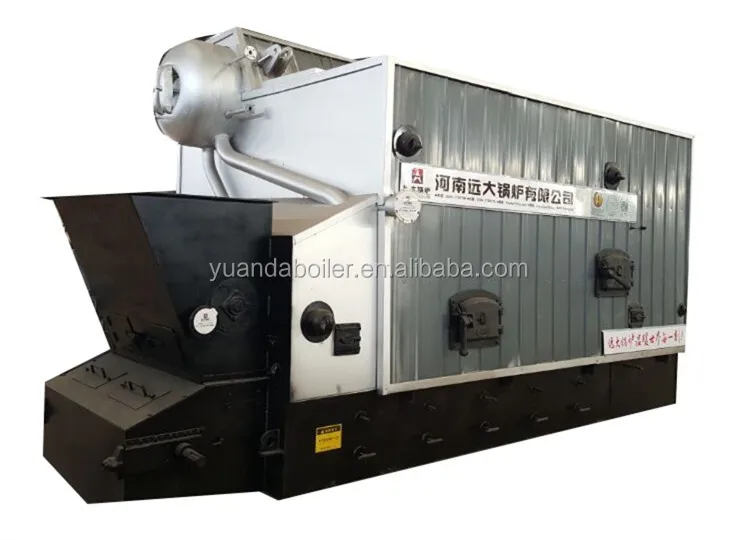

I. General introduction of Wood pellet double-drum steam boiler
| 5.Boiler categories: SZL(D)type |
| 6.Structure:horizontal,double drum,"D" type,water tube, cyclone reburning room |
| Product application: |
| Industrial production and processing:Food factory,textile factory,chemical factory,dyeing,printing,feed |
| mills,fertilizer plant,etc |
| Boiler quality assurance: |
| We yuanda boiler factory is a more than 60 years old factory with stated qualification for boiler and |
| pressure vessel manufacturing. |
| Warranty: |
| One year wanrranty and full-life service for all our yuanda boilers |
| Spare parts service: |
| A full range of original spare parts are available for all yuanda boilers |
| Remarks: |
| 1.Adopt the X-ray detection to asure the boiler quality |
| 2.Manufacturing code:GB |
| 3.Payment terms:FOB,CIF,DAF,etc |
II. Advantages of Wood pellet double-drum steam boiler
1. National Scientific and Technological Progress Second Prize
2. Singapore New Product Expo Golden Lion Award
3. With special fuel hopper and fuel discharge device.
4.Three pass boiler. The smoke go through three phase, making the boiler have higher heat transfer efficiency and lower smoke temperature emissed.
5.The hearth is designed with a cyclone reburning chamber, which makes the boiler energy saving, high combustion efficiency and environmental friendly.
6.Special air distribution design.
7.The hearth has large volume and strong fuel adaptability, it can use various biomasses as the fuel.The big size furnace can be well adapted to biomass's feature of high flame.
The size of some most common biomass fuel:
(1).Biomass pellets:≤Φ10×30 mm
(2).Wood chips:≤100×50×50 mm
(3).Sawdust:≤20×20×10 mm
8.The arch is specially designed accordign to the fuel.
9.Design of preventing fouling, slagging and corrosion of heating area.
10. It has a double-drum offset hearth (D-type layout) with furnace in the right side of the boiler and two drums in the left side of the boiler, the structure is very compact.

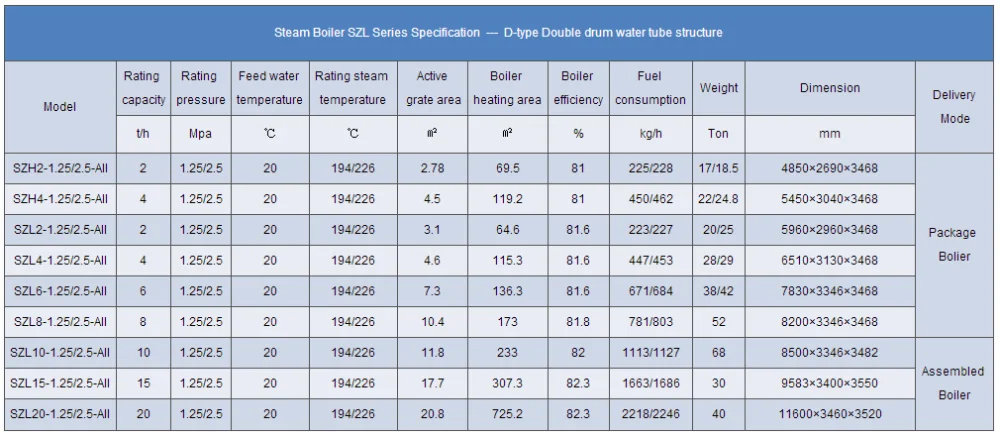

III. Technical datasheet of Wood pellet double-drum steam boiler
Warranty:
One-year warranty and full-life service for all of our steam boilers
Boiler spare parts service:
A full range of original spare parts are available for all Yuanda boilers
Service before sale:
Provide relative technical data for customer choosing equipments,layout drawing,foundation,general grawing.
Service after sale:
Help customer for installation and traing.
Maintenance and repair for one year.
