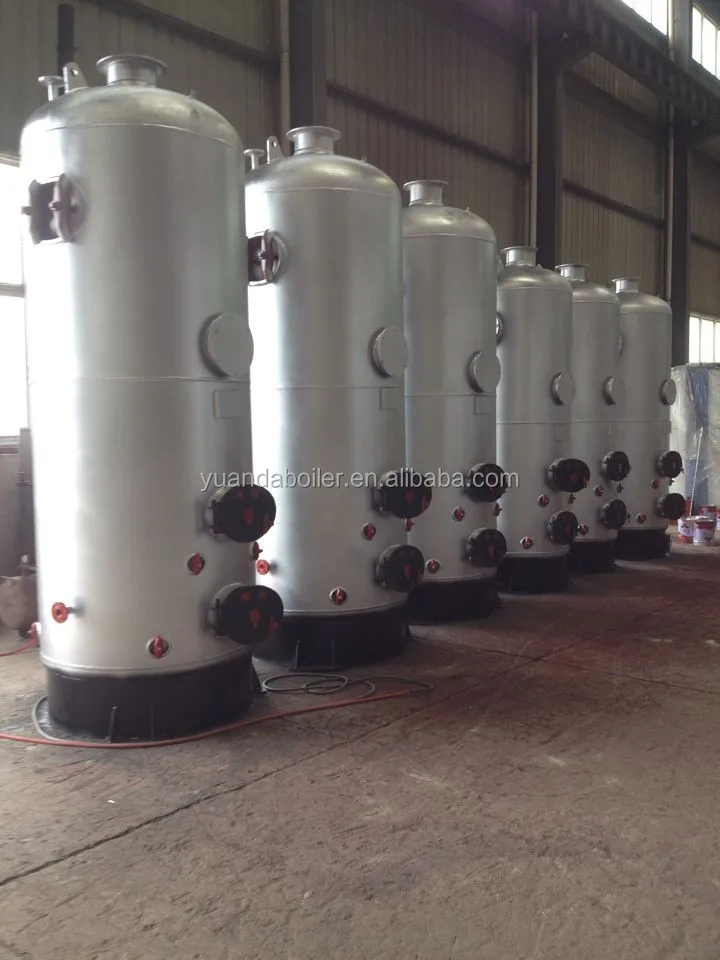

Vertical Small coal wood pellet steam boiler 300kg 500 kg

FOB Price:

US 5000-15000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Ton/Tons per Year

Port:

Shanghai

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

Yuanda Boiler

Products Model:

Lsg

Products Details
Company Profile

Quick Details

Brand Name: Yuanda Boiler

Model Number: Lsg

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: seaworthy packing
Delivery Detail: 30 days

Specifications

Vertical Small coal wood pellet steam boiler 300kg 500kg,1000kg

vertical coal or wood pelelt small boiler Technical Data

SN	Item	Unit	Number
1	Rated evaporating capacity	Kg/hr	300
2	Boiler Heated surface area	m2	11.6
3	Rated working pressure	Mpa	0.4
4	Hydrostatic Test pressure	Mpa	0.8
5	Boiler water feed temperature	°C	20
6	Steam temperature	°C	151
7	Boiler Water capacity	m3	0.93
8	Temperature of exhaust gas	°C	<200
9	Boiler efficiency	%	75
10	Wood consumption	kg/hr	55
11	Flue gas blackness	Ringelman	<1
12	Boiler Dimension(mm)	Height =3194mm Diameter=1012mm
13	Boiler Weight(kg)	1214
14	Chimney	250mmx15.5m
15	Main steam valve	DN40MM

steam boiler 300 kg 500kg Include boiler auxiliaries as followed

1. Forced draft fan

3. Valves & Instruments

4. Steam header

5. Chimney

6. Water feeding Pump

Quality Assurance

We Yuanda Boiler is a more than 50years old factory with B-grade qualification for boiler manufacturing and D-grade qualification for pressure vessel manufacturing.

Warranty

One-year warranty and full-life services with many considerate policies

Chain grate stoker Coal fired boiler spare parts service:

A full range of original equipment spare parts are immediately available for all Yuanda boilers

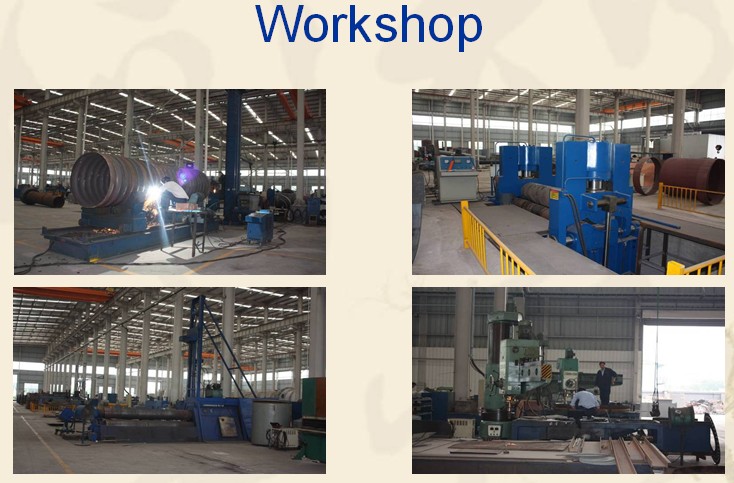

Workshop

Company Information

About Yuanda Boiler

- Established in 1956 year

- State Certificated Boiler Manufacturer

- China Industrial Boiler Association Member

- China Welding Association Member

- China Honoring & Credible Enterprise

- ISO9001-2000 Quality Management System.

So far,we sell to lots of countries and regions, such as Pakistan, India, Sri Lanka in South Asia, Philippine, Indonisia, Malaysia, Thailand, Vietnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Afica, Russia, Ukraine in Eruope and Mexico, Chile in South America.
