Brand Name: Yongda
Model Number: IGBT 200KW
Place of Origin: Henan, China (Mainland)

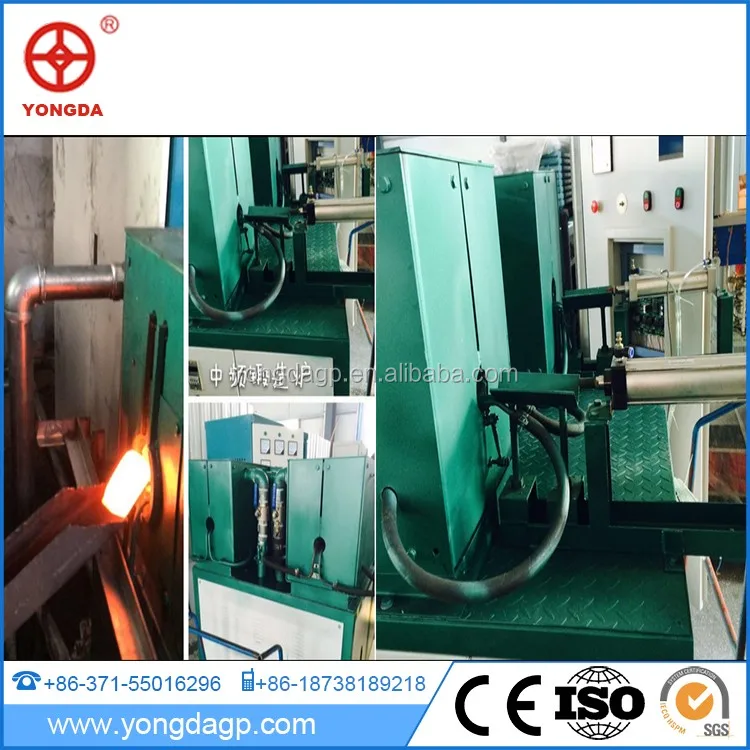

Best price high quality induction forging steel bar machine
Model |
Input voltage |
Output power |
Oscillation frequency (KHZ) |
Cooling water amount (T/H) |
Cooling water pressure (MPA) |
IGBT100KW /4-10KHZ |
3-380V |
100KW |
4-10KHZ |
3 |
0.2-0.3MPA |
IGBT160KW /4-10KHZ |
3-380V |
160KW |
4-10KHZ |
4 |
0.2-0.3MPA |
IGBT200KW /4-10KHZ |
3-380V |
200KW |
4-10KHZ |
5 |
0.2-0.3MPA |
IGBT250KW /4-10KHZ |
3-380V |
250KW |
4-10KHZ |
6 |
0.2-0.3MPA |
IGBT350KW /4-10KHZ |
3-380V |
350KW |
4-10KHZ |
8 |
0.2-0.3MPA |
IGBT400KW /4-10KHZ |
3-380V |
400KW |
4-10KHZ |
12 |
0.2-0.3MPA |
IGBT500KW /4-10KHZ |
3-380V |
500KW |
4-10KHZ |
15 |
0.2-0.3MPA |
300-600KW new type medium frequency induction heating equipment is based on modern international advanced electric technology theory, adopts Infineon IGBT modules,with strict process technology requirements to produce high-tech products.The product main circuit adopts three-phase bridge rectifier circuit without adjusting voltage, after capacitor filter, half-bridge inverter .main circuit is series resonance,duty cycle adjustable power.
The superiority of the product
1. Power consumption saving:generally saving 10%-20% energy than SCR medium frequency devices.
2. Full protection:over voltage, lack of water,over current,over heating, lack of phase, etc. sound and light alarm system
3. Application range:diameter below 200mm rods tempering, forging,extrusion etc.
Advantages of medium frequency kgps electric furnace
1. Frequency 3 KHZ, can directly output through induction forging steel bar machine
2. Safe and reliable, performance well
3. Full automatic lifting and feeding steel rods, save workers and time ,improve productivity
4. Easy to maintenance, low cost
5. Long life, water cooling circulation system,make machine working for 24 hours continously
6. Equipped with closed cooling tower is better for medium frequency electric furnace working.
7. Infrared thermometer , delivery system has function of pass and reject ,depend on different temperature. (Optional)
Packing:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
FAQ:
What’s your MOQ? |
Any quantity of machine will be accepted. MOQ:1 Set |
Which place your factory is located? |
We are located in Shenqiu County, Zhoukou city, Henan Province ,China |
How far from Beijing? I think it is more closer to Shanghai |
Our factory is near both and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours. |
We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing |
Well, we have many videos show our customer’s machine working scene(Various of applications: forging, hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email.2. Yes, we can provide you factory pictures and machine water connection and control panel details. |
Do you have quality certifications? |
Yes, we got the ISO9001:2000 International quality management system certification in August,2001, |
How do you packing the machines? |
Standard export wooden cases(plywood) Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof |
More questions….? |
Updating… |
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to Research & Development,production of high frequency induction heating machine, medium frequency induction heating equipment,supersonic frequency induction heating machine,induction forging machine, induction hardening machine, adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions. We have international trade office in zhengzhou. East to international airport (CGO), besides, high way, high speed rail,transport is very convenient.
Company products:
Medium frequency induction heating machine IGBT and KGPS SCR
High frequency (Super audio ) induction heating machine
Induction hardening machine, induction forging machine,induction brazing machine, induction annealing furnace,
Electromagnetic induction heating equipment,Induction melting furnace ;
CNC hardening machine tool,Automatic feeding steel rods machine,
Round bar,steel pipe induction hardening and tempering equipment
Concrete pump pipe dedicated quenching machine,Hydraulic cylinder cladding equipment;
Closed cooling tower,etc.
Products applications:
Metal forging,hardening,brazing, annealing, melting,shrink fit, thermal compound,plastic machine screw cylinder heating etc. other fields.
Corporate Culture
Quality goal: Zero annual customer complaint rate
Quality policy: Scientific management, pursuing excellence, elaborate and perfect works.
Quality concept: Product quality and the future of Yongda are controlled by us.We will make every efforts let Yongda quality arrive perfection , based on strict and efficient attitude .
Service concept: Customer is in my heart. What users need, what Yongda provides.We will take real actions to solve problems for customers.
Good faith: The people who are honest will possess real friend. The enterprise that is in good faith will make long-term development.
Innovation: Innovation is the driving force for enterprise development. Without innovation there would be no rapid development for enterprises.
Sincerely welcome customers at home and abroad to visit us and negotiation business !
