Mexico popular steel billet induction forging machine

Applications of induction forging machine

1. Forging, rolling class
1.1 The variety of hot-rolled twist drill.
1.2 standard parts, hot forging fasteners, such as high strength bolts, nuts and so on.
1.3 drill steel, tempering brazing, forging, extrusion heating.

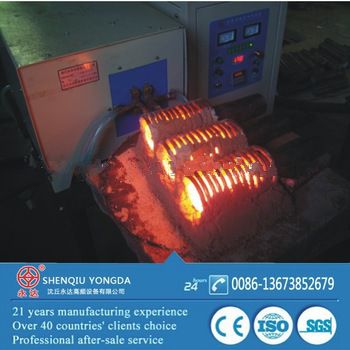

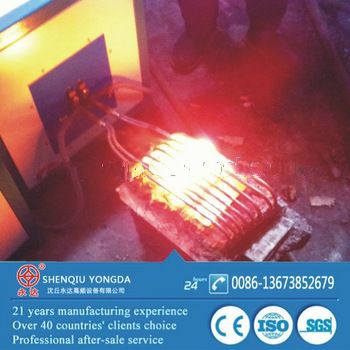

Bolts induction heating for forging

Main technial parameters of WZP-160 induction forging machine

1.Work power: 3 phase 380V+/-10%, 50-60HZ

2. Input voltage: 320V-420V can be changed, depend on your country's electric power

3. Input current: 6-160A

4. Input power: 85-90KW(power adjusted stepless, from 3 KW-90 KW)

5. Oscillation frequency: 10-35 KHZ(customzied,frquency auto tracking)

6.Heating capacity: 4.5kg/minute

7. Cooling water pressure: 0.3 MPA

8.Water temperature protection point: 50 degree celsius.

9. Size of geneartor: 850*600*1330 ;transformer:780*540*520mm
10.Weight: generator 147kgs transformer 108kgs

Advantages of WZP Series high frequency steel billet induction forging machine

Packing induction forging machine:

Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.

Accessories: induction coils,foot switch and installing and operating instructions

Shipping: by sea LCL(less than container load) or by air.

1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City.  We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.

Products applications:
Metal forging,hardening,brazing, annealing, melting,shrink fit, thermal compound,plastic machine screw cylinder heating etc. other fields.
