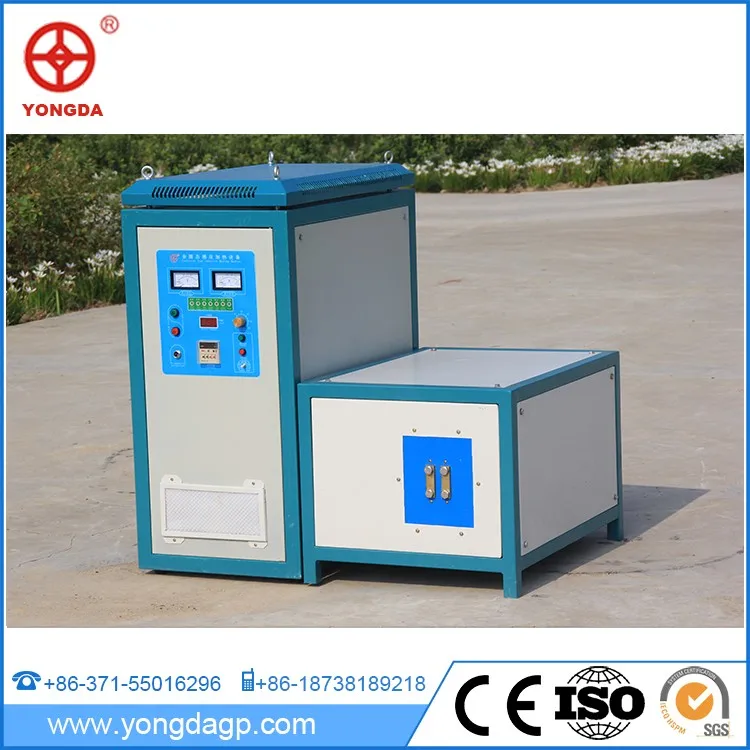

Diameter 20mm steel bar ends or middle heating induction forging machine

Diameter 20mm steel bar ends or middle heating induction forging machine

FOB Price:

US 1540-8900 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

Yongda

Products Model:

WZP-120

Products Details
Company Profile

Quick Details

Brand Name: Yongda

Model Number: WZP-120

Place of Origin: Henan, China (Mainland)
After-sales Service Provided: Engineers available to service machinery overseas
name: steel bar induction forging machine
usage: forging heating steel bar
Input current: 6-120A
Oscillation frequency: 10-50KHZ
Core parts: IGBT modules
Alarm Functions: OV,OC,LW,LP etc. alarm lamps
coils: copper tube ,easy to change
display: working frequency
Time settting: Asia,Australia, America,Europe,Africa
warranty: one year free replacment spare parts

Packaging & Delivery

Packaging Details: 1. Wooden cases(plywood) for packing steel bar induction forging machine 2. Inside filling with plastic foam for water proof and shockproof 3. Transport by sea or by air
Delivery Detail: Shipped in 5 days after payment

Specifications

Diameter 20mm steel bar ends or middle heating induction forging machine

Product Description

Advantages of steel bar induction forging machine

1, small size, light weight, simple installation, easy operation.
2, high efficiency, energy saving is very clear, high-frequency equipment save 60% energy than traditional
3, secure, reliable, non-million-volt high-pressure, very safe for the operator.
4, the frequency bandwidth to meet the different parts of brazing, heat treatment, heating before forging.
5, a unique cooling circulation system, ensure that the equipment 24 hours of continuous work.

Technical parameters of WZP-120 induction forging machine

Model	WZP-120
Work power:	3 phase 380V+/-10%, 50-60HZ
Input voltage:	320V-420V
Input current:	6-120A
Oscillation frequency:	10-50KHZ
Cooling water pressure	0.3 MPA
Size of generator:	665400830mm
Size of transformer	660490435mm
Weight of generator	48kgs
Weight of transformer	66kgs
Accessories	induction coils 2 pieces, foot switch 1 piece water shunt valve 1 piece Water hose (standard configuration) user manual 1 piece

Two sets WZP-120 forging press steel rod two ends

A pplications of heating furnace induction forging:

(1) Round steel categories:
A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod
B. stainless steel tableware, stainless steel bolts and nuts
C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,
D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing
(2) sheet/plate categories:
A. forged stainless steel cutlery, automotive steel plate.
B. sheet folding: folding iron hand jack, metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring
C. embossed: Iron Works embossing, embossing motorcycle brake pedal heating, sanitary ware.
D. Forming: bending, upsetting head, punching, flatten, step by step tight angle iron molding, from nails, rasp, sanitary ware
(3) pipe deformation: pipe heat distortion, fire extinguishers stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching
(4) other categories:
Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains pin, watch cases, railway rail pressure ring.

Packaging & Shipping

Packing for steel bar induction forging machine

Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.

Accessories: induction coils,foot switch and installing and operating instructions

Shipping: by sea LCL(less than container load) or by air.
