Brand Name: Yongda
Model Number: WZP-85KW
Place of Origin: Henan, China (Mainland)
Bulgaria popular 85KW IGBT high frequency induction heating equipment for hardening
Main technial parameters of WZP-85KW high frequency induction heating equipment
| Model | WZP-85 |
| Work power | 3 phase 380V+/-10%, 50-60HZ |
| Input voltage | 320V-420V can be changed, depend on your country's electric power |
| Input current | 6-160A |
| Input power | 6-85KW adjustable stepless |
| Oscillation frequency | 15-30KHZ also can be changed, depend on your work pieces size |
| Size of generator | 665*400*870mm |
| Size of transformer | 6660*490*435mm |
| Weight of generator | 55kgs |
| Weight of transformer | 74kgs |
| Cooling water pressure | 0.3 MPA |
Product Composition:
one induction heating generator and one transformer,
Accessories:
1.Induction heating coils,tailor-made, according to your work piece size.
2.One foot switch for telecontrol.
3.One installing and operating instructions

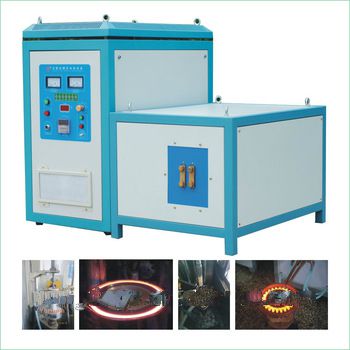

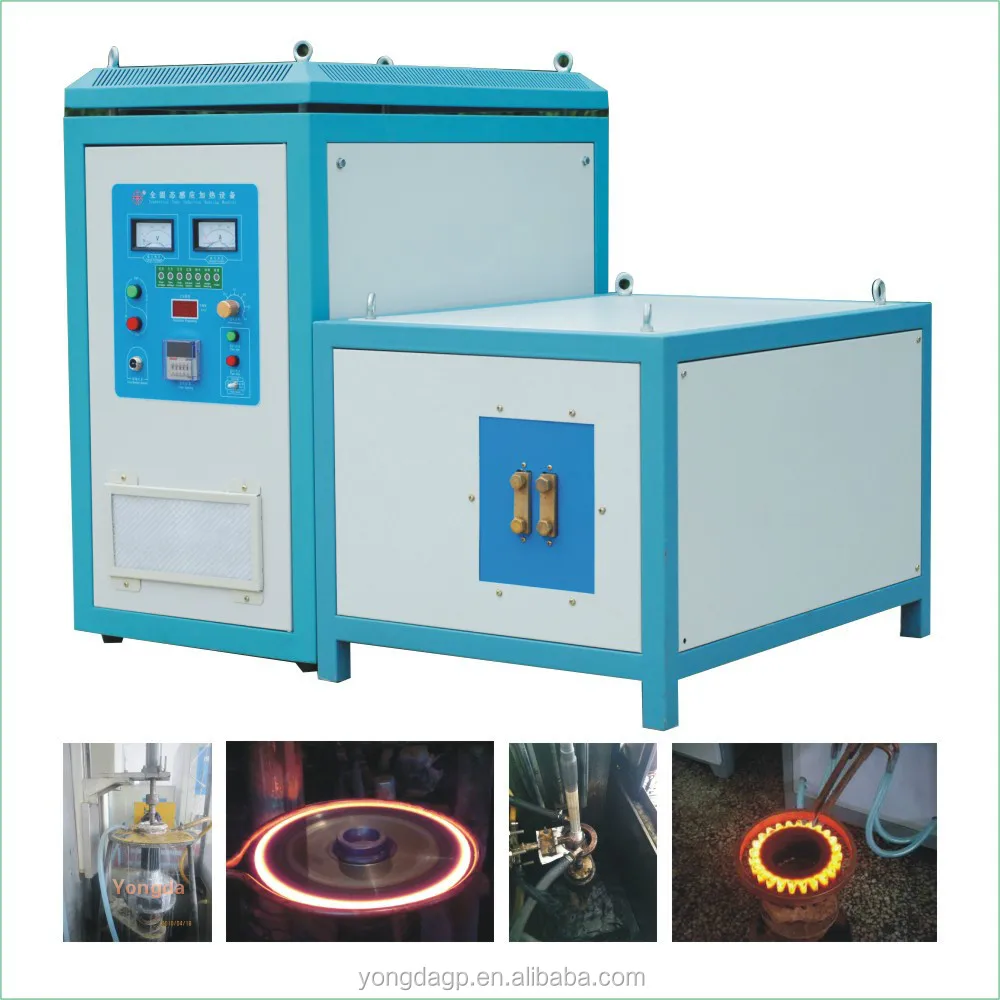

Photo of WZP-85KW High frequency induction heating equipment
1. Hardening for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear (orchard shear).
2.Hardening for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.
3. Various electric tools, such as gear and axes heat treatment.
4. Hardening for machine tools, such as lathe deck and guide rail.
5.Hardening for various hardware metal parts and machined parts, such as shaft, gear (chain wheel), cam, chuck and clamp etc.
6. Hardening for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
High frequency induction heating shaft hardening

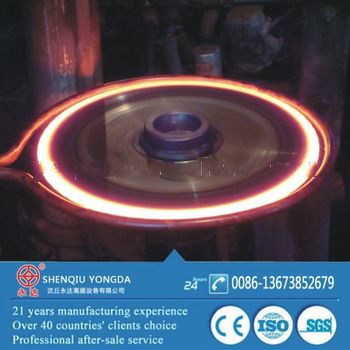

High frequency induction heating gear hardening
Induction coils and work pieces showroom:
All the work piece are brought from our customers, which used shenqiu yongda high frequency induction heating equipment.
Our work shop: debugging machine
Features of high frequency induction heating equipment
1.High efficient:adopts IGBT modules, energy saving, environmental protection
2.Heating fast: The fastest heating speed is less than 1 second
3.Heating wide: can heating variety of metal workpieces(according to different shapes of work pieces, replace removable induction coils)
4.Easy installation :the machine can be used,as soon as connected the power supply, induction coils, water inlet and outlet.
Small size, light weight ,easy to use
5. Simple operation , several minutes to learn.
6. Start fast, pass water and electric power can start heating
7.Low power consumption:can save about 40% energy than tradional HF tube furnace , save degree is relation with shpes of work pieces and induction coils.
8.Good effect: Heating very uniform (by adjusting the density of induction coils, makes every parts of work piece obtain the respective needs of temperature), warming up fast, less oxidation layer, surface got good gloss after heating .
9.Full protection: has over voltage,over current,temperature is over high,lack of water, lack of phase,etc, alarm lamps indicators. can automaticly control and protection the machine itself.
10.Temperature is adjustable, by setting heating time and the infrared thermometer, to control heating temperature of work pieces.Thus control heating temperature to a technology points , Can also increase the insulation function.
11.High security, eliminating the nearly million-Volt high voltage
1. Reply your inquiry within 24 hours
2. Recommend suitable machine model,according to your work piece specifications and heating requirements.
3. Send detailed product parameters, photos and price.
4. Solve all the problem , such as shipping cost, shipping time,delivery time, warranty etc,what you concerned.
5. Reach an agreements, sign proforma invoice or contract.
6. Produce induction heating equipment strictly based on the PI/contract.
7. Arrange goods shipment
8.Tracking goods and help you install and operating machines.
9. Email or Call visit.
10.Provide long-terms technical support.
Packing for high frequency induction heating equipment
1.Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: induction coils,foot switch and installing and operating instructions
3. Packing size: generator 830*500*960 transformer 830*600*550mm
Shipping: by sea LCL(less than container load) or by air.
What’s your MOQ? |
Any quantity of machine will be accepted. MOQ:1 Set |
Which place your factory is located? |
We are located in Shenqiu County, Zhoukou city, Henan Province ,China |
How far from Beijing? I think it is more closer to Shanghai |
Our factory is near both and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours. |
We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing |
Well, we have many videos show our customer’s machine working scene(Various of applications: forging,hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email. 2. Yes, we can provide you factory pictures and machine water connection and control panel details. |
Do you have quality certifications? |
Yes, we got the ISO9001:2000 International quality management system certification in August,2001, |
How do you packing the machines? |
Standard export wooden cases(plywood) Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof |
More questions….? |
Updating… |
Since 1996, over 20 years induction heating technology experience.
induction heating forging, induction heating hardening , induction heating brazing, we are professional manufacturer.To share induction heating achievements with every customer all over the world.
To dear buyer,
In order save time and improve communicate efficiency,please kindly also tell us specifications of your work pieces and heating requirements:such as heating temperature, time requirments(output per hour),local or whole parts heating, application/purpose etc.
So that we will recommend you suitable machine model as soon as possible.
If you know little about induction heating equipment,it doesn't matter,please direct send us inquiry. Let us help you !
Thanks for your reading ! Welcome to contact us !
