IGBT High frequency induction quenching furnace

Features of high frequency quenching furnace

1. constant current or constant power status can be selected accordingly to achieve higher heating efficiency

2. IGBT module and inverting technologies, better performance ,higher reliability and lower maintenance cost

3. multi-display functions, with displays of over current, over voltage, water failure, phase failure and unfit lad and so on, machine can be protected from destroys and machines can be repaired easily

4. 100% duty cycle, continuous working is allowed at maximum power output

5. display of heating power and heating current and oscillating frequency

6. light weight, small size

7. different shape and size of induction coil can be changed easily to heat different parts

8. simple to install, installation can be donne by unprofesstional person very easily, connection water and power can be finished in a few minutes.

9. the separated models are designed to fit the dirty surroundings, the generator can be put in a clean space to increase the reliability; with the small size and light weight of the separated transformer, it is conveient to use in the production line and easily assembled inside the machinery or moved mechanism

10. advantages of the model with timer: the power and the operating time of the heating period and retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability

Technical parameters of WZP-160 high frequency quenching furnace

Applications of high frequency quenching furnace

1. All kinds of gears, sprockets, shaft quenching;

2. a variety of axle, leaf springs, fork, valve, rocker, ball stud and other auto parts quenching

3. All kinds of engine parts, gear parts hardened surface;

4 bed machine tool of machine tool industry guide of quenching (lathe, milling machine, planer, punch, etc.)

5. All kinds of pliers, knives, scissors, axes, hammers and other hand tools quenching

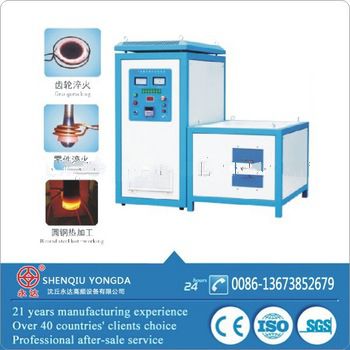

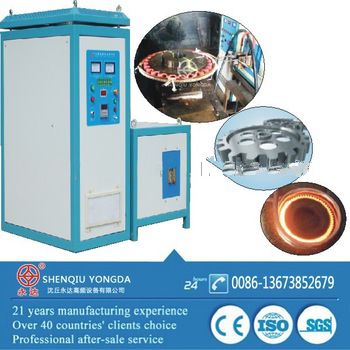

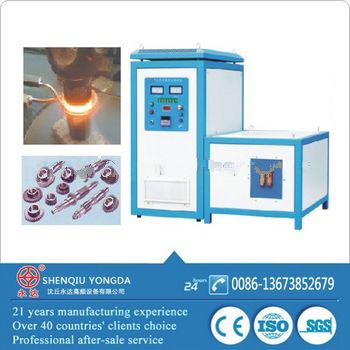

Pictures of high frequency quenching furnace

More applications of induction quenching furnace

Different metal work pieces, our technical person will tailor-made different induction coils .

The material of coils we used good copper tube.We will connect sensor to the machine, test it, make sure it is perfect for this job.

Look! The following all metal work pieces,our machine can processing.

This is our work pieces and induction coils showroom. Include hardening, forging, brazing,shrink fitting, heat coating etc.

My company are in induction heating industrial exhibitions

Product quality certifications:ISO9001-2000
