100KG Steel /Iron induction melting furnace with discharging system by manual or motor

100KG Steel /Iron induction melting furnace with discharging system by manual or motor

FOB Price:

US 5000-21000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

Yongda

Products Model:

WZP-160 KW

Products Details
Company Profile

Quick Details

Brand Name: Yongda

Model Number: WZP-160 KW

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: 1.wooden cases(plywood) for packing induction melting furnace /machine. One for generator, one for transformer. 2.Accessories: inducton coils,foot switch. installing and operating instructions. 3.Send by sea/sea/air/train/courier
Delivery Detail: within 7-10 day after your PO

Specifications

100KG Steel /Iron induction melting furnace with discharging system by manual or motor

Product Details

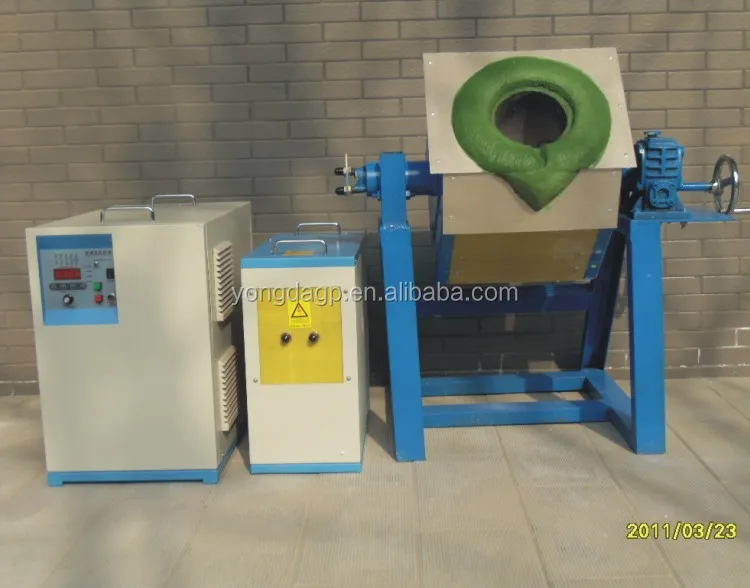

Induction melting furnace

Power supply; Transformer melting pots, manual tilting or driven by motor; Cooling system;

Capacity: 100kg steel /batch

WZP-160 KW Technical parameters

	IGBT Type Power supply 1 piece Transformer 1 piece
Work power:	3 phase 380V+/-10%, 50-60HZ
Input voltage:	320V-420V
Input current:	6-300A
Oscillation frequency:	8-30khz
Cooling water pressure	0.3MPA
Size of generator:	8506001330mm
Size of transformer	780540520mm
Weight of generator	147kgs
Weight of transformer	108kgs
Water cooling temperature protection point	Below 50 degree

Features of IGBT medium frequency induction melting furnace

1, the installation and operation is very convenient, easy to learn;

2, ultra-small size, light weight, portable, covers an area of less than 1 square meter;

3, 24-hour melting capacity;

4, energy saving;

5, to facilitate the replacement of different weights, different materials, different from the stove furnace methods, in order to accommodate various smelting requirements;

6, ultra-small intermediate frequency induction heating power supply, different from the traditional mf power supply

7, heating diathermy good ,temperature uniformity

8, the IF field to the molten metal with a magnetic stirring conducive ingredients evenly and scum

9, according to the recommended equipment and the largest smelting capacity per furnace smelting time is 20-30 minutes.

Our Services

1. Reply your inquiry within 24 hours
2. Recommend suitable machine model,according to your work piece specifications and heating requirements.
3. Send detailed product parameters, photos and price.
4. Solve all the problem , such as shipping cost, shipping time,delivery time, warranty etc,what you concerned.
5. Reach an agreements, sign proforma invoice or contract.
6. Produce induction heating equipment strictly based on the PI/contract.
7. Arrange goods shipment
8.Tracking goods and help you install and operating machines.
9. Email or Call visit.
10.Provide long-terms technical support.
