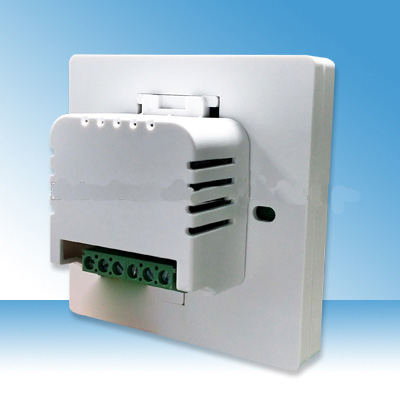

16amp electric heating thermostat

TR3100 Digital room thermostat for under floor heating system.

Electric heating thermostat

> Large LCD display
> Extra slim and compact control panel

> Can switch up to 16 amps,even 30 amps(optional) , (24vac, 230v AC, 120v Ac available)

> Can be either an air only / floor only / Air & Floor

> 7 day programmable (each day can be set different).

> 4 set points per day (2 comfort - 2 economy), or 4 independent setpoints per day

> Manual override and vacation mode
> Frost protection

> Blue back light illumination (white backlight optional)

> Casing available in white, gold,silve,black color

> F / C temperature format can be selected

> 12/24 Hour clock system can be selected

> programmes and settings can be reserved after power break

> 2 year warranty

> equipped with air and floor sensor
> Back light turning on/off time can be set

> Floor temperature limit

> Switching differential setting

> Firmware can be upgraded

> Customizing welcome

Technical Data

Supply voltage: 230vac

Ouput switching capability: 16A resistive

Temp range:5~35 deg C

Floor range: 5-40 deg C

Battery backup: 1x Cr1220 3V

Ambient temp:0~+40 deg C

On/off differential:0.5 deg C

Protective Housing: IP20

Housing material: PC+ABS

Sensor type: NTC(10K ohm)

Approvals: CE

Warranty: 2 years

Dimensions :

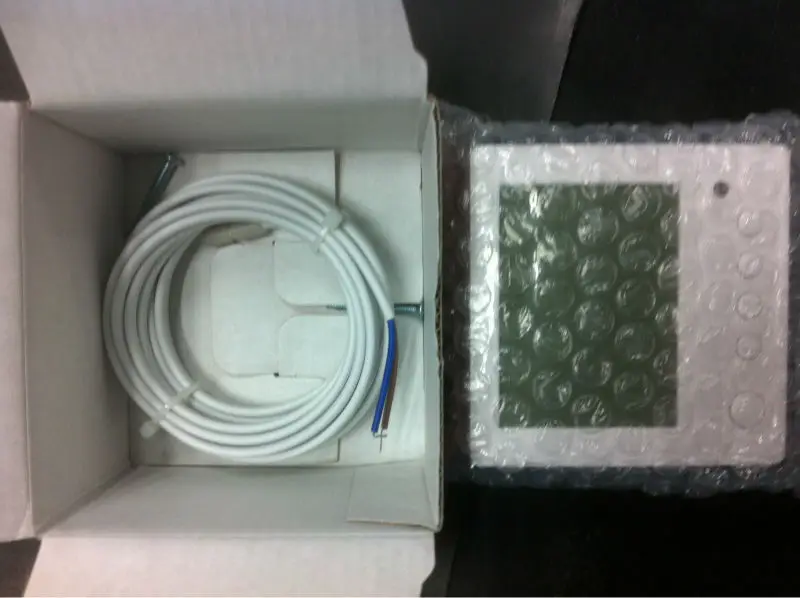

Packing Details

> 1pc/inner box, 100pcs/carton

> Carton size: 55*42*40cm

Wiring Diagram
