Home > Products > Refrigeration Fittings > Refrigeration Valve

NINGBO BLUE BLR/MCV Magnetic Check Valve

FOB Price:

EUR 1-3 / Piece

Min.Order Quantity:

500 Piece

Supply Ability:

10000 Piece per Month

Port:

NINGBO

Place of Origin:

ZHEJINAG

Payment Terms:

L/C, T/T, Western Union

Brand:

BLUE

Products Model:

BLR/MCV

Products Details
Company Profile

Quick Details

Brand Name: BLUE

Model Number: BLR/MCV

Place of Origin: ZHEJINAG

Packaging & Delivery

Packaging Details: netural packing or just as your require
Delivery Detail: 30 days after receiving the deposit

Specifications

NINGBO BLUE BLR/MCV Magnetic Check Valve

BLR/MCV Magnetic Check Valve was designed with magnet diaphragm,and sealed by the metal.It was used on the exhaust pipe of the compressor.For inside,it uses guide device and qutomatic suction design that prevents reverse refrigerant flow in liquid lines and compressor discharge lines.

◆Working temperature range(TS): -40℃ to +130℃

◆Compatible with all CFC,HCFC and HFC refrigerants and oils

◆Flexible for installation in vertical or horizontal position

◆Hermetically formed solid copper body assures zero leak potential.

◆Minimum current resistance,large flow rate.

◆Small volume,light weight and can be installed in any position

◆Mesh in the valve body,it's not just a check valve,but also a filter.

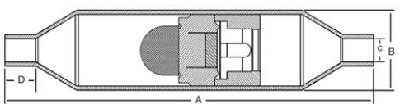

Model	Connection		A		B		D		Weight（kg）	MWP (Bar)
Model	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Weight（kg）	MWP (Bar)
BLR/MCV-4	1/4	6	4.02	102	0.88	22	0.34	9	0.09	55
BLR/MCV-6	3/8	10	4.02	102	0.88	22	0.34	9	0.09	55
BLR/MCV-8	1/2	13	5.18	131	1.13	29	0.41	10	0.16	48
BLR/MCV-10	5/8	16	5.18	131	1.13	29	0.53	13	0.16	48
BLR/MCV-12	3/4	19	7.04	179	1.63	41	0.65	17	0.4	48
BLR/MCV-14	7/8	22	7.04	179	1.63	41	0.78	20	0.27	48
BLR/MCV-18	1 1/8	29	8.43	214	2.13	54	0.94	24	0.73	48
BLR/MCV-22	1 3/8	35	9.41	239	2.63	67	1.00	25	1.24	48
BLR/MCV-26	1 5/8	41	10.55	268	3.13	79	1.12	28	1.77	48
BLR/MCV-34	2 1/8	54	12.06	306	3.63	92	1.37	35	2.72	48
BLR/MCV-42	2 5/8	67	13.05	331	4.13	105	1.5	38	3.18	48
BLR/MCV-50	3 1/8	79	13.05	331	4.13	105	1.69	43	3.37	45
