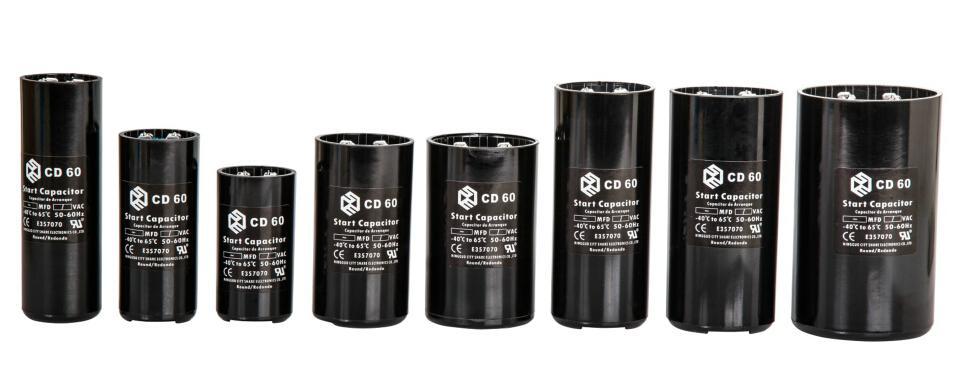

Motor Start capacitor CD60 Basic Type UL Quality Guarantee-1 Motor Start capacitor CD60 Basic Type UL Quality Guarantee-1 Motor Start capacitor CD60 Basic Type UL Quality Guarantee-1 Motor Start capacitor CD60 Basic Type UL Quality Guarantee-1

Motor Start capacitor CD60 Basic Type UL Quality Guarantee-1

FOB Price:
USD 0.5-3.0 / Unit
Min.Order Quantity:
300 Unit
Supply Ability:
6000 Unit per Day
Port:
SHANGHAI
Place of Origin:
China
Payment Terms:
L/C, D/P, T/T, PayPal
Brand:
Share
Products Model:
CD60
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Share

    Model Number: CD60

    Place of Origin: China

Packaging & Delivery

  • Packaging Details: CARTON
  • Delivery Detail: 15 Days

Specifications

 Product Brief Introduction  :

CD60B-1 TYPE ALUMINUM ELECTROLYTIC CAPACITOR IS MADE ACCORDING TO AMERICAN ANSI / EIA – 463-A STANDARD, A NEW DEVICE DEVELOPED,BAKELITE CASE, HIGH CLASS INSULATING, HIGH STRENGTH, UNEASY BROKEN AND GOOD SEALED. THIS DEVICE IS OF THE GOOD PERFORMANCE, EASILY FOR USE, RELIABLE AND LONG IN SERVICE LIFE AS WELL AS THE HIGH AND STABLE QUALITY. CD60B-1 TYPE ALUMINUM ELECTROLYTIC CAPACITOR IS SUITABLE FOR USE IN SINGLE PHASE AC MOTORS WITH FREQUENCY OF 50Hz - 60Hz, VOLTAGE 110VAC – 330VAC TO GET HIGH ROTARY TORQUE AT LOW STARTING CURRENT AND ALSO BE WIDELY FOR USE IN THE HIGH-TECH TERRITORY.

Basic Type,Standard Dimension Product.

 Main Technical Data  :



Environment Temperature

-40~+65℃

Rated Voltage(UR)

110~330VAC

Capacitance Range(CR)

21~1536μF

Capacitance Tolerance

0~+20%

Dissipation Factor(tg δ)

Tg δ< 0.10 tg δ< 0.15 (20℃,100Hz)



Load Life

According to the difference working voltage and

capacitance,alternation 0.5 – 4 minute turn on 1 time for second, 12500 ~ 50000 times.

According to the ANSI/ EIA-463-A standard.

Surge Voltage between lugs

Applying 1.25 times rated voltage for 2 seconds

Surge Voltage between lugs and case

2000VAC 10 seconds non-broken down

Overall And Installation Dimension  :

1-12-1



D

36.50 mm

46.02 mm

52.37 mm

65.50 mm

L

65.85-111.12 mm

85.72-111.12 mm

85.72-111.12 mm

111.12 mm

F

12.70 mm

15.88 mm

22.22 mm

22.22 mm

H max

1.50 mm

1.50 mm

1.50 mm

1.50 mm

Nominal Capacitance,Rated Voltage And Case Size Table   :

Case

Size(#)

Dimension

D*L(mm)

Dimension

D*L(in)

Case

Size(#)

Dimension

D*L(mm)

Dimension

D*L(in)

1

36.50*69.85

1.437*2.750

5

46.02*111.12

1.812*4.365

2

36.50*85.72

1.437*3.365

6

52.37*85.72

2.062*3.365

3

36.50*111.12

1.437*4.365

7

52.37*111.12

2.062*4.365

4

46.02*85.72

1.812*3.365

8

65.50*111.12

2.562*4.365



VOLTAGE

110

125

165

220

250

330

CAPACITANCE

CASE SIZE

CASE SIZE

CASE SIZE

CASE SIZE

CASE SIZE

CASE SIZE

21-25

1

1

1

1

1

1

25-30

1

1

1

1

1

1

30-36

1

1

1

1

1

1

36-43

1

1

1

1

1

1

43-52

1

1

1

1

1

2

47-56

1

1

1

1

1

2

53-64

1

1

1

1

1

2

64-77

1

1

1

1

1

2

72-86

1

1

1

1

1

2

88-106

1

1

1

1

2

2

108-130

1

1

1

1

2

4

130-156

1

1

1

2

2

4

145-175

1

1

1

2

2

4

161-193

1

1

1

2

4

4

189-227

1

1

1

2

4

4

216-259

1

1

1

2

4

4

233-280

1

1

2

4

4

5

243-292

1

1

2

4

4

5

270-324

1

1

2

4

5

7

324-389

1

1

4

4

5

8

340-389

1

2

4

4

5

8

378-454

1

2

4

5

5

400-480

1

2

4

5

7

430-516

2

4

4

5

7

460-552

2

4

4

5

7

540-648

2

4

4

7

8

590-708

4

4

5

7

8

708-850

4

4

5

8

829-995

4

5

5

8

1000-1200

4

5

7

1020-1224

5

5

7

1175-1410

5

5

8
