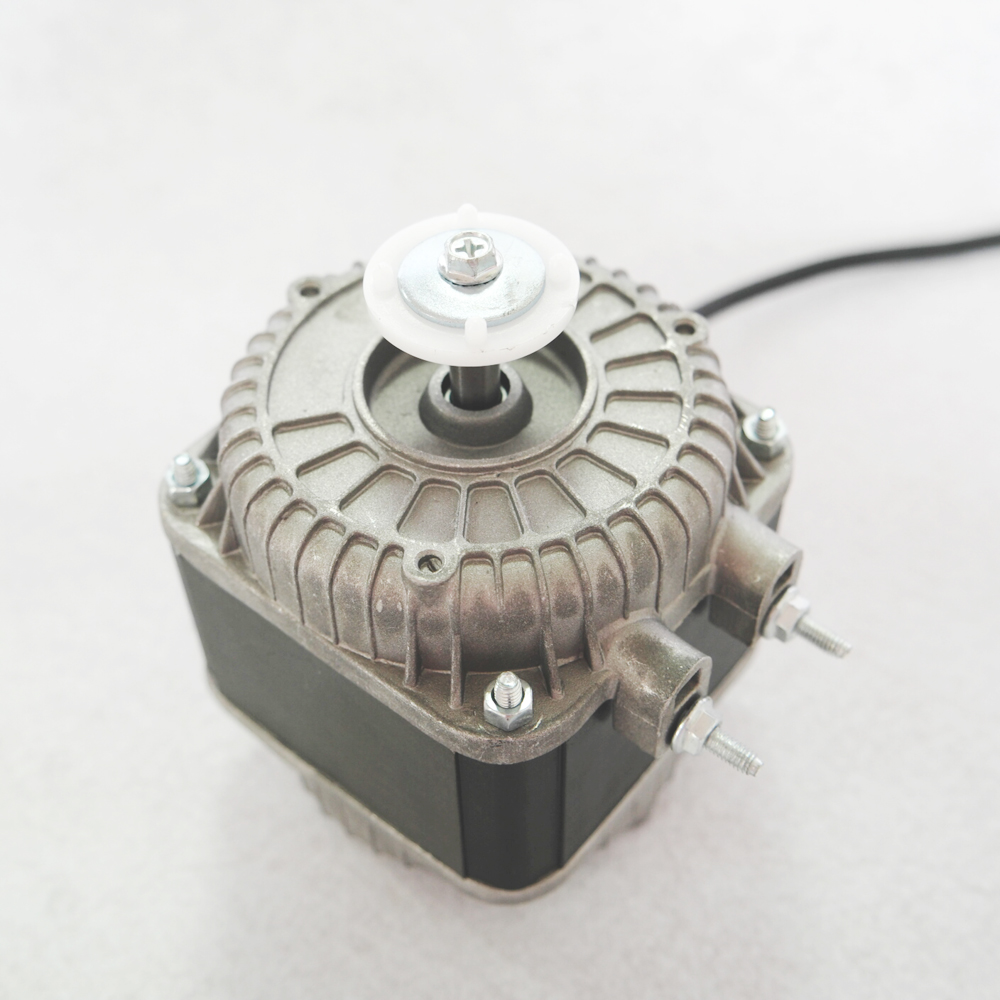

shaded pole motor with factory price

YZF series motors are shaded pole motors with single phase, 4 shaded poles and running at rated voltage of 220~240v, 50~50Hz or 110~120v, 60Hz. They are widely used in the radiator, evaporator and other refrigeration equipments.

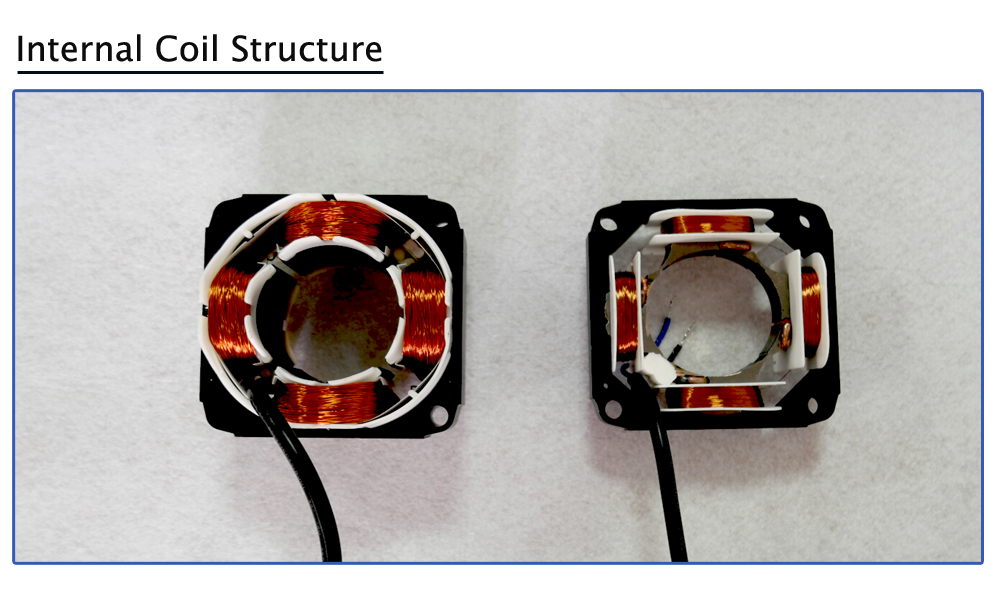

COPPER COIL

Bearig Selection:

           1, Ball bearing.

           2, Sleeve Bearing.

                    Ball bearing              Oil Bearing

The oil bearing used the oil is PERMAWICK # 284 which is imported from America.A motor with this bearing has low noise and long working life that is over 20000 hours.And it's applicable temperature is from -40oC to +100oC.

The ball bearing with advanced construction,this high quality bearing gives the motor high energy efficiency,great performance,low noise and a lond working life of 30000 hours.Its applicable temperature is from -40oC to +100oC.

 Because our standard motor adopt sleeve bearing, we suggest installing these motors horizontally, on request motors can be furnished with ball bearings.

Choose a external shape as your need .

Package Detail

Quantity: 24 PCS / 12 PCS

Net Weight:19KGS

Gross Weight: 20KGS

Dimension: 45 * 34* 23 cm

About Our Company

Hangzhou Fengyin Motor Co., Ltd, Established in 2009, located in Hangzhou City which is a southeastern city of P. R. China., the provincial capital of Zhejiang.

In order to we could offer high performance products to serve the relative markets and meet our clients requirements& demanding, we always focus in our products including shaded pole motors, axiel fan motors and high efficiency motors which are widely applied to refrigeration, air-conditioning and ventilation fields .

The products we have with the features of  high quality and stable performance rely on our high-qualified staffs, highly strict manufacturing process and quality inspection. The relative requirements of certificates standard like CE, VDE, CCC and UL, we also can upto as well. The humanized and passionate enterprise cultural, “Make perfection more perfect”, always is the principle we obey and it makes us much better.

We always and would insist on providing competitive -price products with high quality, in-time and heart-touched service for our clients in the world, and striving to be one of the best leaders in the field in order to have our world and future much better.
