Brand Name: BOYARD
Model Number: HQHD
Place of Origin: Zhejiang, China (Mainland)
Product Photo:
Description&Features:
Boyard commercial deep freezer for cold storage chiller compressor supplier from china for mini showcase chest freezer showcase
CE Machines Machine with Water Cooler unit for Outdoor ice chest unit
Commercial refrigeration parts of air cooler unit for industrial freezer room for sea food & frozen chicken
High quality high production Block ice machine heat exchangers/solar condenser and evaporators cold room freezer with unit
Refrigerator freezer unit for Haagendaz Batch freezers Hard Ice Cream Maker
Commercial cube ice machine with cabinet incubators unit and fridge compressor
Display refrigerator parts of unit for Deep freezers Copeland or Tecumseh type condenser system
Small refrigeration Unit for mini truck Refrigeration units Truck refrigeration units
Hot selling Air Cooled Condensing Unit for cooling tank chiller Wind generator cooling system
Industrial freezing chiller unit for serve food case convenience case sea water icemaker cold storage

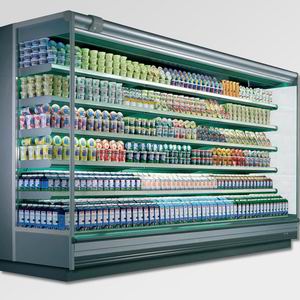

Industrial chiller cabinet unit for Plug-in Cabinets Supermarket Cabinets display and storage cabinets Speciality display cabine
Machinery of Refrigeration & Heat Exchange Parts with Refrigeration condensing unit:
1. The refrigeration condensing unit is 10%-15% higher than that of reciprocating piston compressors with comparable discharge capacity.
2. The vertical rotary compressor lets refrigeration condensing unit more compact.
3. The freezing unit with Liquid Injection Cooling which can reduce compressor temp.
4.The refrigeration equipment can work high-temprature.
5. The height of the cooling device is less than 27cm.
6. The refrigerant of the unit is R404a.Evaporating temp is from -5 degree to -40 degree.
7,the refrigerating device work voltage is 187V~240v,the protective parts enable the air cooled condensing unit more reliable.

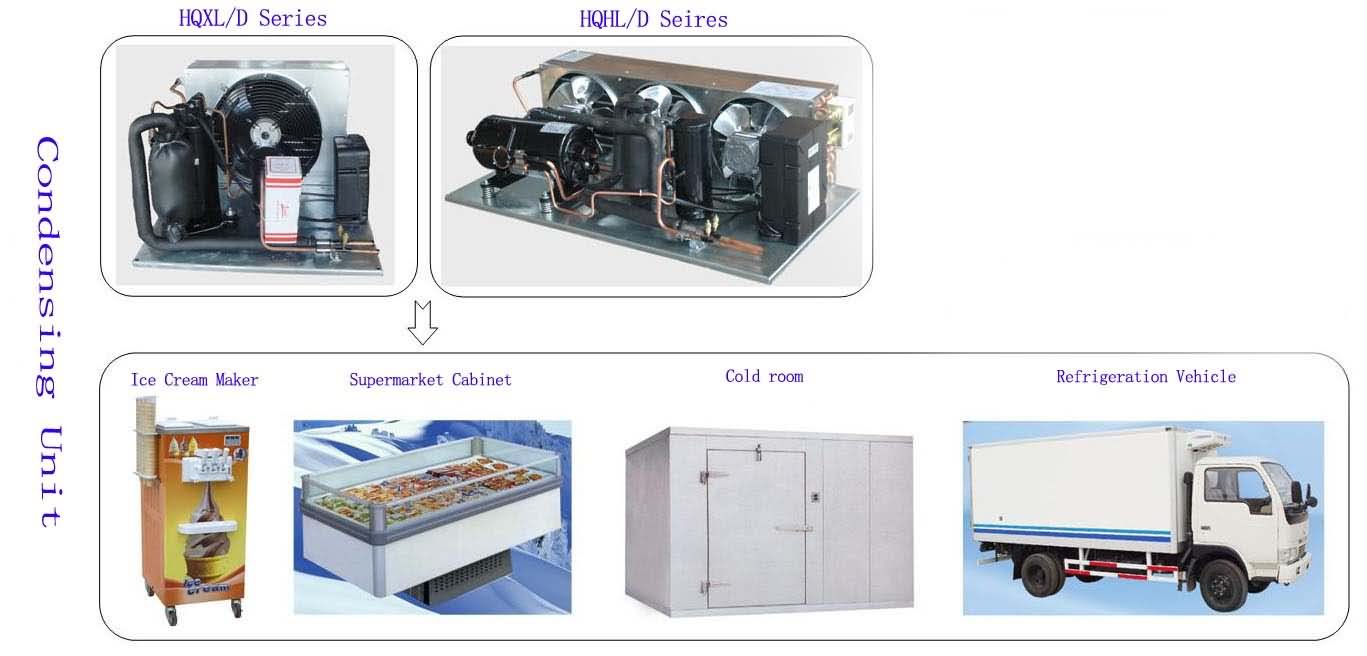

the refrigeration condensing unit Can be Used in small cold rooms, kitchen equipment,refrigerated cabinet, commercial freezing coldstorage,milk cooling tank,refrigerated equip,hotel and so on.
Technical Parameters
| HQHD (R404A) CONDENSING UNITS PERFORMANCE PARAMETERS | ||||||||
| MODEL | HQHD-13K | HQHD-16K | HQHD-23K | HQHD-30K | HQHD-36K | HQHD-41K | ||
| NOMINAL INPUT(W) | 720 | 900 | 1280 | 1500 | 1730 | 2030 | ||
| POWER SUPPLY | SINGLE PHASE: 220V-240V/50Hz | |||||||
| REFRIGERANT MAX.(KG) | R404A(1.2) | R404A(1.5) | R404A(2.0) | R404A(3.0) | R404A(3.0) | R404A(3.5) | ||
| START-UP CURRENT (A) | 20 | 27 | 38 | 42 | 50 | 57 | ||
| MAX. RUNNING CURRENT (A) | 4.0 | 5.0 | 7.0 | 8.5 | 10.0 | 11.5 | ||
| EVAP. TEMP. RANGE (°C) | -40~0 | |||||||
| AMBIENT TEMP. (°C) | -7~43 | |||||||
| COMPRESSOR (MODEL) | QHD-13K | QHD-16K | QHD-23K | QHD-30K | QHD-36K | QHD-41K | ||
| CONDENSER | STYLE | 4 Row 4 Hole | 4 Row 5 Hole | 4 Row 5Hole | 4 Row 5 Hole | 4 Row 5 Hole | 5 Row 5 Hole | |
| FAN MOTOR | DIAMETER QTY(mm) | Φ230*2 (10W*2) | Φ230*2 (16W*2) | Φ230*2 (16W*2) | Φ230*3 (16W*3) | Φ230*3 (16W*3) | Φ230*4 (16W*4) | |
| AIR FLOW (m3/hr) | 680*2 | 820*2 | 820*2 | 820*3 | 820*3 | 820*4 | ||
| PIPE (mm) | GAS INLET DIAM | Φ12.7(1/2") | Φ15.88(5/8") | |||||
| LIQUID OUTLET | Φ9.53(3/8″) | |||||||
| OUT DIMENSION | LENGTH (mm) | 640 | 680 | 790 | 940 | 1145 | 1230 | |
| WIDTH (mm) | 485 | 485 | 520 | 520 | 520 | 520 | ||
| HEIGHT (mm) | 275 | 275 | 275 | 275 | 275 | 275 | ||
| WEIGHT(Kg) | 34 | 35 | 41.3 | 50.5 | 52.8 | 59.7 | ||
| REFRIGERATION CAPACITY | EVAP. TEMP.(°C) | REFRIGERATION CAPACITY: W(Kcal/h) CONDENSING TEMP.:45°C AMBIENT TEMP.:32°C | ||||||
| -40 | 504(433) | 630(542) | 850(731) | 1200(1032) | 1250(1075) | 1423(1224) | ||
| -35 | 654(562) | 820(705) | 1104(949) | 1506(1295) | 1604(1379) | 1828(1572) | ||
| -30 | 807(694) | 950(817) | 1240(1066) | 1803(1551) | 2030(1746) | 2314(1990) | ||
| -25 | 975(839) | 1203(1035) | 1565(1346) | 2200(1892) | 2560(2202) | 2918(2509) | ||
| -20 | 1190(1023) | 1430(1230) | 1890(1625) | 2604(2239) | 3050(2623) | 3480(2993) | ||
| -15 | 1430(1230) | 1705(1466) | 2130(1832) | 2950(2537) | 3500(3010) | 3990(3431) | ||
| -10 | 1790(1539) | 2050(1763) | 2460(2116) | 3560(3062) | 4230(3638) | 4822(4147) | ||
| -5 | 2130(1830) | 2340(2012) | 2827(2431) | 3911(3363) | 5000(4300) | 5720(4919) | ||
| WIRING CAPACITY | LEAKAGE PROTECTOR | RATED CURRENT(A) | 10 | 15 | 20 | 20 | 20 | 20 |
| LEAK CURRENT (MA) | 30 | 30 | 30 | 30 | 30 | 30 | ||
| DIAMETER (mm²) | IN 10m | 2.0 | 2.0 | 2.0 | 4.0 | 4.0 | 4.0 | |
| IN 20m | 2.0 | 2.5 | 2.5 | 6.0 | 6.0 | 6.0 | ||
| IN 30m | 2.0 | 2.5 | 2.5 | 6.0 | 6.0 | 6.0 | ||
The Developing of Medium&Low Condensing unit
