Truck Air Conditioner GC 03 3 5KW

FOB Price:

US 500-1000 / Unit

Min.Order Quantity:

5 Unit/Units

Supply Ability:

1000 Unit/Units per Month

Port:

Shanghai / Qingdao / Tianjin

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

GUCHEN

Products Model:

GC-03

Products Details
Company Profile

Quick Details

Brand Name: GUCHEN

Model Number: GC-03

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Packaged in carton box.
Delivery Detail: Generally within 10 days after received the payment

Specifications

1. Rooftop and compact design
2. Easy installation
3. Low current and noise
4. More cooling capacity up to 3.5KW

1. Features

a) Rooftop fashionable style and streamline design

b) Economically efficient, reliable performance

c) Aluminum alloy case and fiberglass epoxy cover

d) Perfect system protection

e) Overhead layout, convenient opening and overhauling

f) Fresh air devices, environmentally friendly refrigerant R134a

g) Digital control systems, world first class brand key parts

h) 3500W cooling capacity for minibus, special vehicles, van and truck

i) Lager cooling capacity and lower power consumption

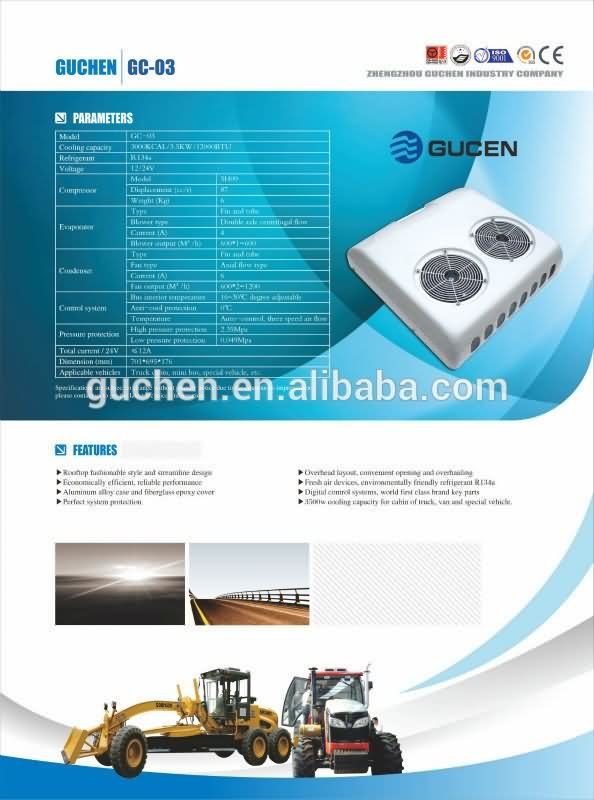

2. minibus and truck GC-03 air conditioning Technical Parameters

Model	GC-03
Cooling capacity	3000KCAL/3.5KW/12000BTU
Voltage	12/24V
Power consumption	≤210W
compressor	Model	5H09
	Displacement(cc/r)	87
	Weight(KG)	6
Evaporator	Type	Fin and tube
	Blower type	Double axle centrifugal flow
	Current(A)	4
	Blower output(m3/h)	*6001=600**
Condenser	Type	Fin and tube
	Fan type	Axial flow type
	Current(A)	6
	Fan output(m3/h)	*6002=1200**
Control system	Cab interior temp	16~30°C degree adjustable
	Anti-cool protection	0°C
	Temperature	Auto-control, three speed air flow
Pressure protection	High	2.35Mpa
Pressure protection	Low	0.049Mpa
Total current/24V	≤12A
Dimension(mm)	*701695176*
HS CODE	84152000

Note: Specifications are subject to change without priority notice due to the continuous improvement, please contact us to get the latest technical informations.
