Rooftop truck air conditioner GC 04 5 2Kw

Rooftop truck air conditioner GC 04 5 2Kw

FOB Price:

US 620-700 / Unit

Min.Order Quantity:

5 Unit/Units

Supply Ability:

50000 Unit/Units per Year

Port:

Tianjin, Shanghai,Guangzhou

Place of Origin:

Henan, China (Mainland)

Payment Terms:

T/T

Brand:

Guchen

Products Model:

GC-04

Products Details
Company Profile

Quick Details

Brand Name: Guchen

Model Number: GC-04

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: In carton, wooden case, or as required.
Delivery Detail: Two weeks after get payment

Specifications

Rooftop truck air conditioner GC-04 5.2Kw
1 Low power consumption
2 4500Kal/h,18000BTU

Product Description

Rooftop mounted truck air conditioner GC-04 5.2Kw

Rooftop truck air conditioner GC-04

GC- 04 rooftop air conditioner system is designed for tractor,truck cabin, construction machines,etc.

with compressor powered by vehicle engine, and with control system powered by vehicle alternator.

Standard Features

1.Manual and automatic control mode, simple operation and easily using.

2.SMC housing with good heating insulation and anti-aging properties.

3.Independent parallel control mode to ensure reliability and durability.

4.Copper tube and hydrophilic aluminum fins optimize the cooling performance

5.Spave saving, low power consumption and superiority in cost-effectiveness.

Technical Data

Model			GC-04
Refrigerant			R134a
Cooling capacity			5200W/4500Kal/18000Btu
Compressor	Model		DY5H14
	Displacement		138cc/r
Evaporator	Model		Cooper tube and fin
	Blower	Model	Double axle centrifugal flow type
		Blower Output(m³/h)	600*1=600
Condenser	Model		Cooper tube and fin
	Fan	Model	Axial flow type
		Blower Output(m³/h)	900*2=1800
Control System	Bus interior temperature		16~30°C can adjust
	Anti-cool protection		0°C
	Temperature		Machinery control,three speed air flow
High pressure protection			2.35Mpa
Low pressure protection			0.049Mpa
Dimensions			760754162
Usage			For Truck cab, Tractor Construction machine,etc.

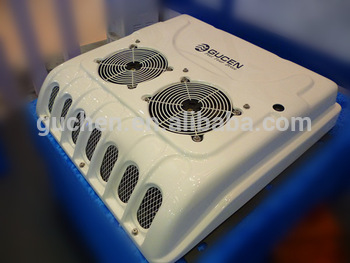

Detailed Images

Rooftop truck air conditioner

Packaging & Shipping

Rooftop truck air conditioner

Warranty

Minibus-A/C Warranty Summary

Shuttle / Transit Bus / TourismCoach:
Shuttle / Transit Bus / TourismCoach:
24 months warranty from in-service date on original vehicle.
27 months warranty from the date of original sale by GUCHEN for vehicles not registered.

Extended Warranty-
One (1) to Two (2) years on any A/C unit. Offer is available upon request.

Replacement-
Six (6) months or the reminder of the original warranty period whichever is longer.
** For full details regarding Guchen Warranty, please refer to the PDF titled GUCHEN Warranty Manual.
