Brand Name: GUCHEN
Model Number: TS1000
Place of Origin: Henan, China (Mainland)

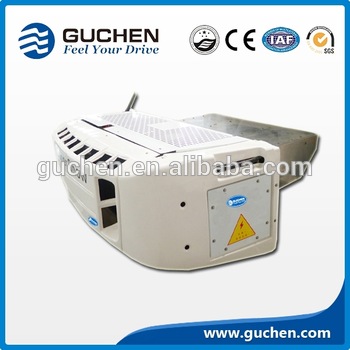

Diesel engine driven refrigeration unit TS1000 for middle trucks
Independent transport refrigeration unit, all in one units, self-contained engine,with standby power.
All the key components are famous brand to assure superior quality.
Leader manufacturer of transport refrigeration units in China.
Key feature:
| 1. Suitable for large truck van | ||||
| 2. Power supply by imported 3 cylinder engine,decreasing the failure rate. | ||||
| 3. With 220V/50hz stand-by power. | ||||
| 4. Connect pipe between evaporator and condenser are very short, easy installation and decreasing leak chance. | ||||
| 5. Axial flow fan,large blowing rate,long life, low noisy | ||||
| 6. Core using internal thread, high efficiency,cooling fast | ||||
| 7. Full function electronic controll, power-on self test, star and stop according to setting temperature,precise temperature control and so on. | ||||
| 8. Two starting mode of the engine and complete date monitoring to ensure the equipment's profer working | ||||
| 9. Automatic conversion between engine mode and stand-by power mode. | ||||
SPECIFICATON:
| Box Interior temp.: | ≥-18℃ | Application range: | 35~55cbm insulation box | |
| Cooling capacity: | 0℃/7925W; -18℃/5165W | Ambient temp. 30℃ | ||
| Refrigerant: | R404a | Compressor: | Bock | |
| Blowing rate: | 2580m³/h | Defrosting: | Automatic hot gas defrosting | |
| Voltage: | DC12 | Manual forced defrosting | ||
| Dimension: | 1923*896*630mm/495kgs | Evaporator cut-out: | 1245*350mm | |
Refrigeration units standard configuration:
| 1. HFC R404a Environmental protection refrigerants. | ||||
| 2. Multi-function operating panel. | ||||
| 3. Ultra-thin evaporator. | ||||
| 4. Hot gas defrosting system. | ||||
| 5. 12V operating voltage. | ||||
| 6. There’s liquid cooling when environmental temperature is too high. to insure compressor. |
Safety guard:
| 1. Emergency switch protection. | ||||
| 2. Thermal protection guard. | ||||
| 3. Refrigeration system high. low voltage protection. | ||||
| 4. Safe installation instruction. can improve the protective of electromagnetic interference. |
Operating and control component
| 1. Micro computer control system. | ||||
| 2. Automatic/ Manual defrost. | ||||
3. Digital display. |
||||
| 4. Fahrenheit or Celsius display set point temperature and return air temperature. | ||||
5. Data set parameters and alarm |
