Electric Compressor

FOB Price:

US 300-500 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

1000 Piece/Pieces per Week

Port:

SHANGHAI

Place of Origin:

China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

BENLING

Products Model:

DM27A1

Products Details
Company Profile

Quick Details

Brand Name: BENLING

Model Number: DM27A1

Place of Origin: China (Mainland)

Packaging & Delivery

Packaging Details: box Electric Compressor
Delivery Detail: --

Specifications

Company sprite: Truth, honest and sincere!!!

DM27A1

DM27A1 27CC 312V DC displacement:18cc rated voltage:312v rotated speed:1800-6000

Electric Compressor

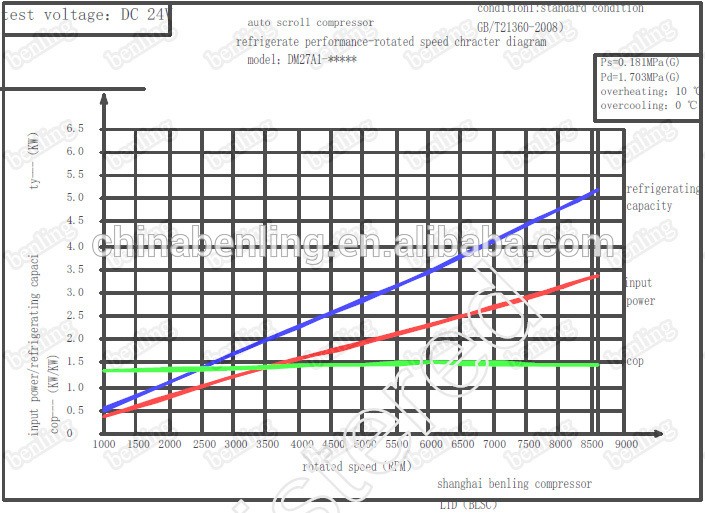

Performance(DM27A1)
refrigerant capacity(3000 rpm)	2.15kw /7300 Btu/hr
input power	1.10 KW
current	3.5A
refrigerant capacity(4000 rpm)	2.90kw /9900 Btu/hr
input power	1.49KW
current	5A
refrigerant capacity(6000 rpm)	4.60kw /15700 Btu/hr
input power	2.30KW
current	7A
test condition	Pd/Ps=1.47/0.196 Mpa(G) SC=5℃ SH=10℃
Usable range
evaporated temperature	-15 °F ~ 70°F
condenser temperature	77 °F ~ 167°F
compression ratio	15.0 MAX
refrigerant	R134a
start temperature	-26 °F ~ 158 °F
working temperature	-26 °F ~ 212 °F
storing temperature	-40 °F ~ 221 °F
Compressor parameter
discharge capacity	27.0 cc/rev
weight	6.3kg
oil charge	120cc PVE oil
refrigerant capacity	700cc
rotated speed rang	1000rpm---8600 rpm
safety valve pressure	4.0 Mpa
cover protection level	IP67
motor coil temperature	248°F MAX
discharge temperature	239°F MAX
Motor parameter
motor type	PMSM (permanent magnet synchronous motor
rated tortue	3.5 Nm
max tortue	6.0 Nm
Drive parameter
max power	3700W
working frequency	15HZ-150HZ
over heating protection	212°F
low voltage protection	230V
over voltage protection	430V
soft hardware overload	yes
control method (common way)	1, pwm 2,gear 3,can 4-----

Please note that COP is different under different test condition!!!
