Home > Products > Automotive Air Conditioning > Compressor

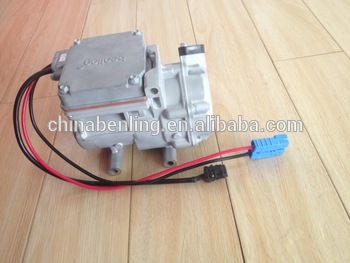

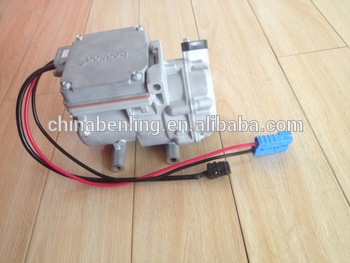

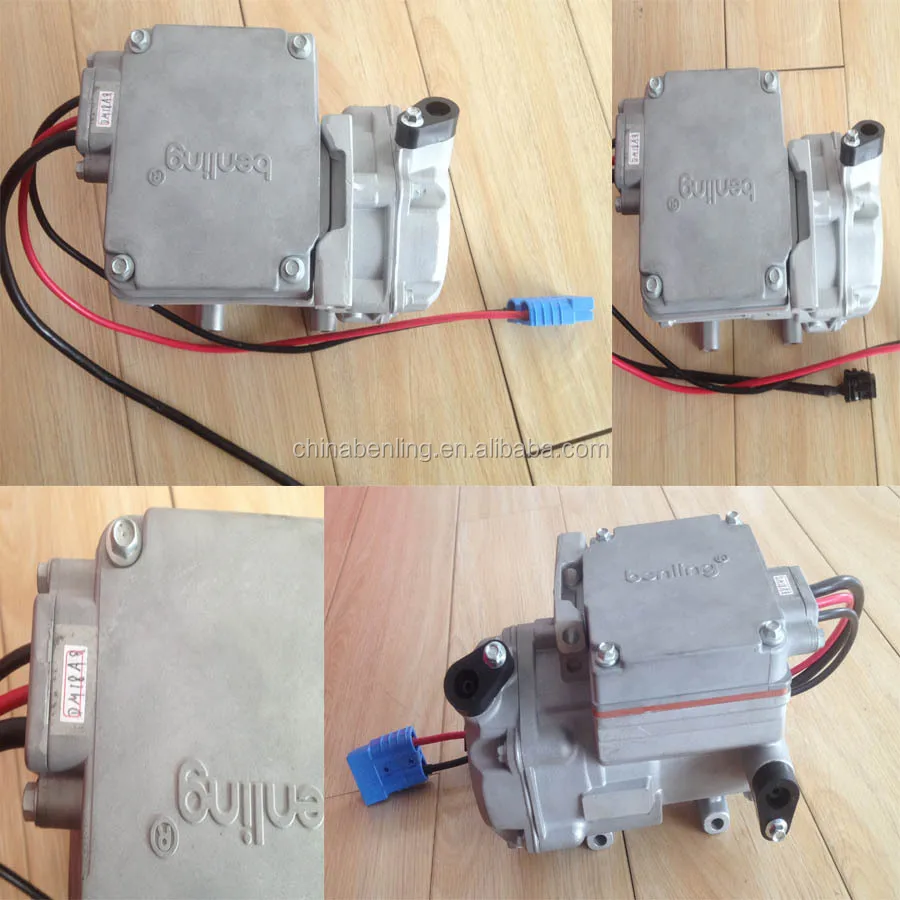

DM18A8 compressor manufacturer 96v

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

100000 Piece/Pieces per Year

Port:

SHANGHAI

Place of Origin:

China (Mainland)

Payment Terms:

T/T

Brand:

BENLING

Products Model:

DM18A8

Products Details
Company Profile

Quick Details

Brand Name: BENLING

Model Number: DM18A8

Place of Origin: China (Mainland)

Packaging & Delivery

Packaging Details: BOX
Delivery Detail: 7days

Specifications

Company sprite: Truth, honest and sincere!!!

DM18A8

DM18A8 18CC 96V DC displacement:18cc rated voltage:96v rotated speed:1800-6000

compressor manufacturer

Performance(DM18A8)
refrigerant capacity(3000 rpm)	1.38kw /4700 Btu/hr
input power	0.74 KW
current	8A
refrigerant capacity(4000 rpm)	1.89kw /6400 Btu/hr
input power	0.98KW
current	10A
refrigerant capacity(6000 rpm)	2.90kw /9900 Btu/hr
input power	1.56KW
current	16A
test condition	Pd/Ps=1.47/0.196 Mpa(G) SC=5℃ SH=10℃
Usable range
evaporated temperature	12 °F ~ 70°F
condenser temperature	77 °F ~ 167°F
compression ratio	8.0 MAX
refrigerant	R134a
start temperature	-26 °F ~ 158 °F
working temperature	-26 °F ~ 212 °F
storing temperature	-40 °F ~ 221 °F
Compressor parameter
discharge capacity	18.0 cc/rev
weight	5.3kg
oil charge	100cc PVE oil
refrigerant capacity	650cc
rotated speed rang	1800rpm---6000 rpm
safety valve pressure	4.0 Mpa
cover protection level	IP67
motor coil temperature	248°F MAX
discharge temperature	239°F MAX
Motor parameter
motor type	PMSM (permanent magnet synchronous motor
rated tortue	2.3 Nm
max tortue	refer to diagram
Drive parameter
max power	2000W
working frequency	30HZ-120HZ
over heating protection	212°F
low voltage protection	78V
over voltage protection	115V
soft hardware overload	yes
control method (common way)	1, pwm 2,gear 3,can 4-----

Please note that COP is different under different test condition!!!
